Features

• Ideal for pantries, closets, laundry rooms and basements
• Automatic ON/Automatic OFF operation
• Controls LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage

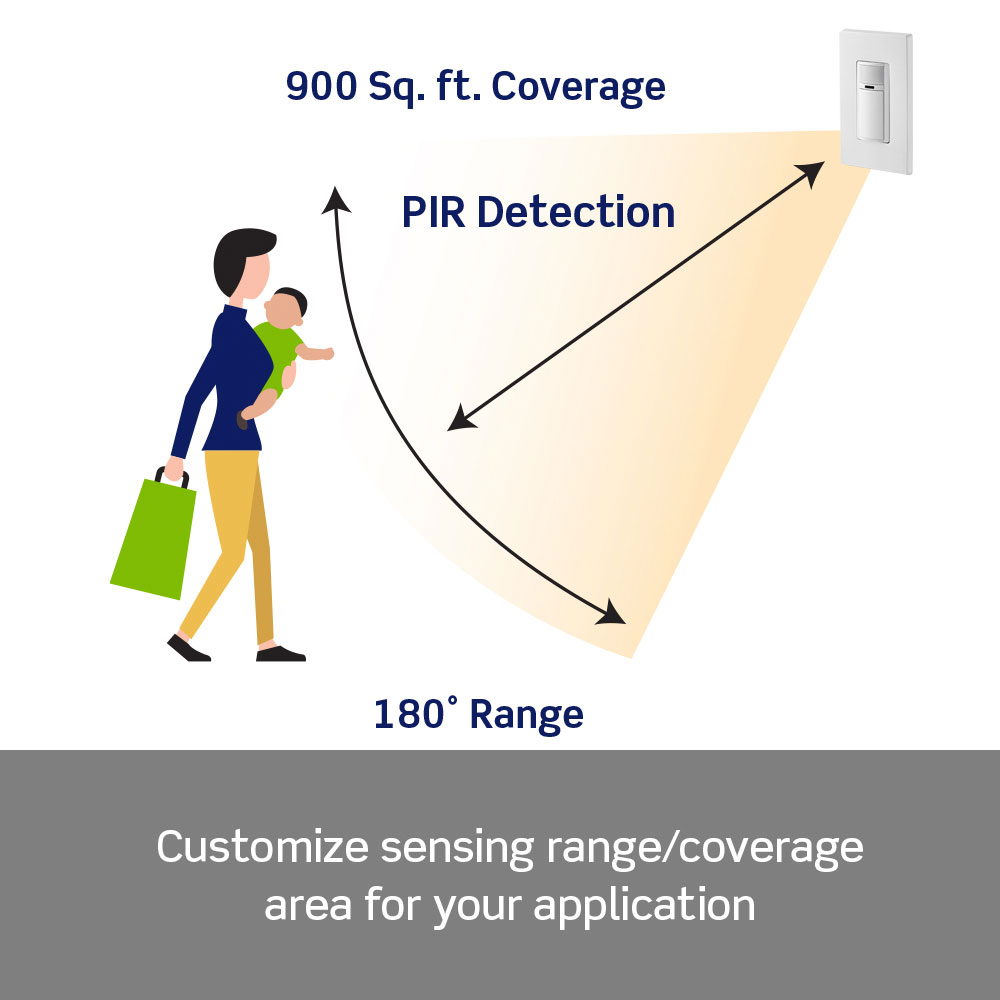

• Provides 180° Field-of-View, 900 sq. ft. of coverage

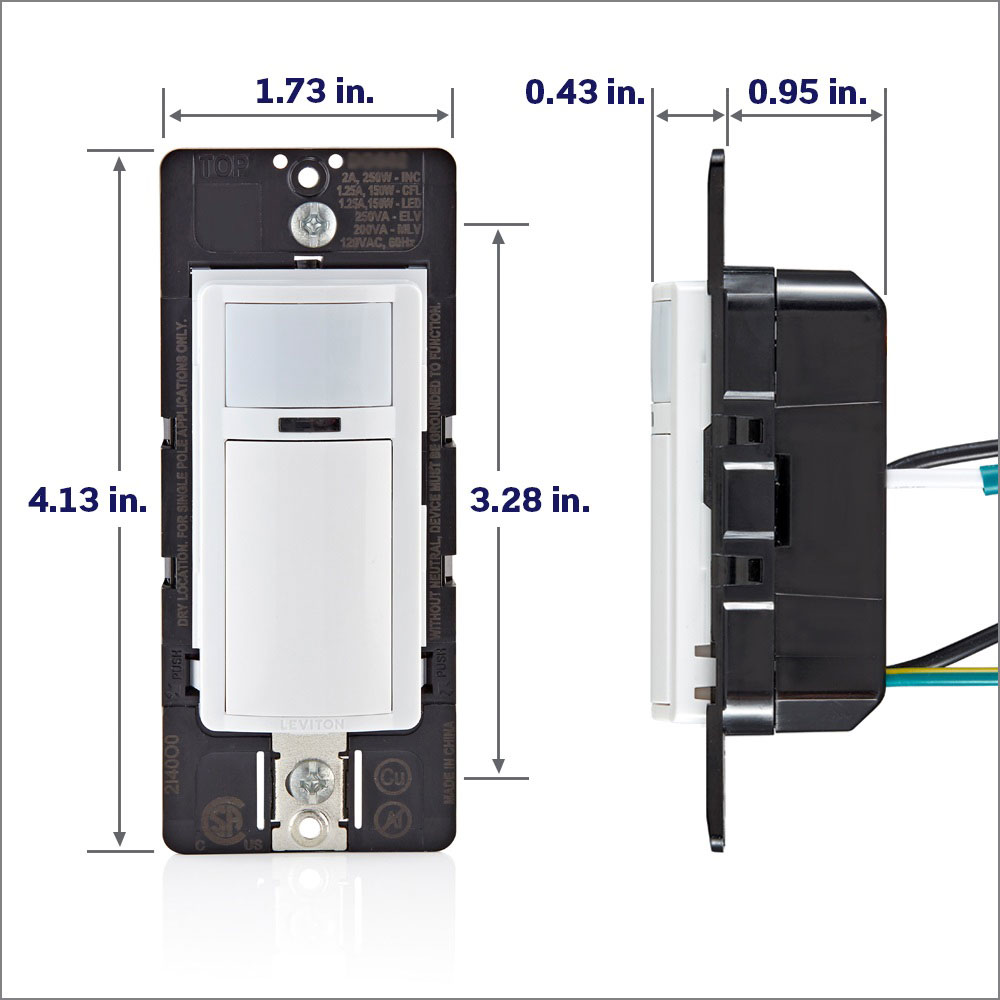

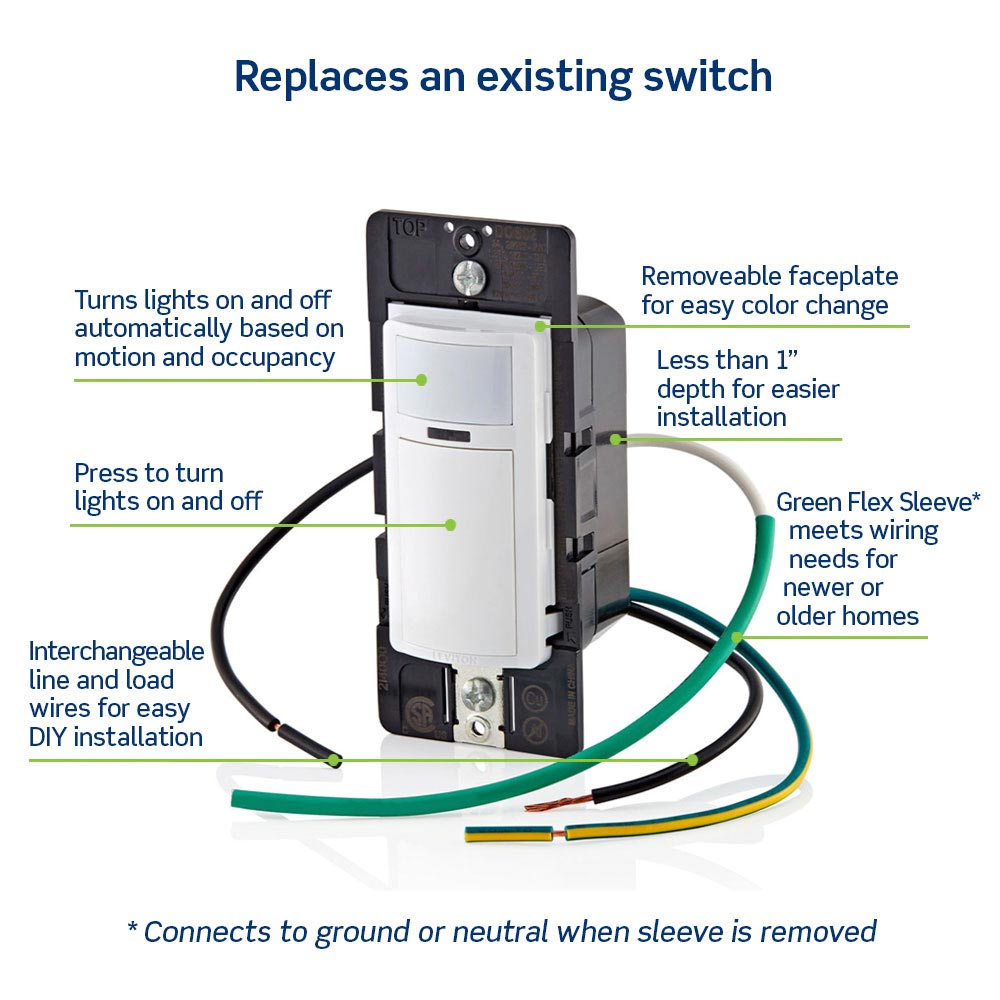

• Shallow design easily fits in the wallbox and can replace a single pole switch

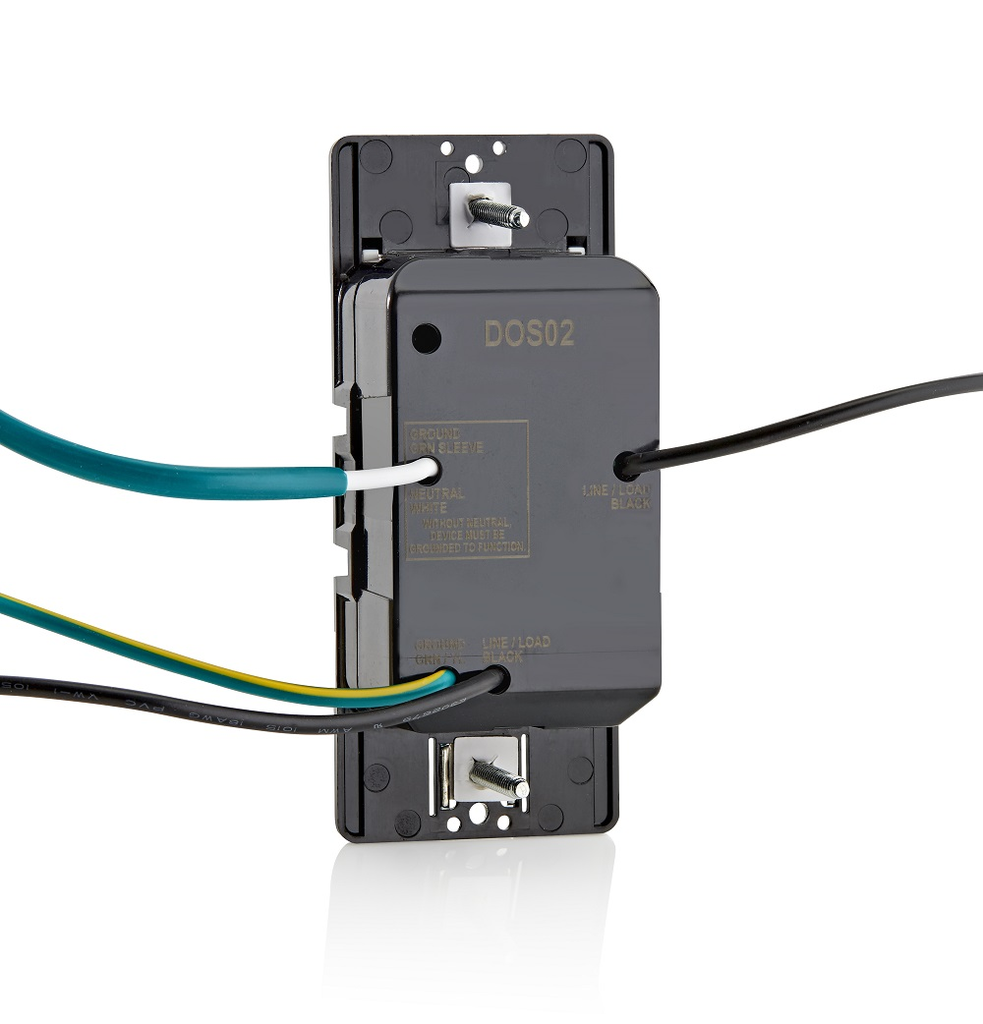

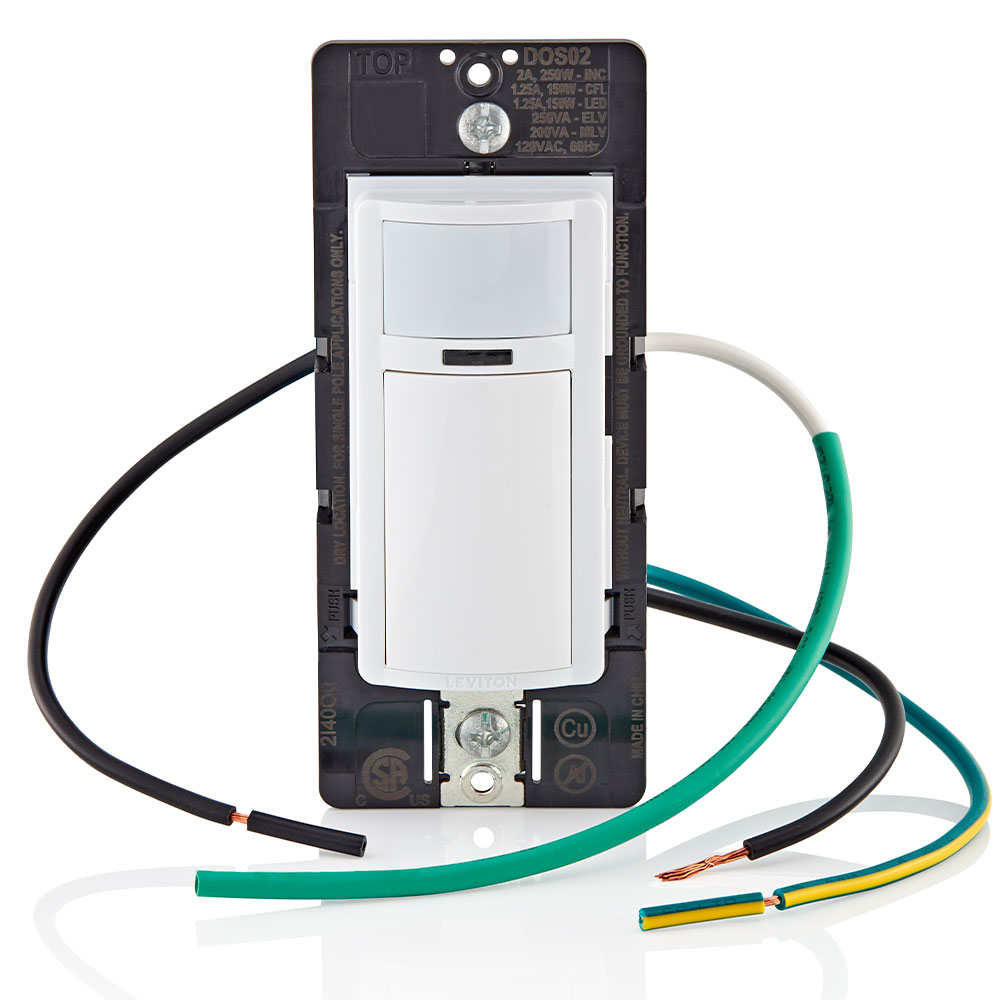

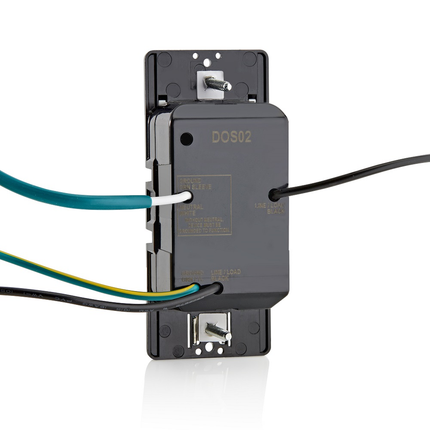

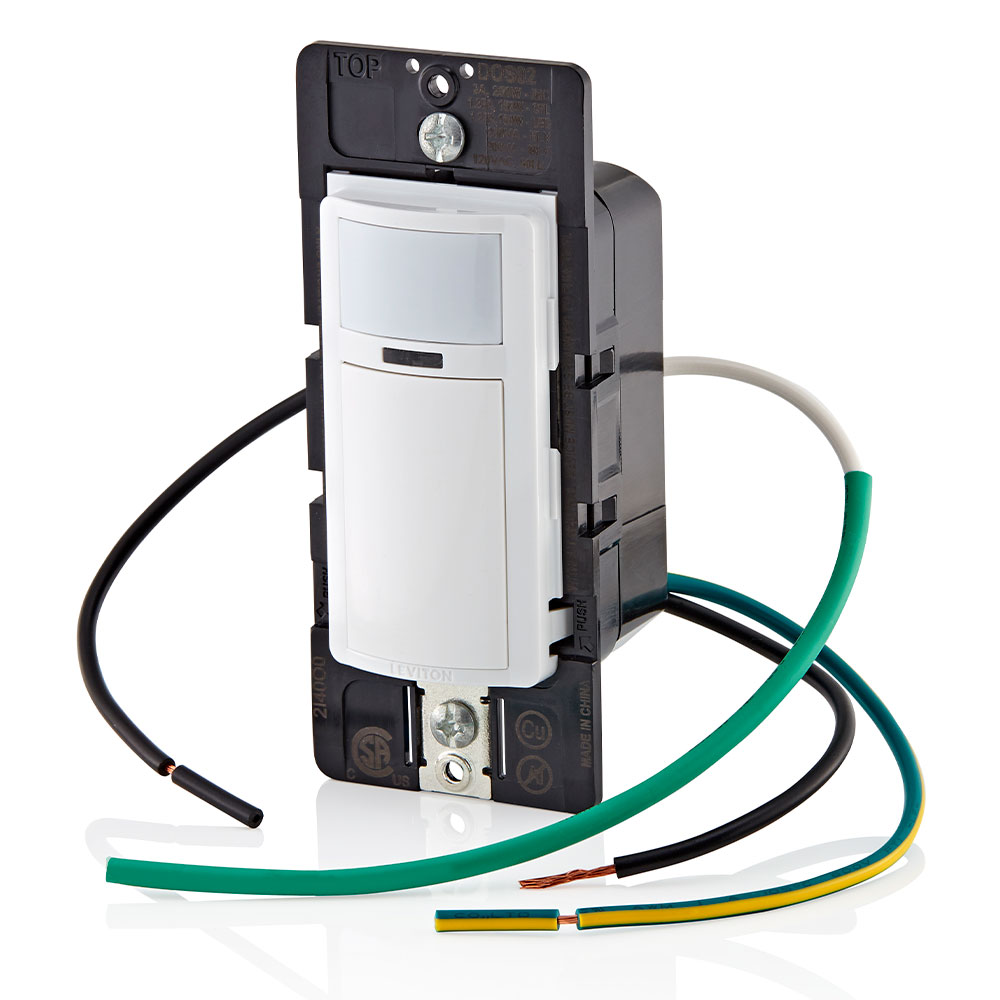

• Leaded terminals for easier installation

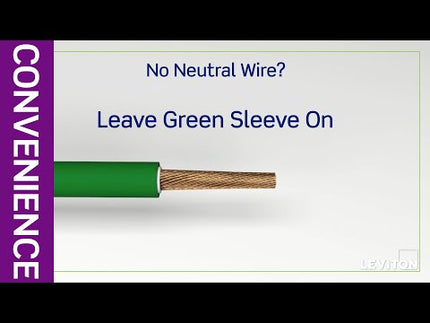

• Can be connected to a Neutral wire if present in the wallbox, or connected to ground wire if no Neutral wire is present in the wallbox
• Interchangeable line and load wires

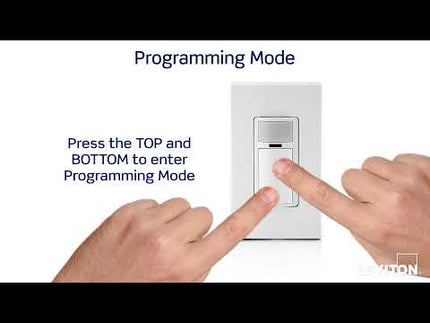

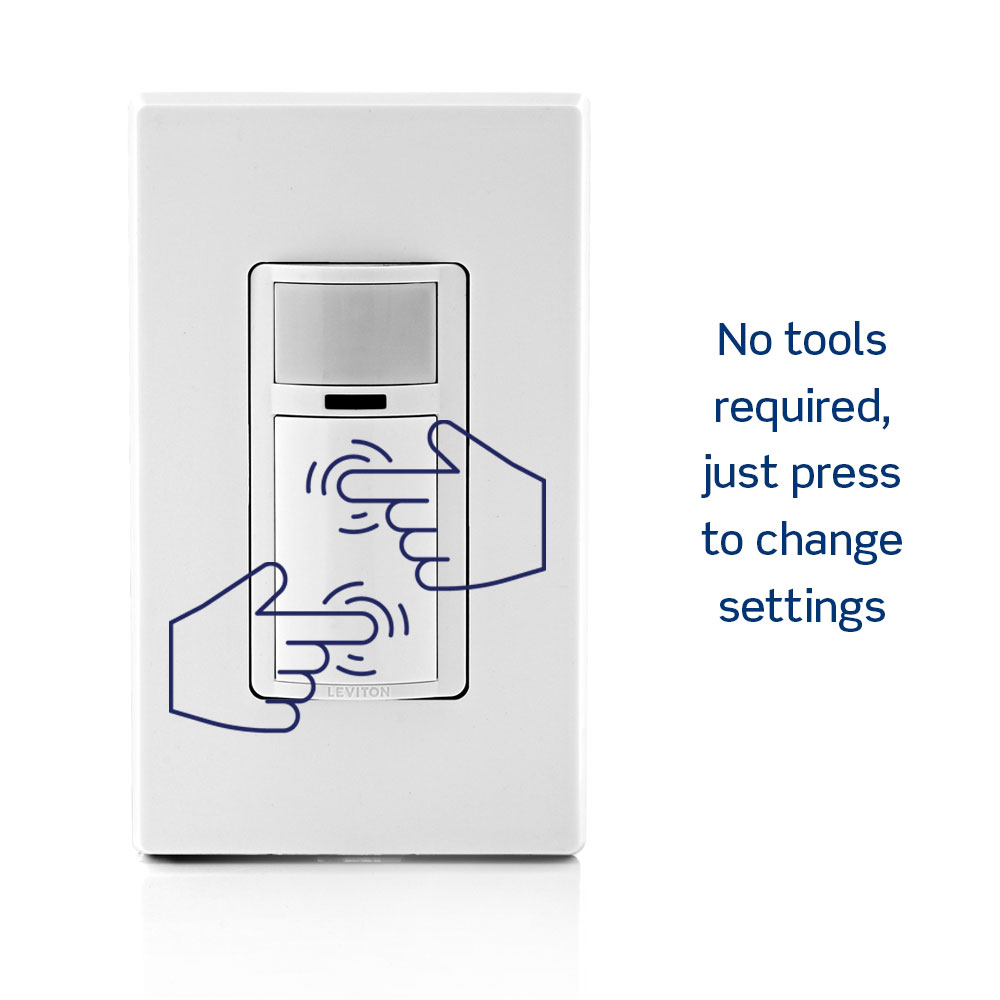

• Program settings without removing the wallplate or faceplate

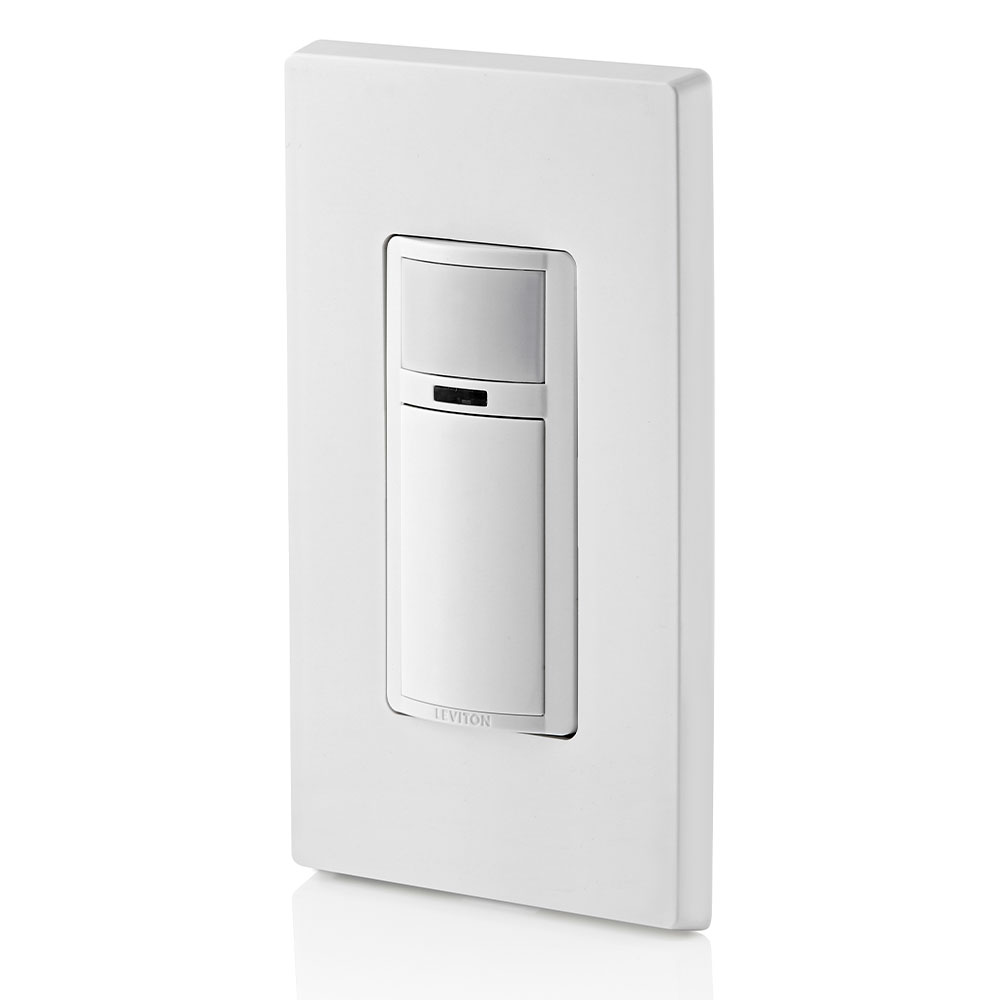

• Low profile design blends in with walls for a discreet appearance
• Ambient light override prevents sensor from switching the lights ON when there is ample natural sunlight
• Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
• Adjustable Range (sensitivity) to fit various coverage areas
• Convenient push-button provides Manual OFF light switching at any time
• Can be used to comply with 2019 California Title 24, Part 6 Vacancy Control Device Requirements
• Color change kits are available
• Five-Year Limited warranty
• CONVENIENT – Automatically turns lights ON/OFF based on motion
• EASY TO INSTALL – Slim profile fits in most wallboxes
• FLEXIBLE – Can be installed with or without a neutral wire
• VERSATILE – Can be set for vacancy (manual-on) switching

Color Variations

• Ivory

Specifications

• Country of Origin: China
• RoHS Compliant: True

Product Features

• Auto-ON/Auto-OFF: Yes
• California Title 24: Yes
• Color: White
• Coverage (Sq.Ft.): 180°, 900 Sq. Ft
• Grade: Residential
• LED Color: Green and Red
• Load Rating: 150W LED/CFL, 250W Incandescent/Halogen, 250VA ELV, 200VA MLV, 2A Resistive
• Mounting Type: Wall Switch
• Neutral: Optional

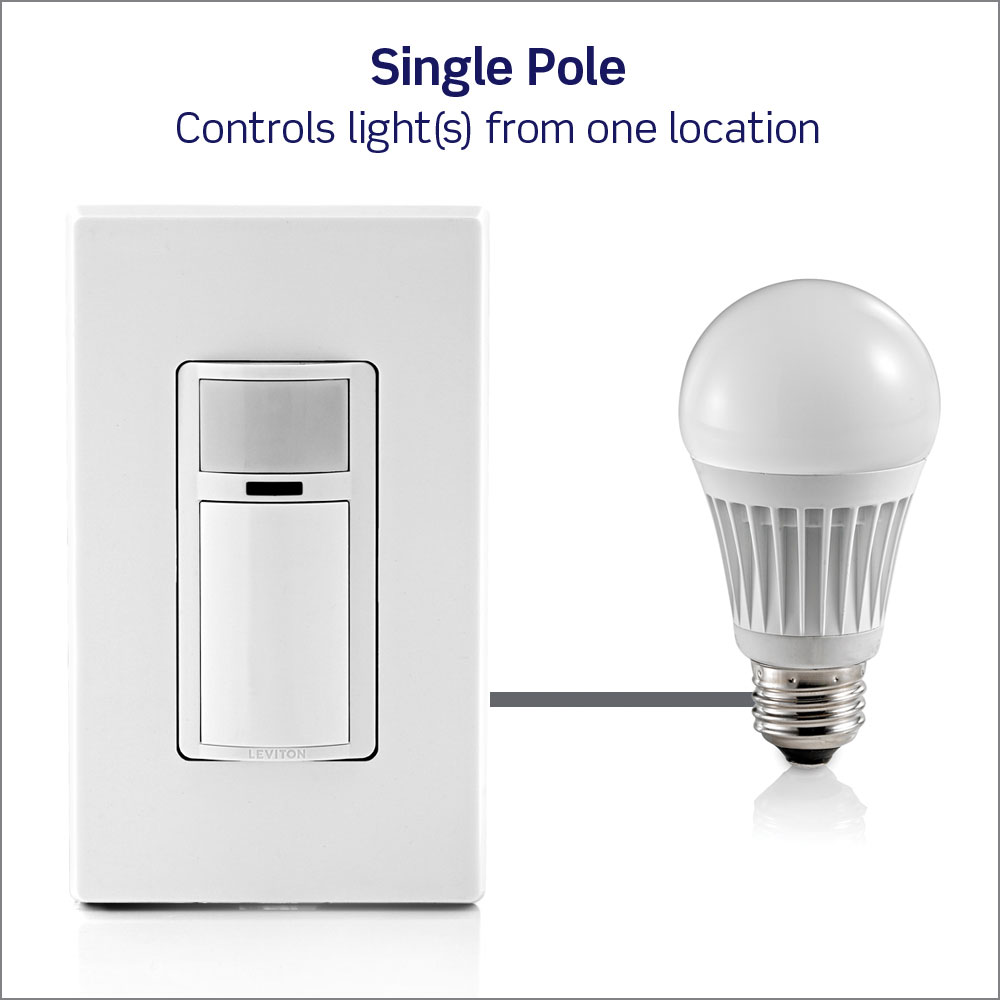

• Pole: 1
• Sensor Technology: Passive Infrared
• Sensor Type: Occupancy
• Standards and Certifications: CSA, FCC, Title 24
• Style Name: Decora
• Switch: Relay
• Time Delay: 1M, 5M, 10M, 20M
• Voltage: 120 VAC
• Wallplate: Not Included
• Warranty: 5-Year Limited
• Wiring: Ground or Neutral Required

Downloads

Product Specification

Product Bulletin

Instruction Sheet

Solution Sheets

Other Documents

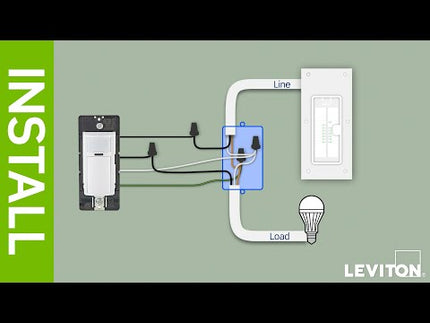

Videos
