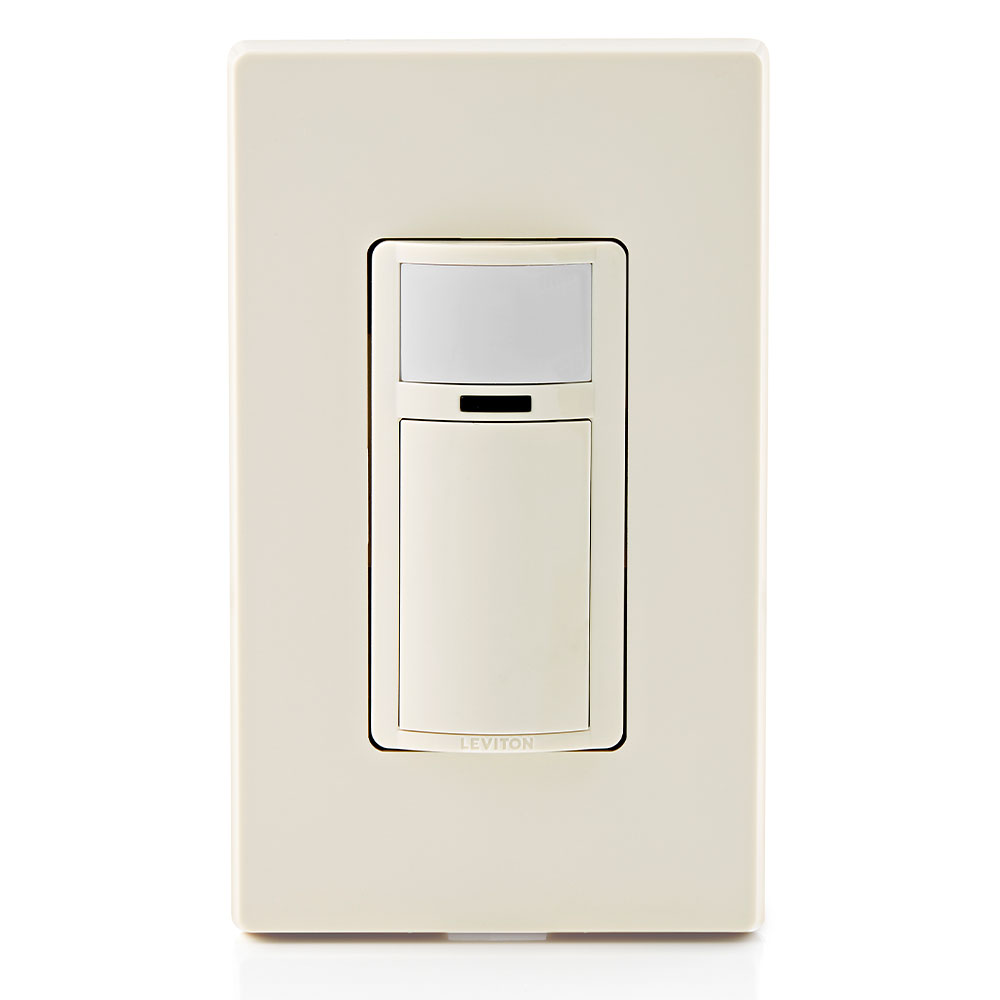

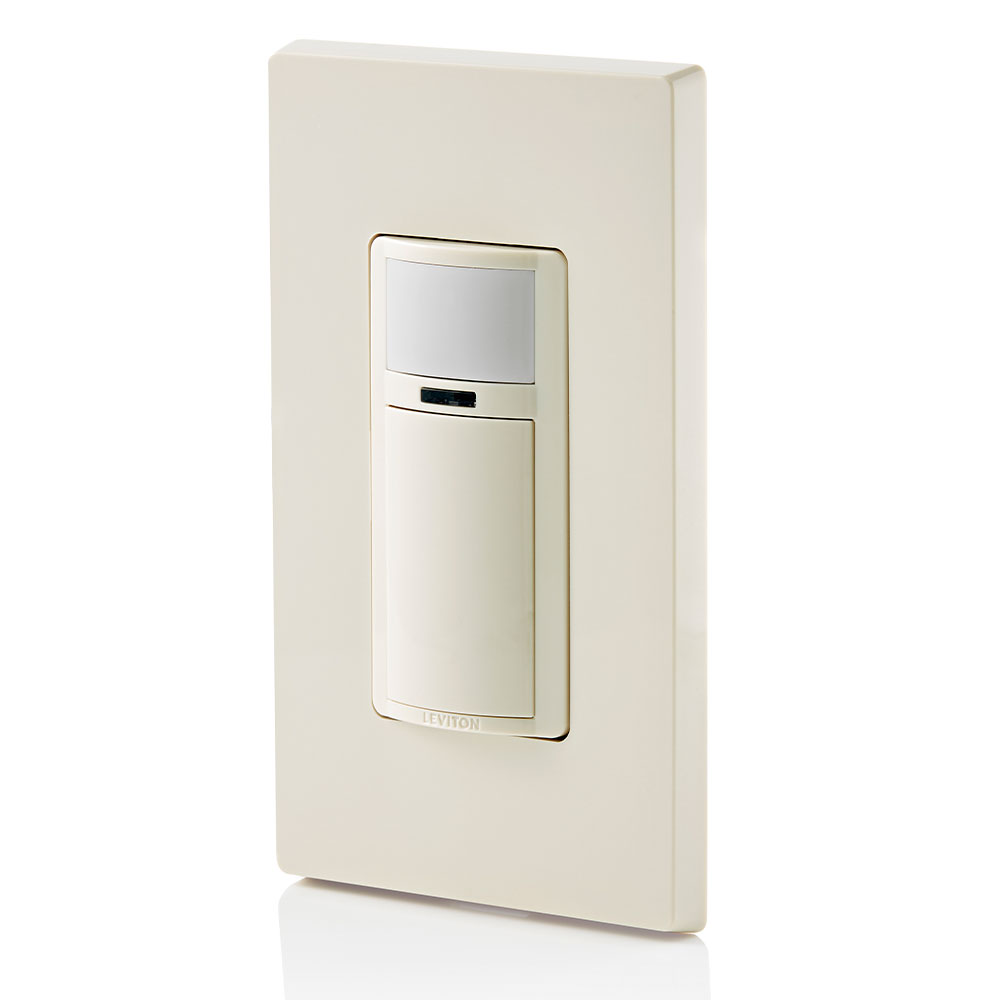

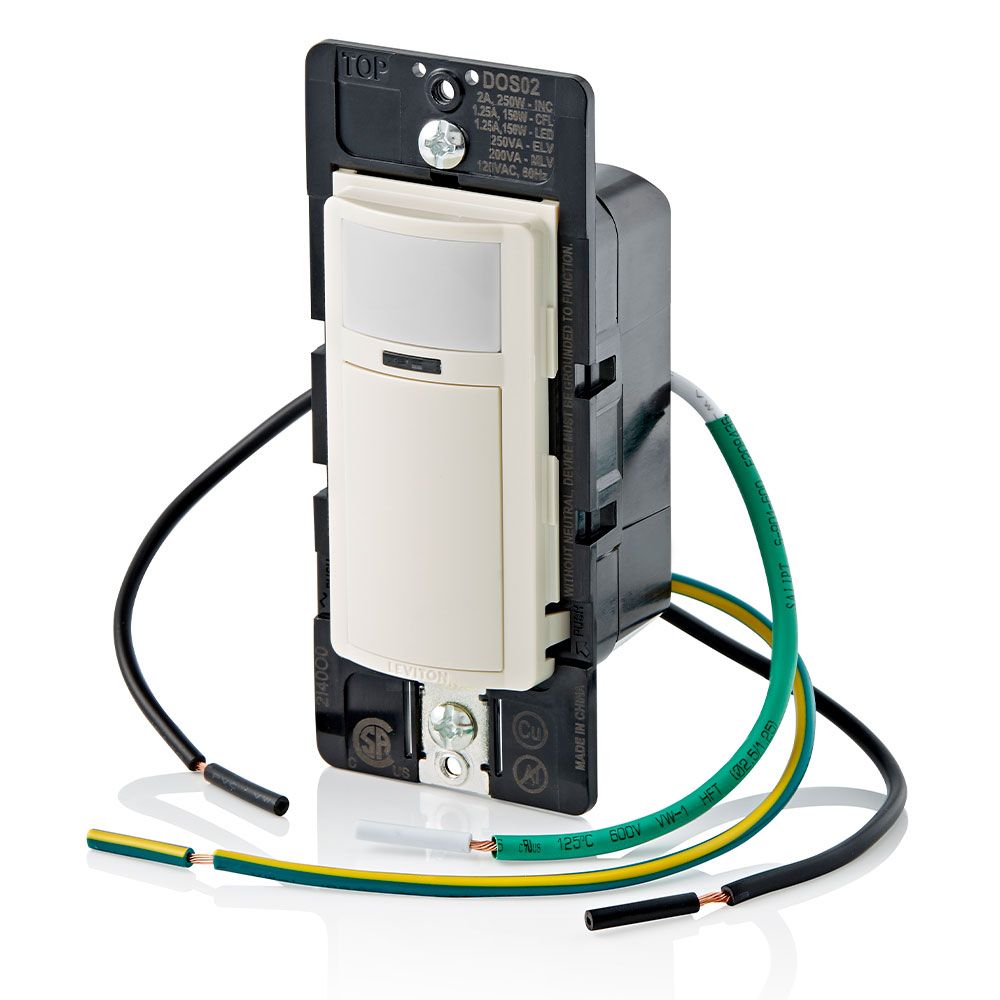

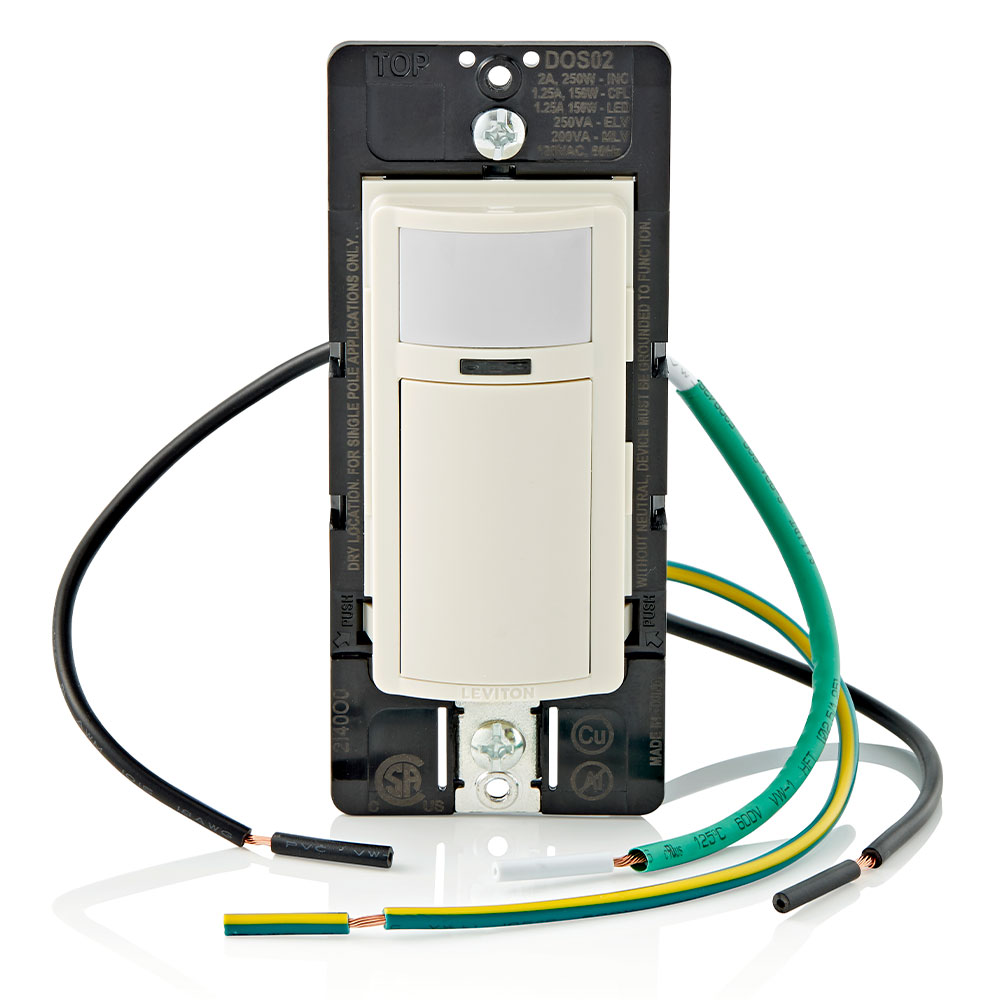

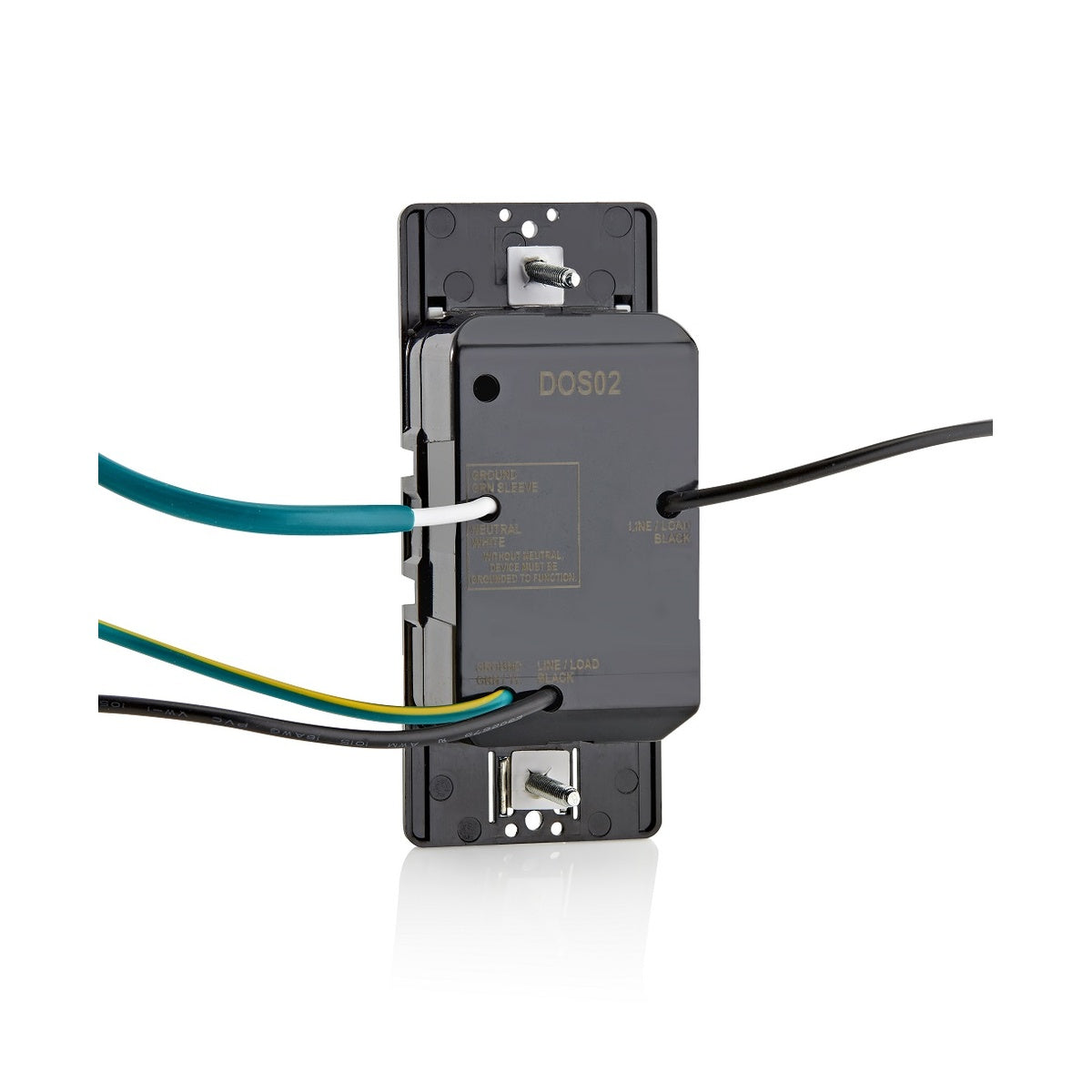

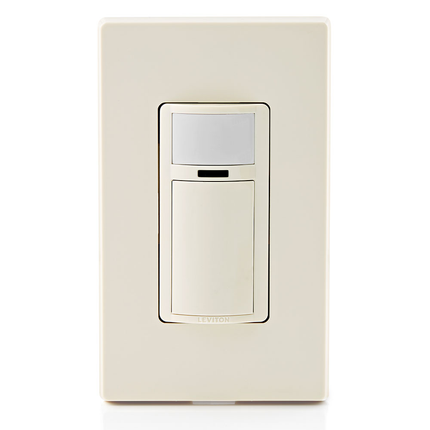

Decora Occupancy Motion Sensor Light Switch, Auto-On, 2A, Residential Grade, Single Pole

The Decora Occupancy Motion Sensor Light Switch by Leviton is a residential-grade, single pole wall switch designed for automatic lighting control. It features a 180° PIR sensor with a 900 sq. ft. coverage area, suitable for use in bathrooms, garages, laundry rooms, and utility rooms. This switch supports multiple lighting types including LED, CFL, incandescent, halogen, magnetic low voltage, electronic low voltage, and fluorescent ballast loads. It is compliant with 2019 California Title 24, Part 6 vacancy control device requirements, making it an ideal solution for electrical distributors and lighting solution providers seeking energy-efficient switchgear for residential applications.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: DOS02-1LT
• Color: Almond
• Grade: Residential
• Mounting Type: Wall Switch
• Number of Poles: 1
• Product Weight: 0.29 lbs
• LED Indicator Color: Green
• Country of Origin: China
• Compatible Loads: 150W LED/CFL, 250W Incandescent/Halogen, 200VA Magnetic Low Voltage, 250VA Electronic Low Voltage, 2A Resistive

Features

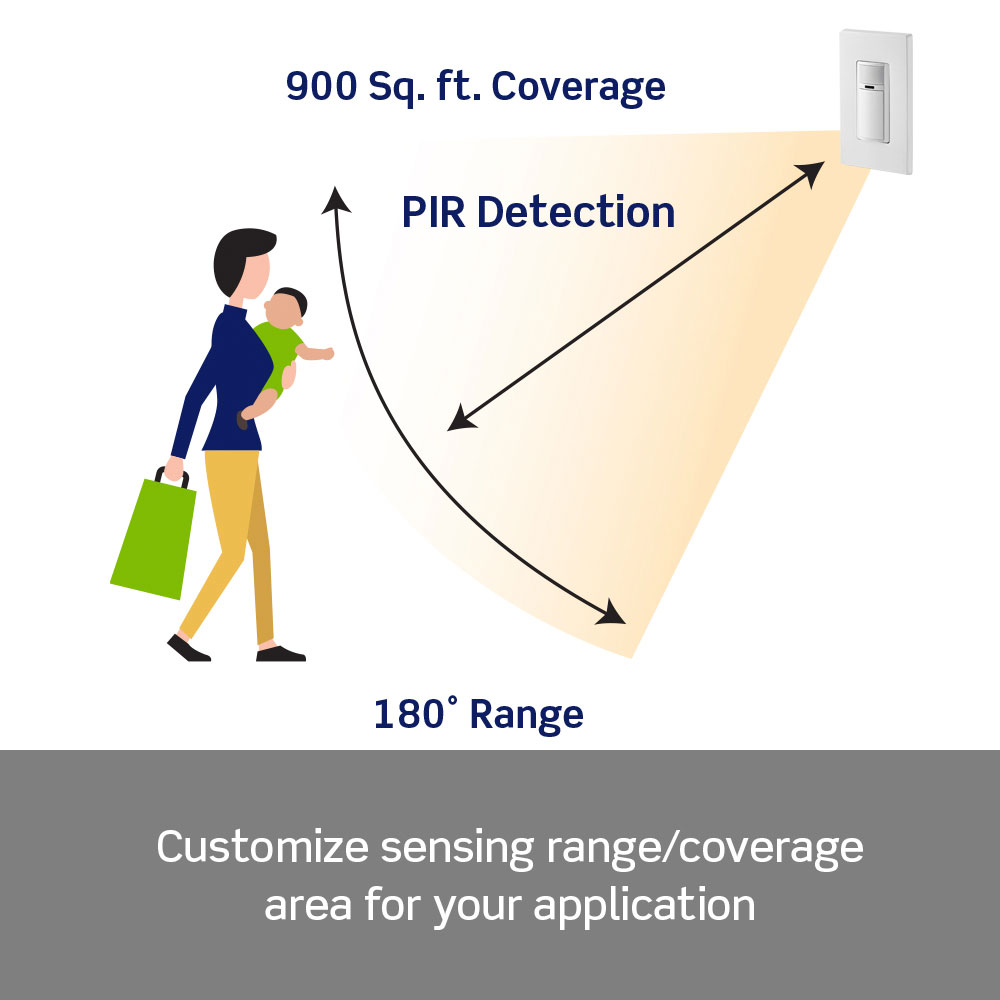

• Automatic-on occupancy sensor with 180° field of view
• Complies with 2019 California Title 24 vacancy control requirements
• Supports multiple lighting types including LED, CFL, incandescent, and low voltage

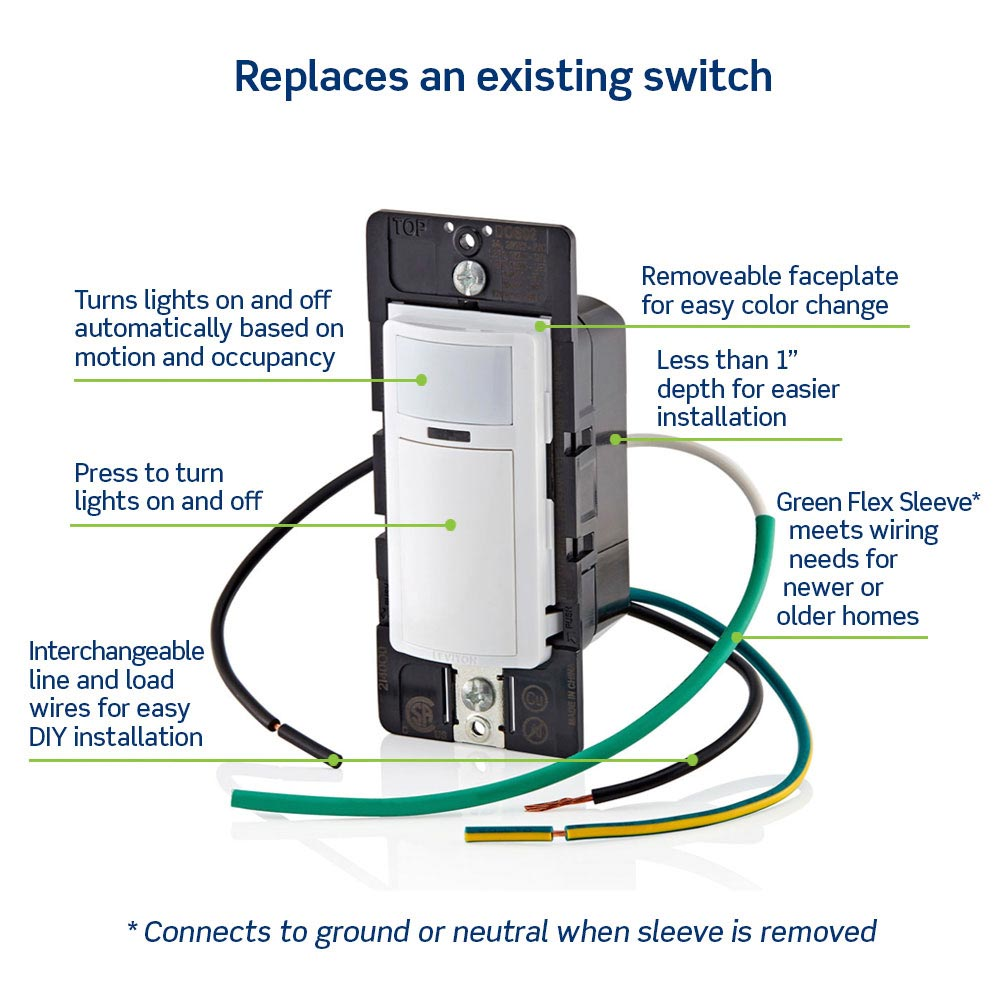

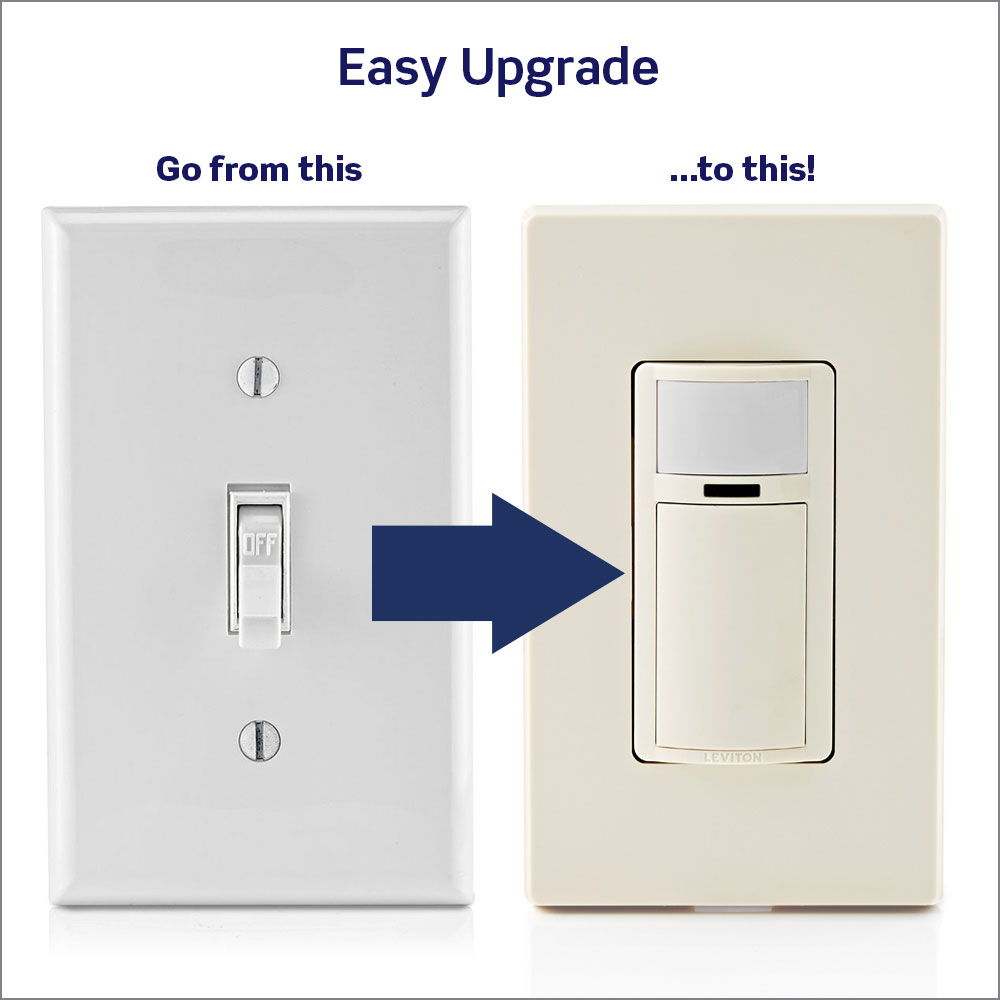

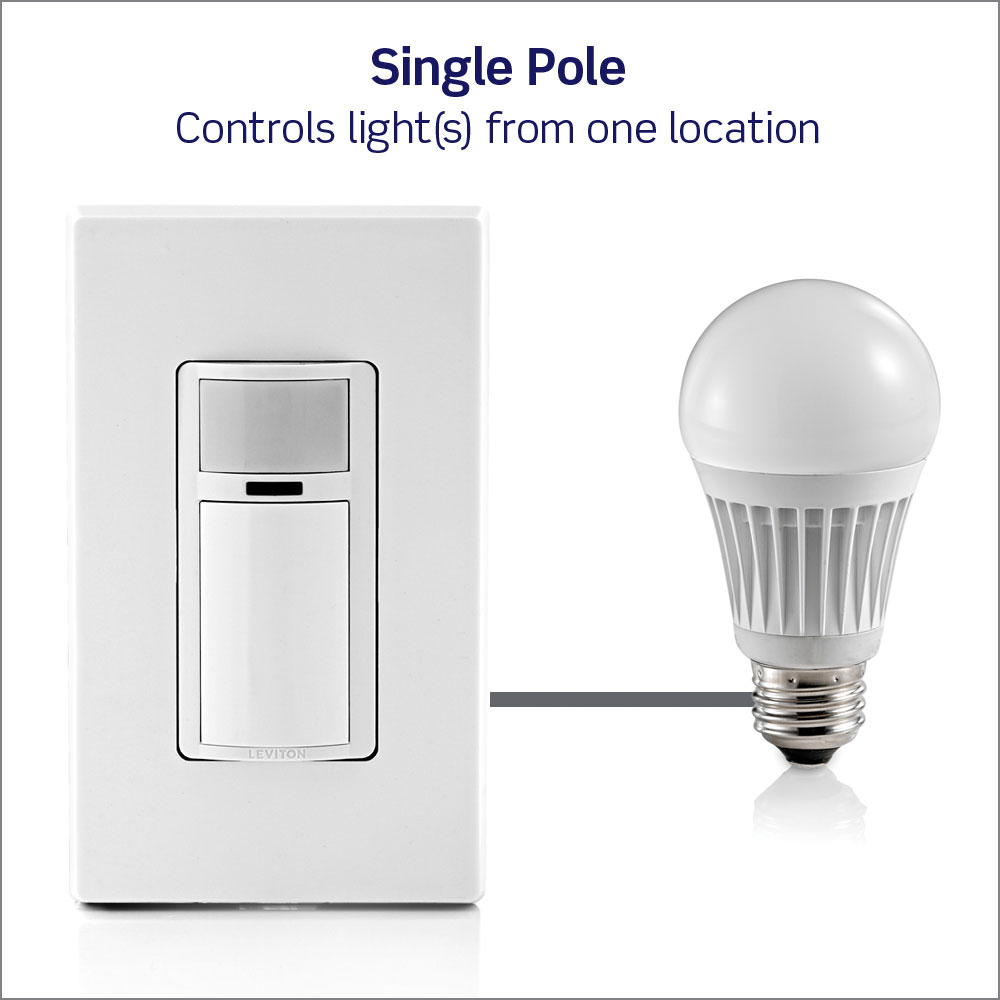

• Single pole operation for easy retrofit or new installation
• Wallplate sold separately for customizable aesthetics

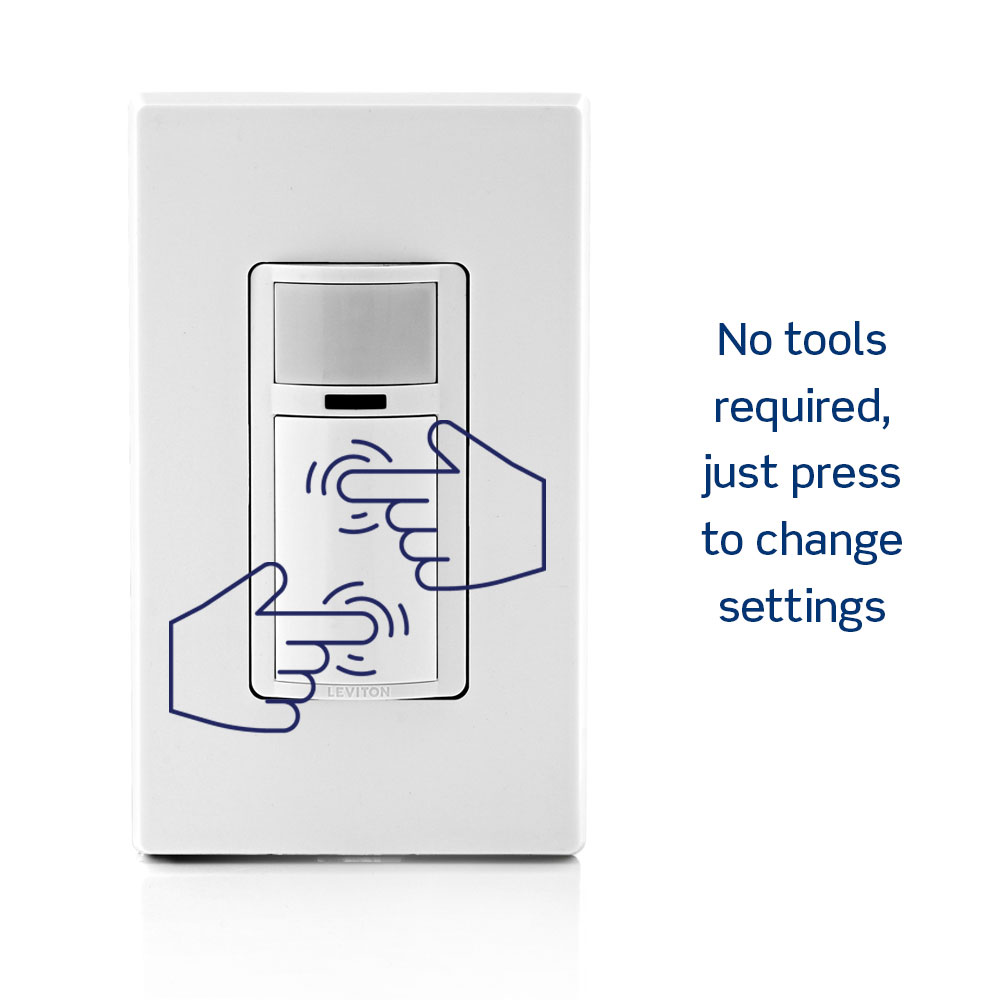

• Easy setting adjustments with no tools required

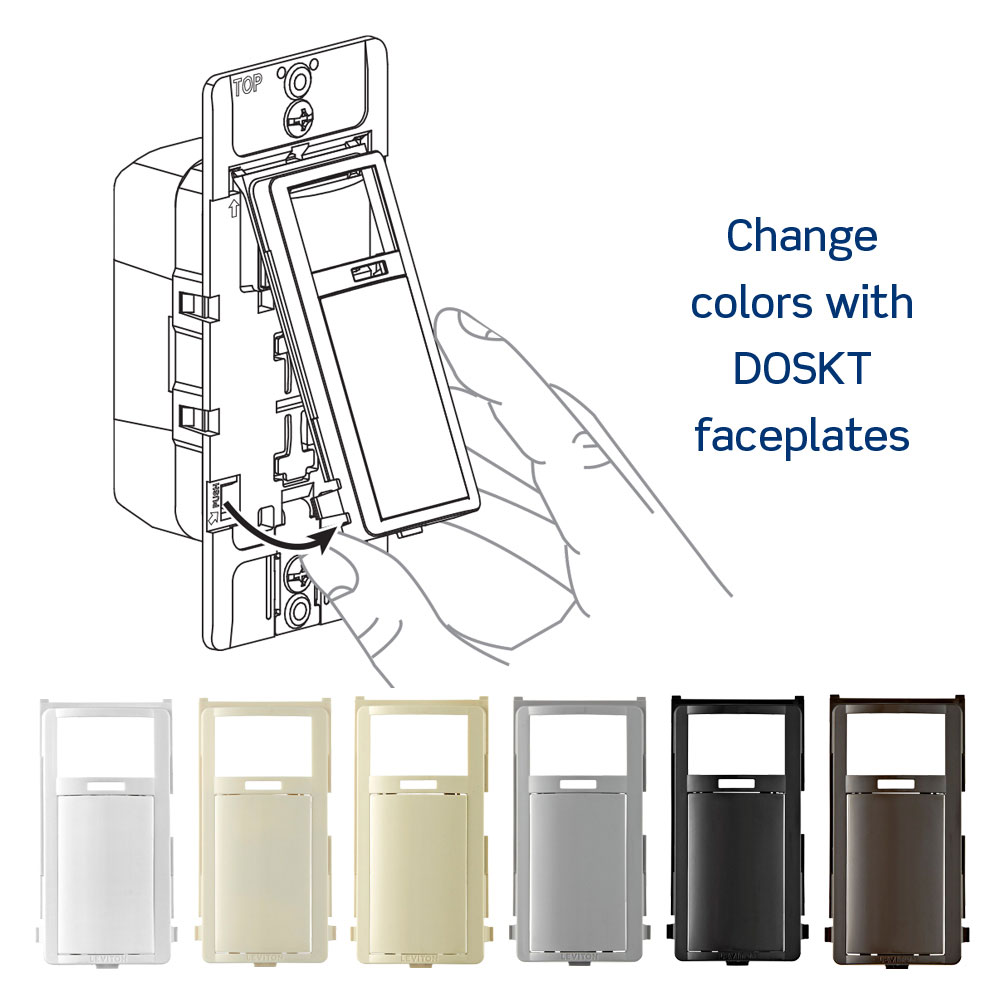

• Compatible with DOSKT faceplates for color customization
