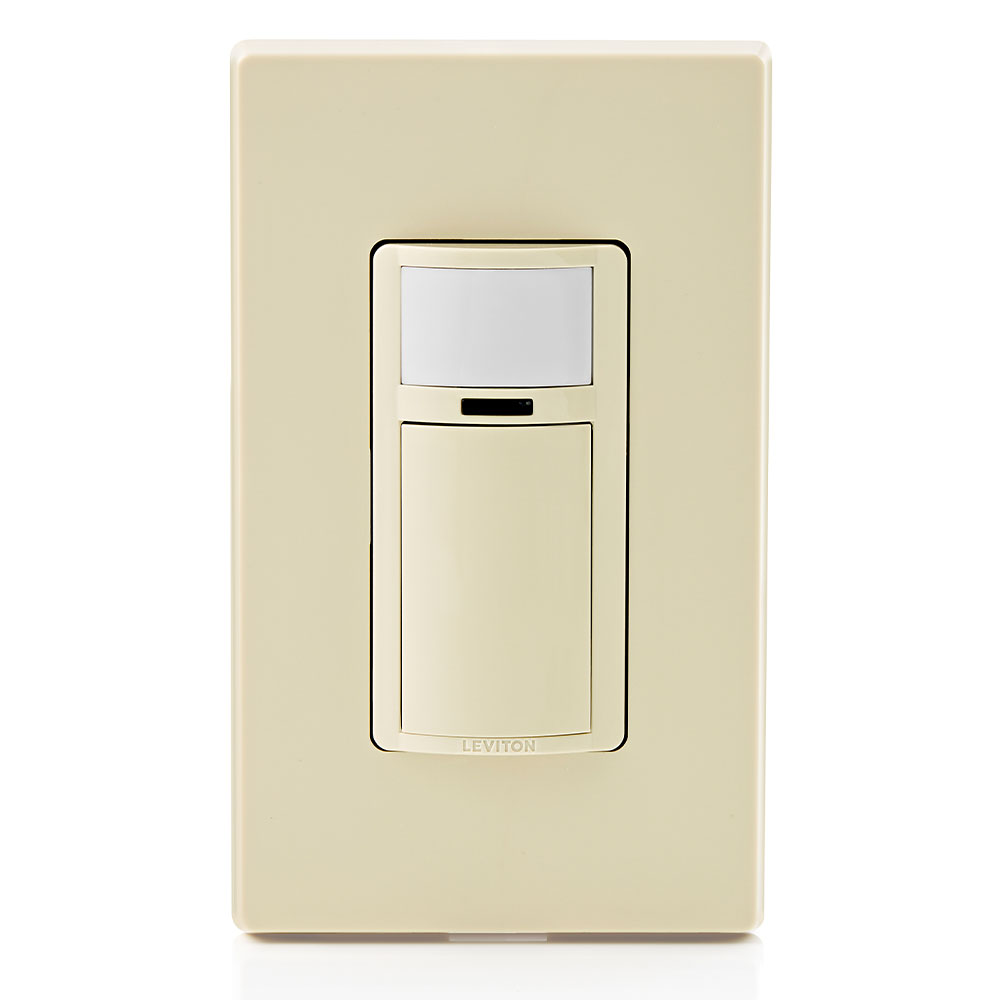

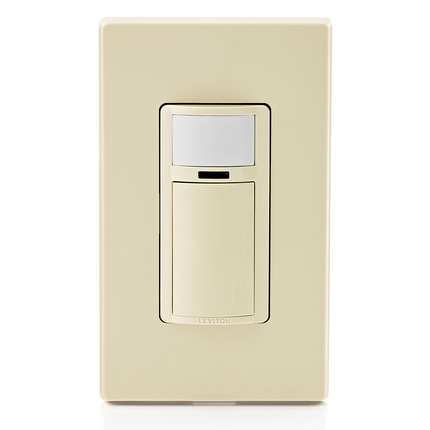

Decora Occupancy Motion Sensor Light Switch, Auto-On, 2A, Residential Grade, Single Pole – Motion Sensor Lighting Solutions

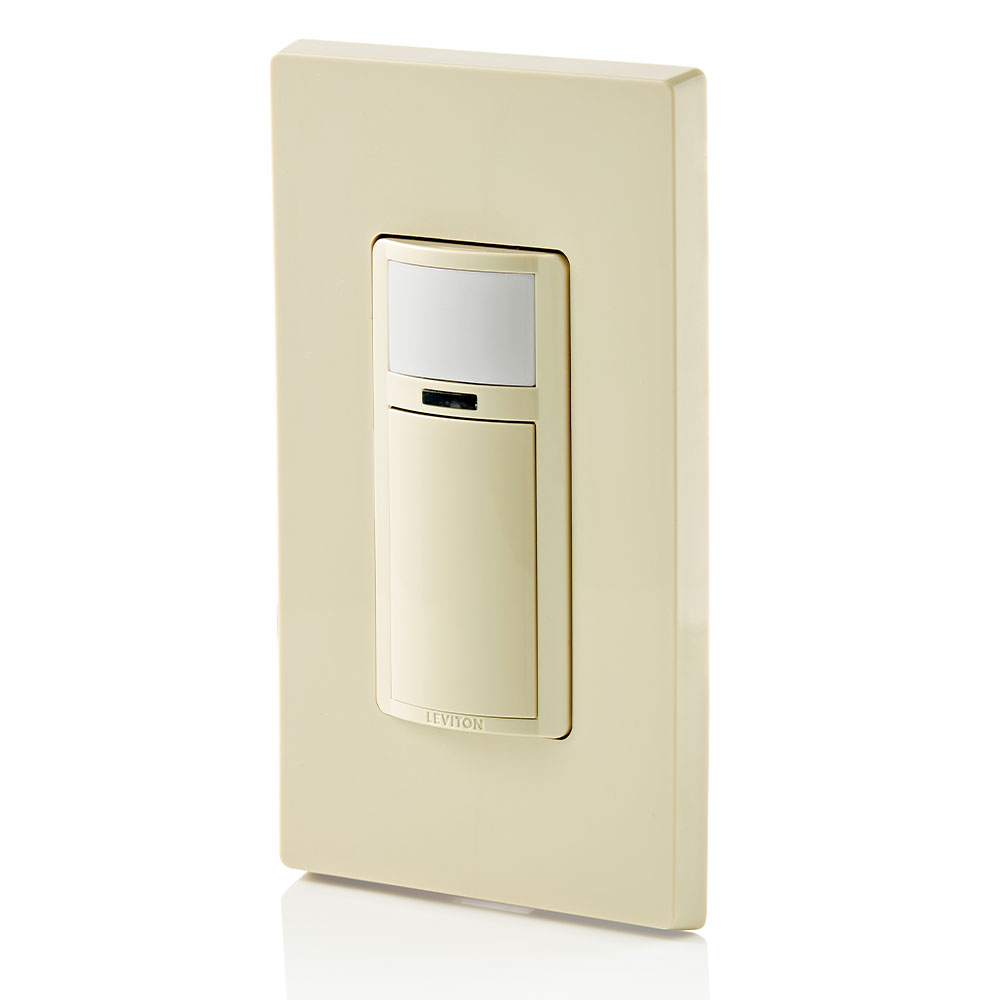

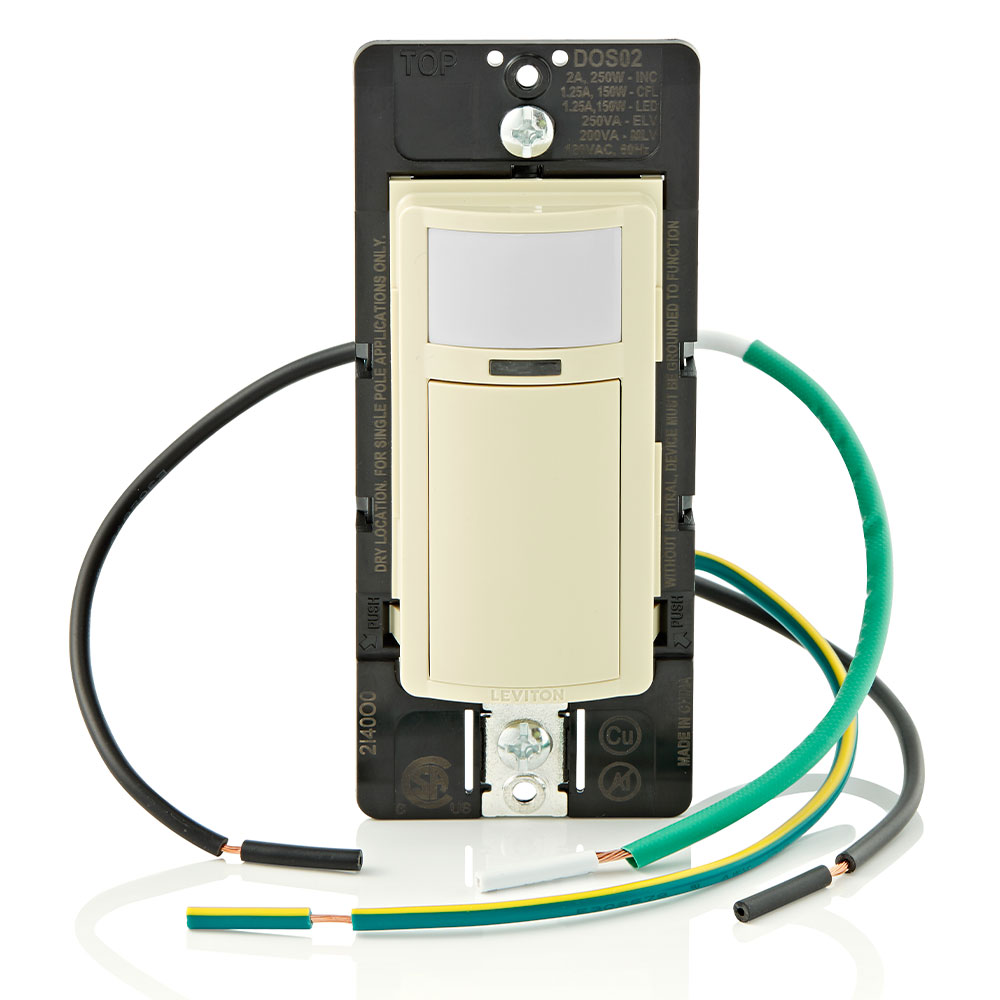

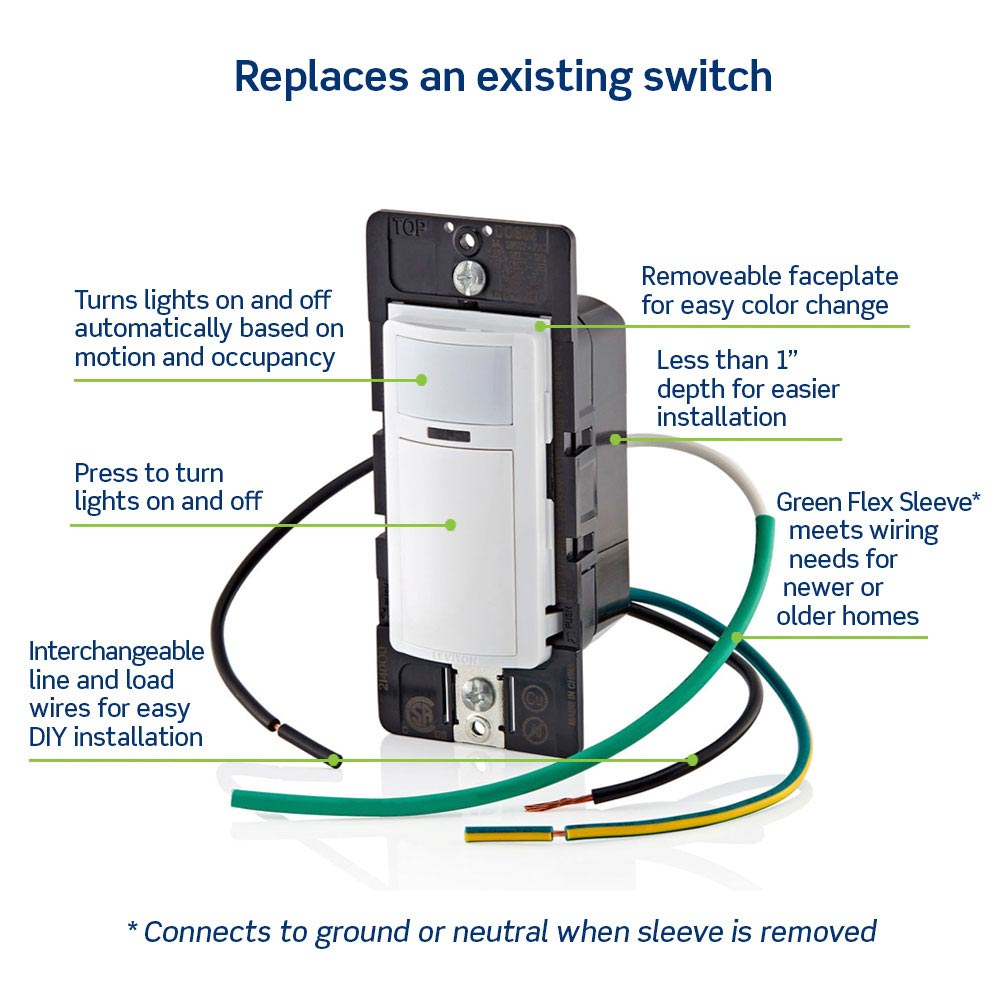

The Decora Occupancy Motion Sensor Light Switch by Leviton is a residential grade, single pole wall switch designed for automatic lighting control. It features a 180° PIR sensor with automatic-on functionality, suitable for use in areas such as bathrooms, garages, laundry rooms, closets, and utility rooms. This sensor switch supports multiple lighting types including LED, CFL, incandescent, halogen, magnetic low voltage, electronic low voltage, and fluorescent ballast loads. It complies with the 2019 California Title 24, Part 6 vacancy control device requirements, making it a reliable choice for energy-efficient residential lighting solutions.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: DOS02-1LI
• Product Weight: 0.2900 lbs
• Color: Ivory
• Grade: Residential
• Mounting Type: Wall Switch
• Number of Poles: 1
• LED Indicator Color: Green
• Country of Origin: China

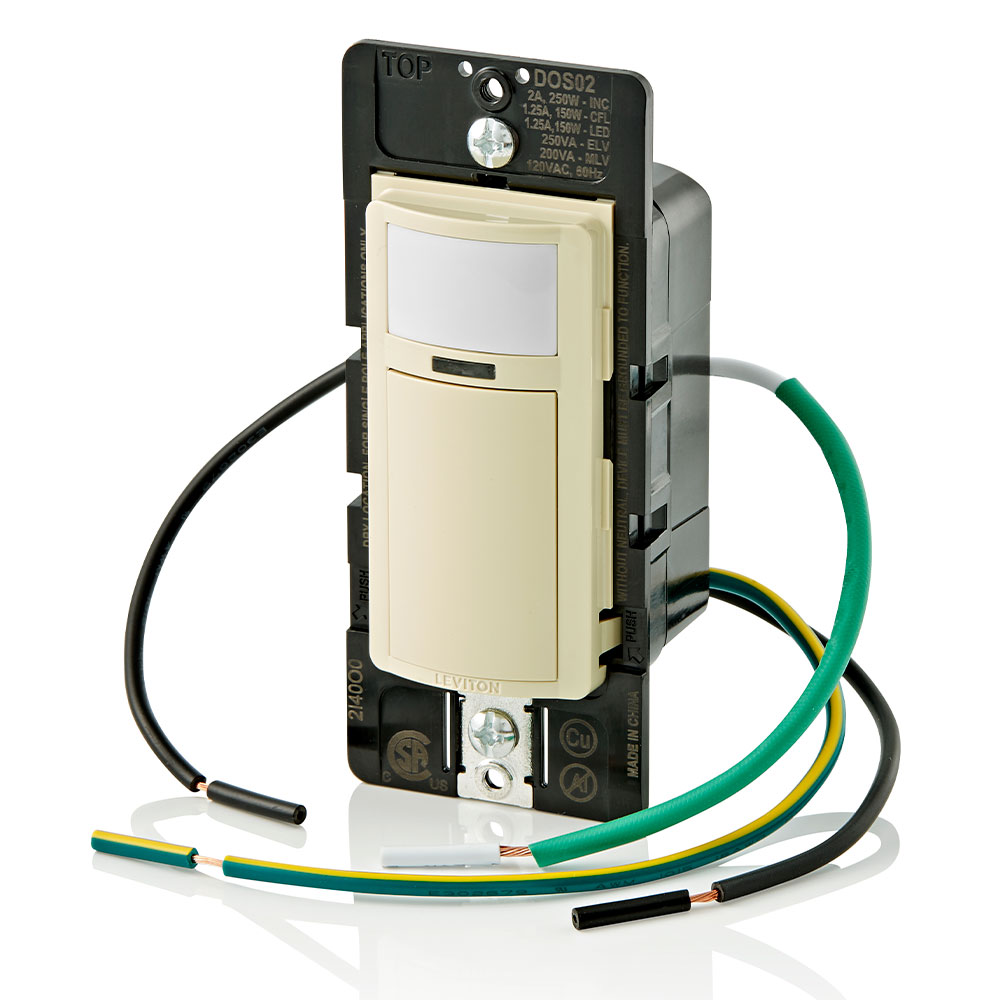

• Load Ratings: 150W LED/CFL, 250W Incandescent/Halogen, 200VA Magnetic Low Voltage, 250VA Electronic Low Voltage, 2A Resistive

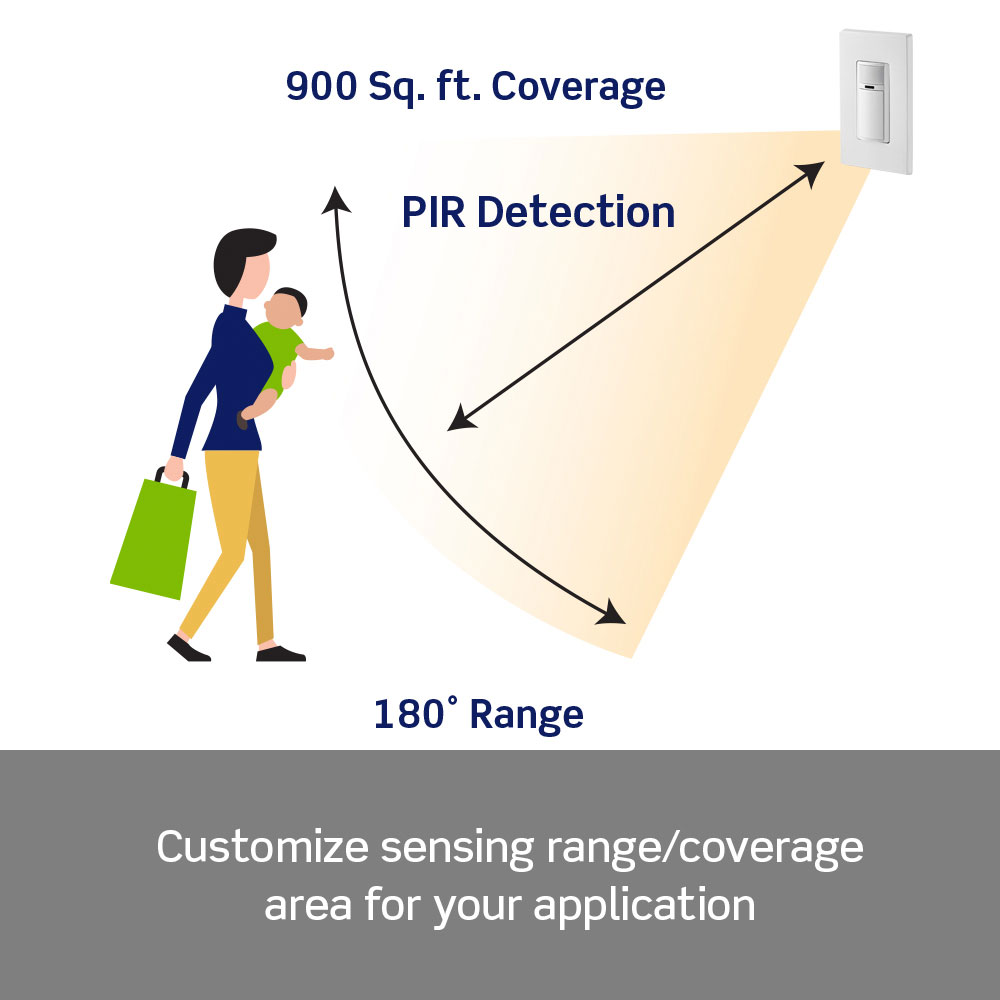

• Sensor Coverage: 180° field of view, 900 sq. ft. coverage

Features

• Automatic-on PIR motion sensor for hands-free lighting control
• Complies with 2019 California Title 24 vacancy control device requirements

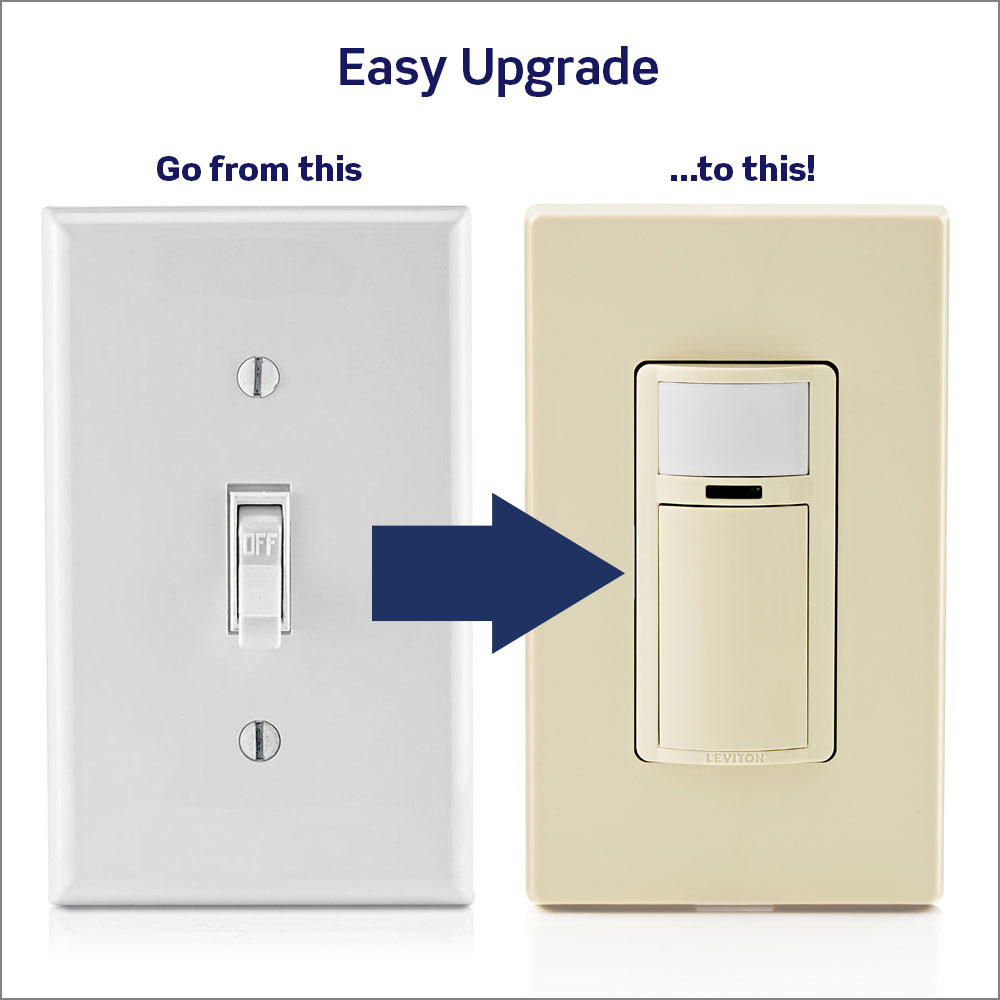

• Suitable for retrofit and new construction applications
• Supports multiple lighting technologies including LED, CFL, incandescent, and low voltage

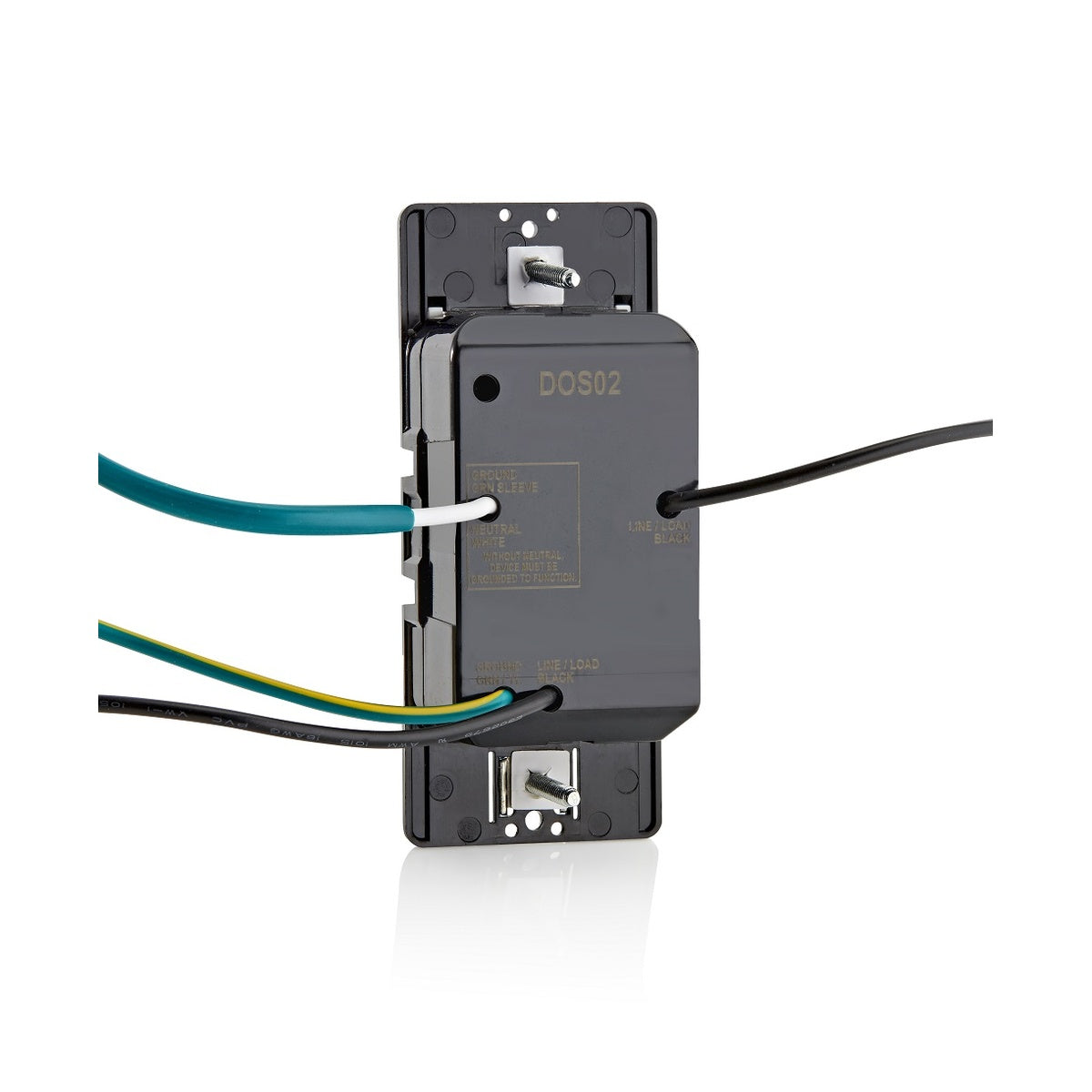

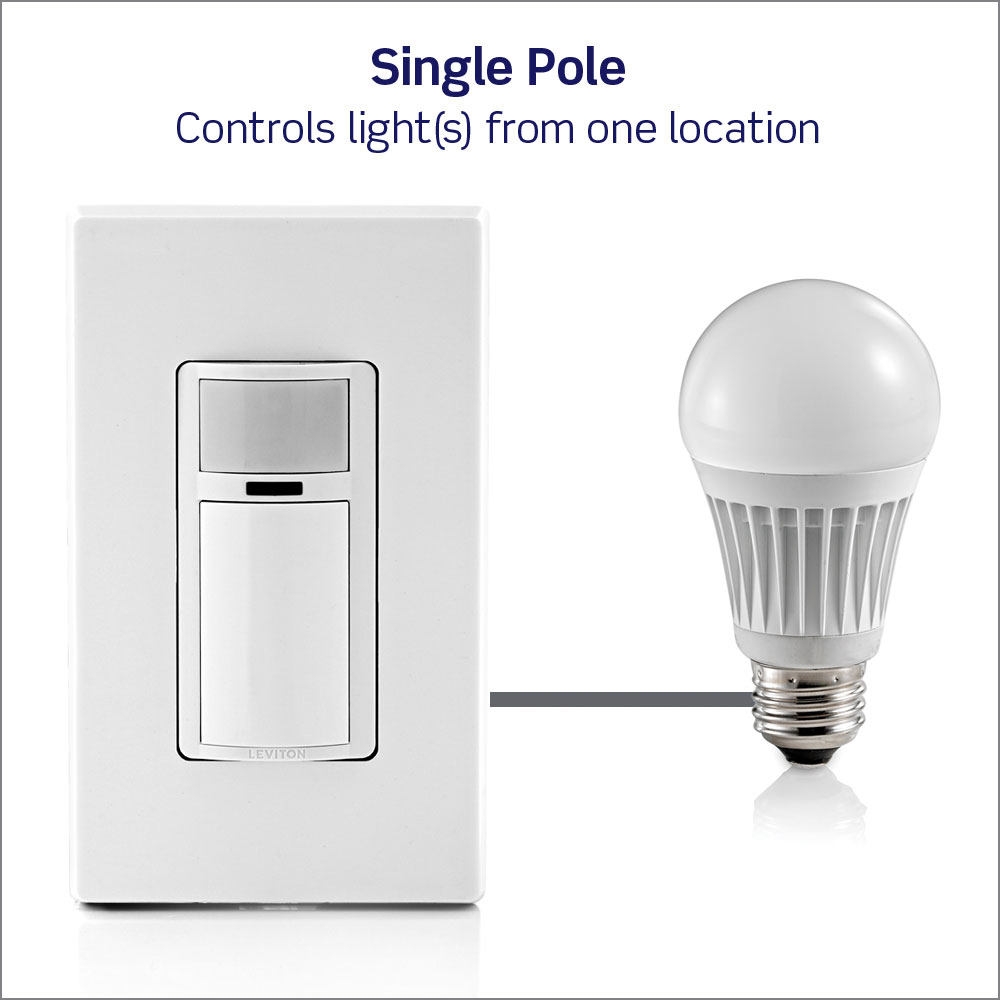

• Single pole configuration for simple installation
• Green LED indicator for status feedback

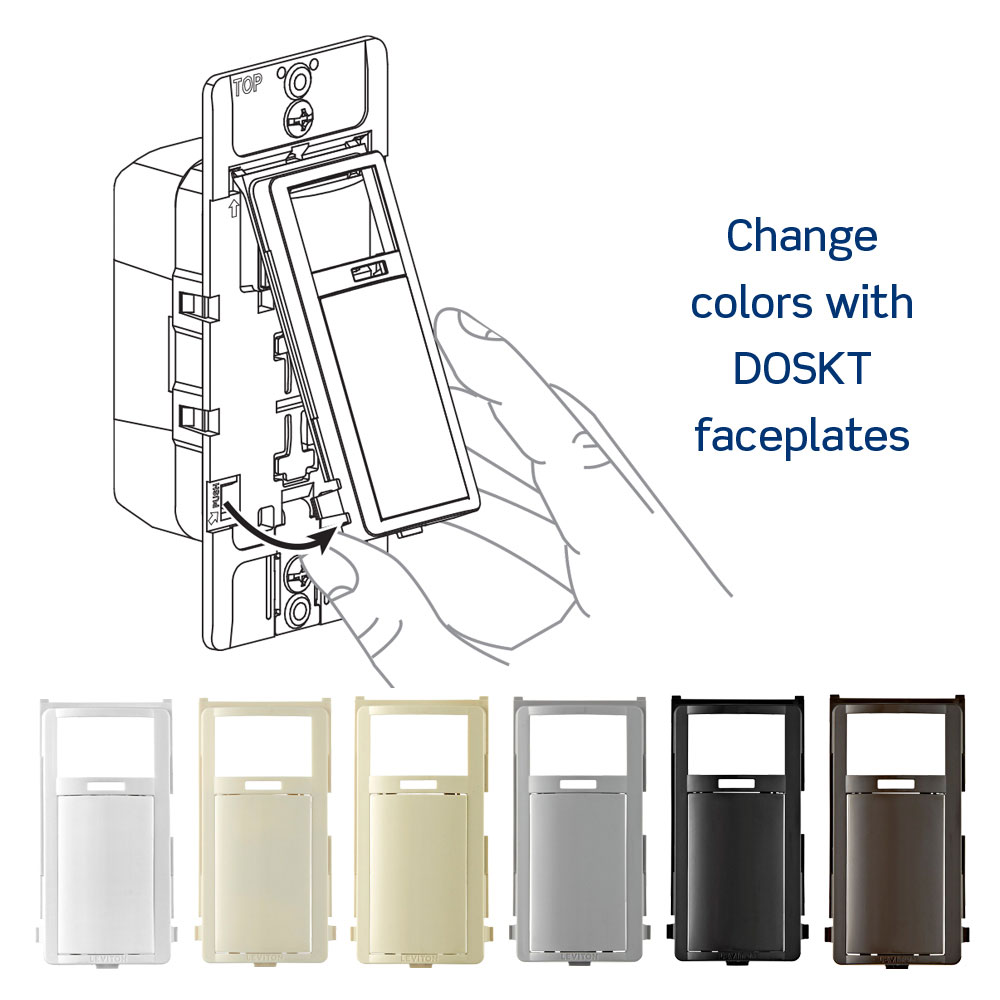

• Wallplate sold separately
• Prevents lights from turning on when ample daylight is detected in the space

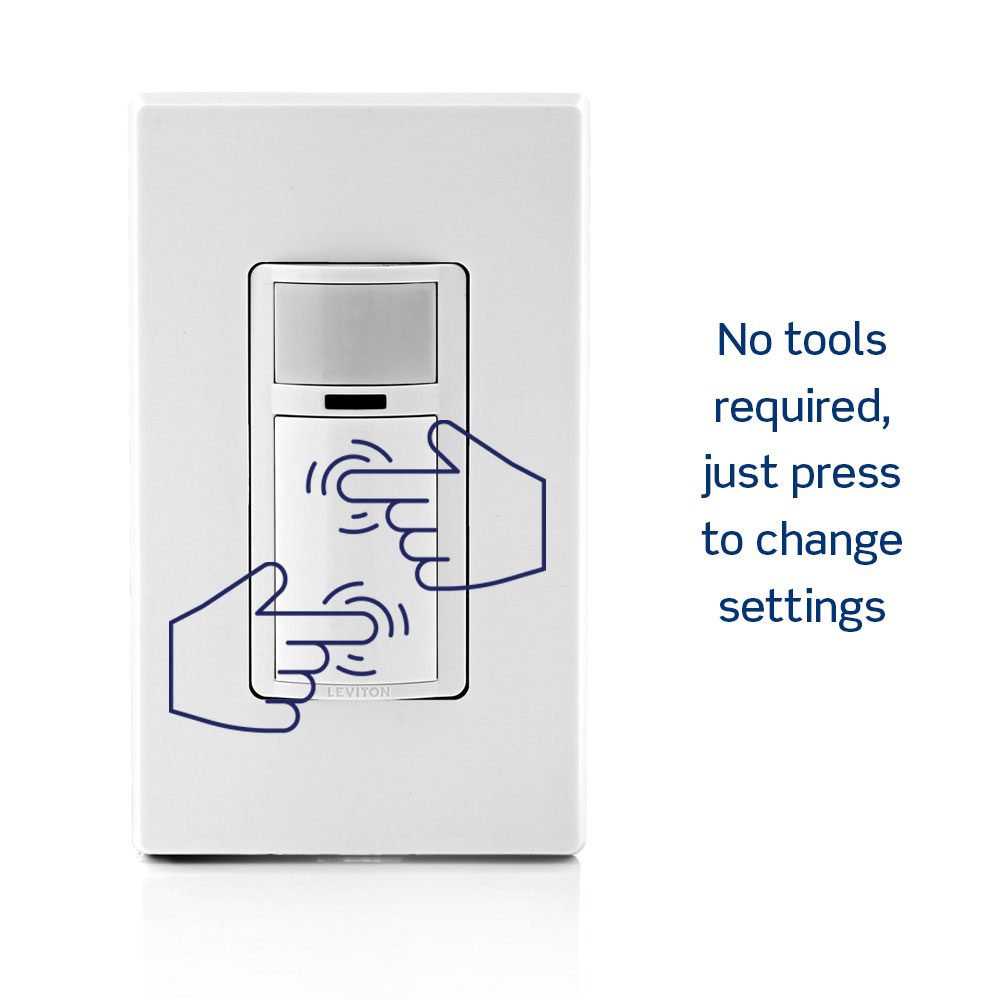

• No tools required for setting adjustments, press to change settings
• Ideal for areas where hands-free operation is beneficial such as mudrooms, closets, and garages
