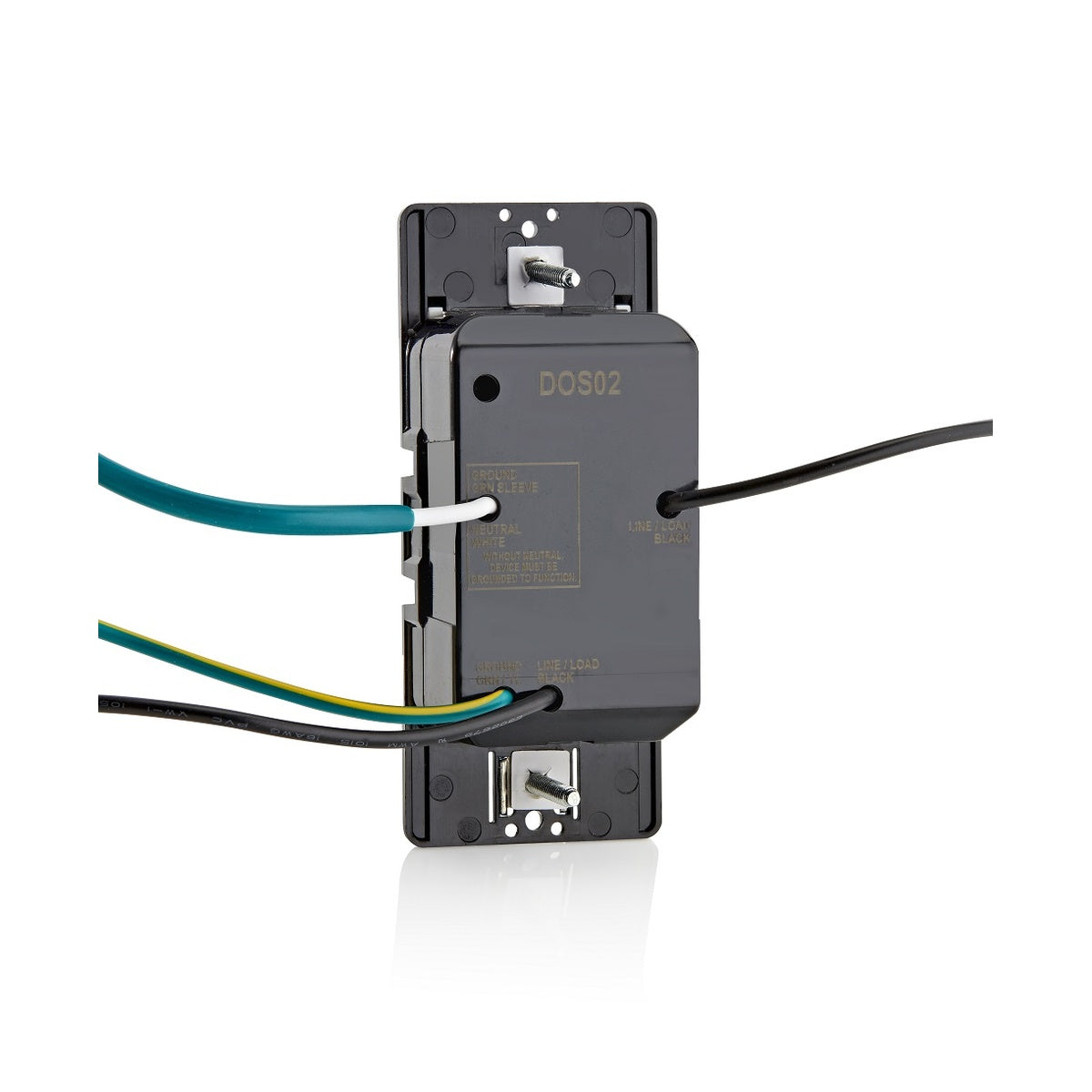

Decora Occupancy Motion Sensor Light Switch – Motion Sensor Lighting Solutions

The Decora Occupancy Motion Sensor Light Switch by Leviton is a residential-grade, single-pole wall switch designed for automatic lighting control based on occupancy detection. It is suitable for use in residential indoor lighting applications including bathrooms, garages, laundry rooms, closets, mudrooms, and utility rooms. This sensor switch helps electrical distributors and lighting solution providers offer energy-saving wire and cable control options that comply with 2019 California Title 24, Part 6 vacancy control device requirements.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: DOS02-LW
• Product Weight: 0.2625 lbs
• Color: White
• Grade: Residential
• Mounting Type: Wall Switch
• Number of Poles: 1
• LED Indicator Color: Green
• Country of Origin: China
• Load Ratings: 150W LED/CFL, 250W Incandescent/Halogen, 200VA Magnetic Low Voltage, 250VA Electronic Low Voltage, 2A Resistive
• Field of View: 180¬∞
• Coverage Area: 900 sq. ft.

Features

• Automatic-on occupancy sensor with 180¬∞ PIR detection for hands-free lighting control
• Manual press override to turn lights on or off
• Compliant with 2019 California Title 24, Part 6 vacancy control device requirements
• Compatible with LED, CFL, incandescent, magnetic and electronic low voltage lighting loads
• Interchangeable line and load wires for easy DIY installation
• Removable faceplate allowing easy color change
• Less than 1‚Äù depth for installation in standard wallboxes
• Green Flex Sleeve wiring meets requirements for newer or older homes, connecting to ground or neutral when sleeve is removed
• Suitable for retrofit or new construction applications (neutral wire required for new construction)
• Designed to replace existing wall switches, providing energy-efficient lighting control
