Decora Insert, F connector, White - Video Connection Solutions

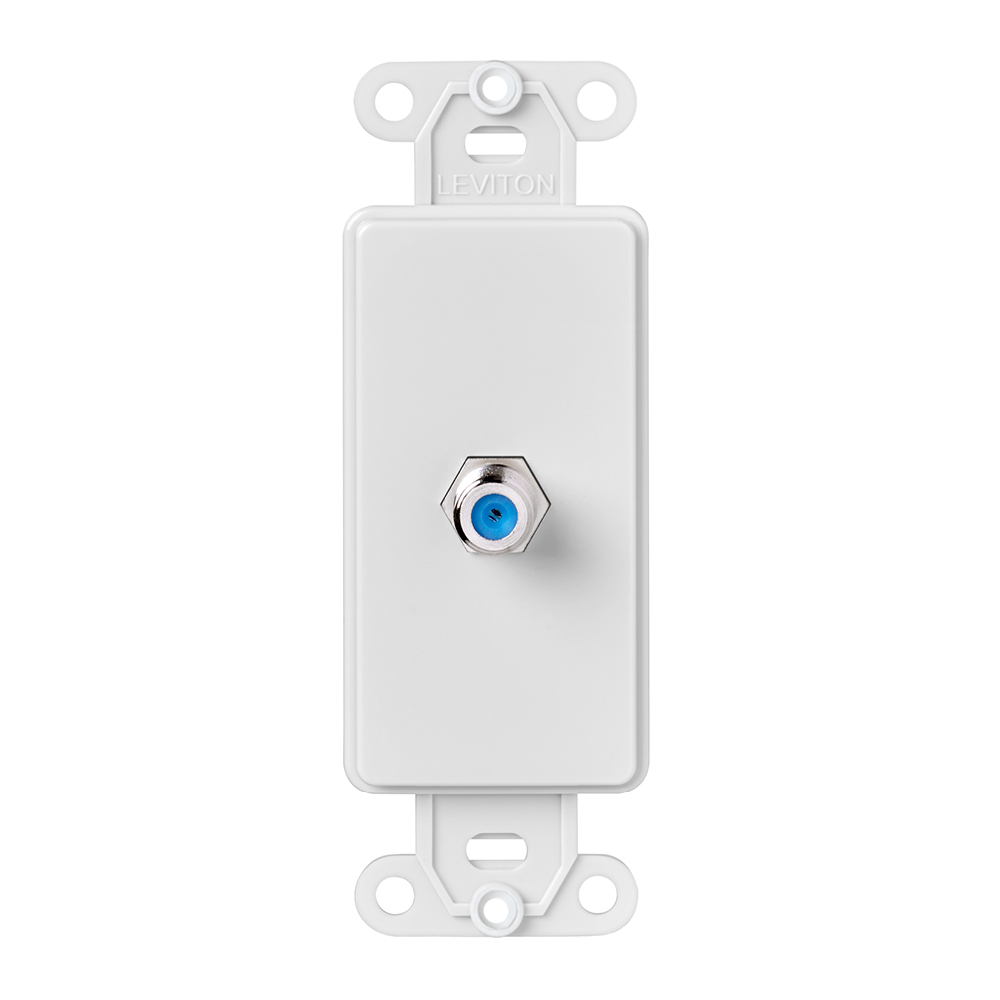

The Leviton Decora Insert with F-Connector Coupler is designed for flush mount telephone and video connection plates in residential and commercial applications. Ideal for electrical distributors and switchgear suppliers focusing on wire and cable and lighting solutions, this insert supports voice and video applications in standard NEMA openings, providing a consistent Decora-brand aesthetic. It features a nickel-plated female-to-female 75 Ohm F-Connector Coupler suitable for all video applications, supporting frequencies up to 3GHz.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: 40681-W
• Color: White
• Mounting Type: Box
• Material: Polycarbonate
• Product Weight: 2.8 lbs
• Country of Origin: Taiwan
• UPC: 078477361818
• Dimensions: 3.281" height x 1.30" width x 0.64" depth
• Standards: cULus Listed, FCC Part 68, ANSI/SCTE (F-Connector)

Features

• Flush mount insert compatible with Decora and Decora Plus screwless wallplates
• Durable nickel-plated female-to-female 75 Ohm F-Connector Coupler
• Supports all video applications and frequencies up to 3GHz
• Mounts to single-gang backboxes or four-square boxes with user-provided reducer
• Smooth finish for consistent look throughout home or business
• Compatible with standard NEMA back boxes that sit flush or are slightly recessed
