Decora Edge 15 Amp Tamper-Resistant Duplex Outlet, White
SKU: #382588
Part: #E5325-W
UPC: 078477332559
Decora Edge 15 Amp Tamper-Resistant Duplex Outlet, White
SKU: #382588
Part: #E5325-W
UPC: 078477332559
Total Price: $4.06 per each Sold in increments of 1 each
Description

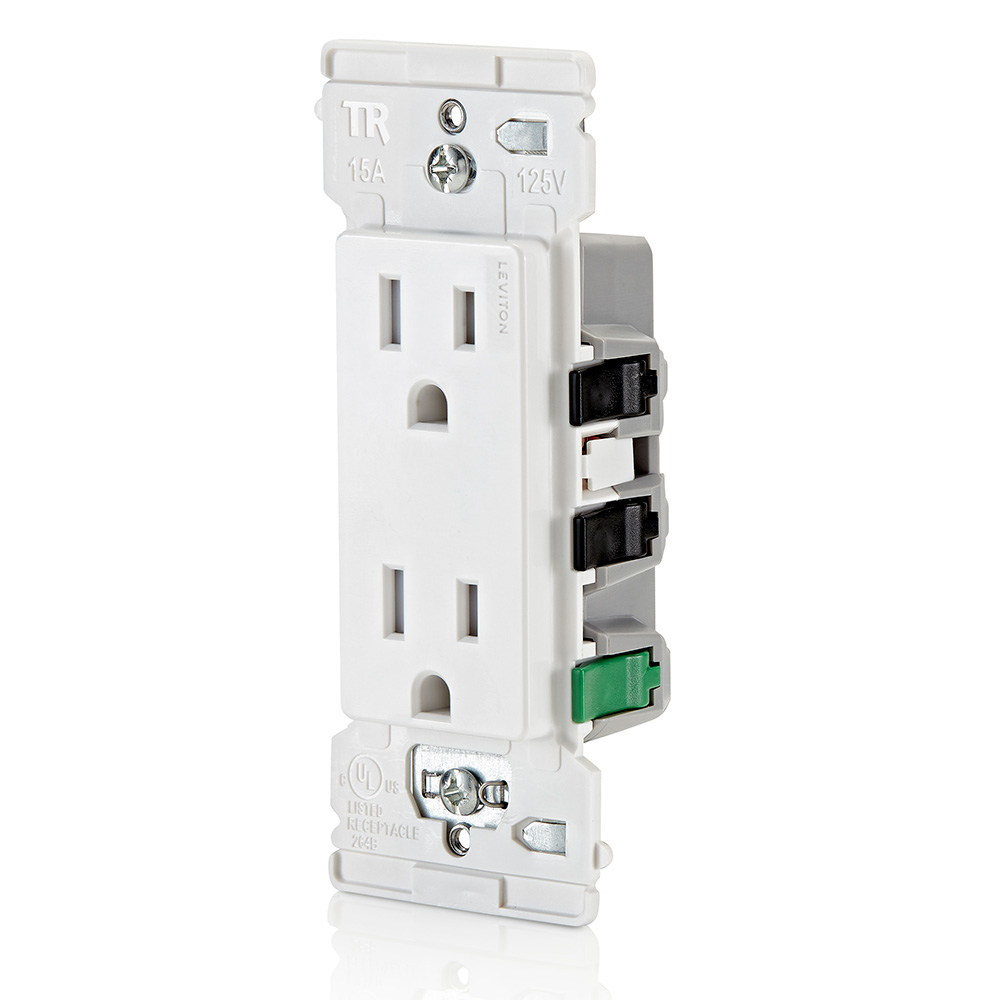

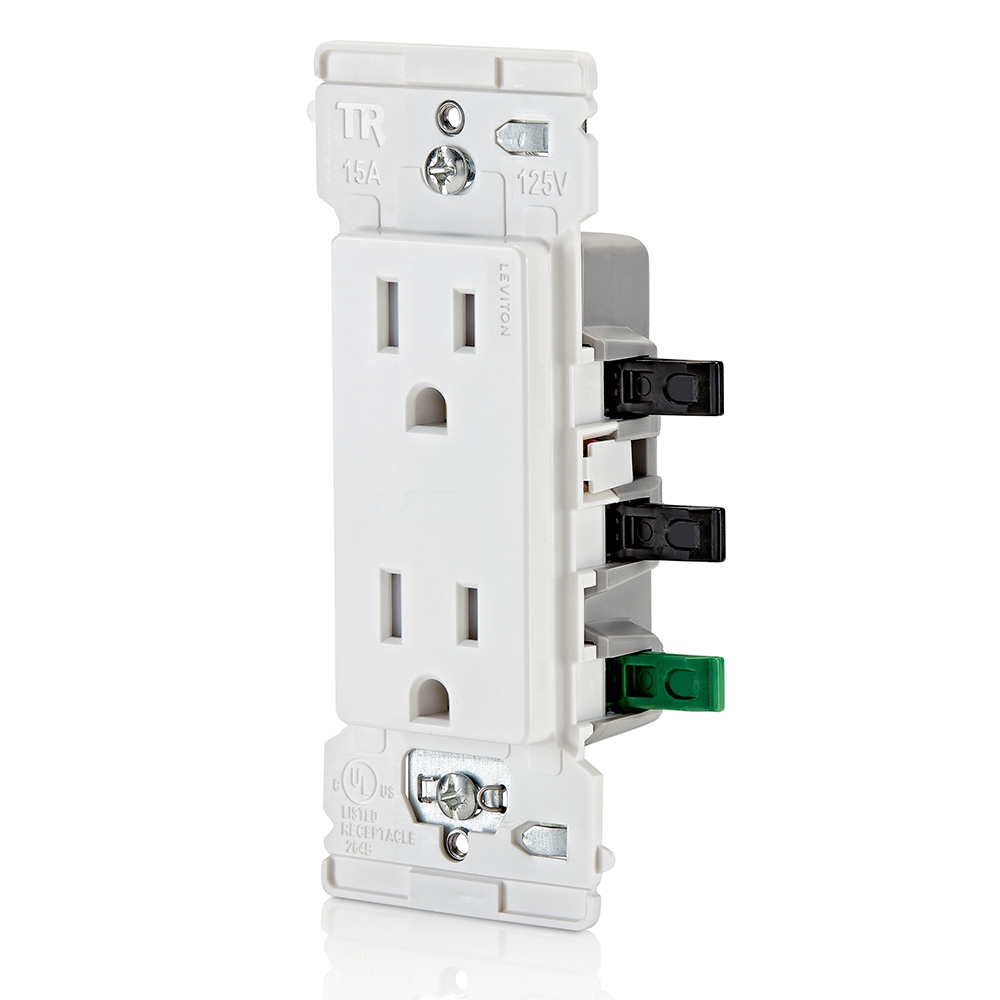

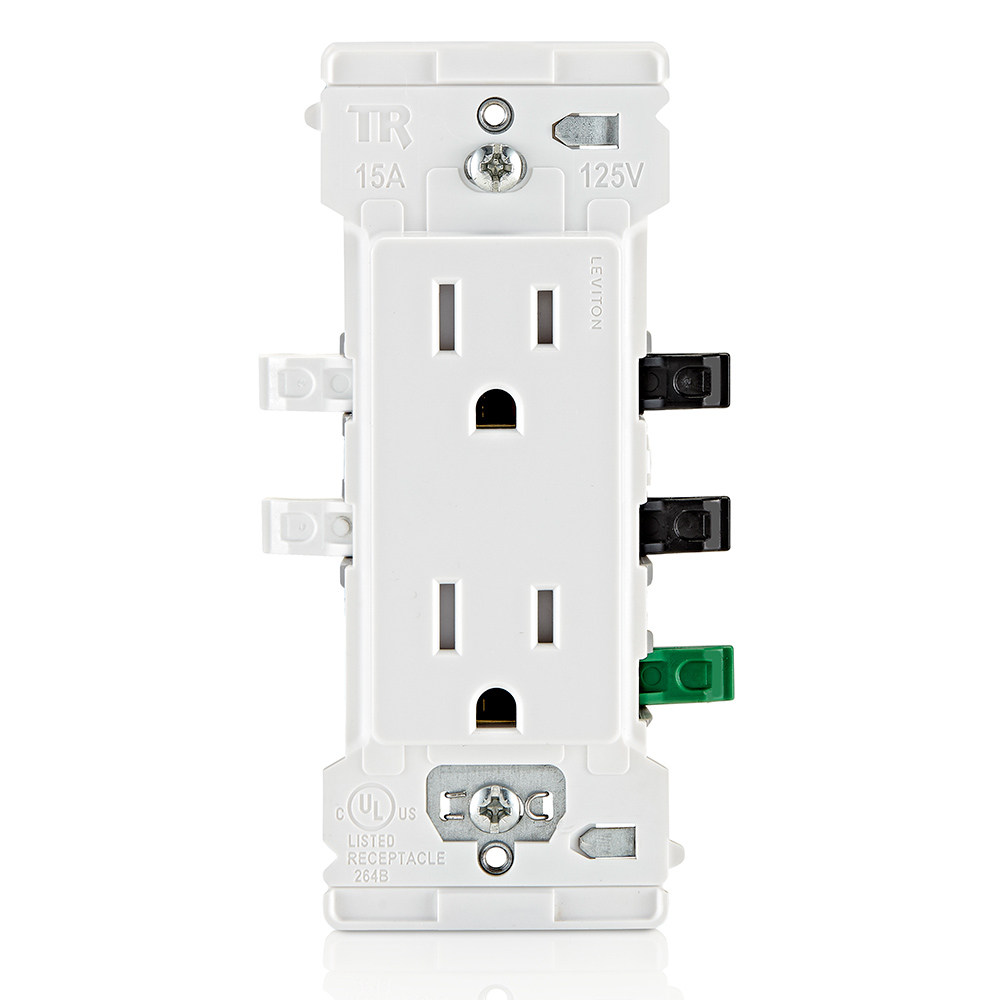

Decora Edge 15 Amp Tamper-Resistant Duplex Outlet, White
This Decora Edge 15 Amp Tamper-Resistant Duplex Outlet from Leviton is designed for residential and commercial electrical applications, providing a secure and efficient solution for power distribution. Ideal for use in living rooms, kitchens, bathrooms, offices, and basements, it integrates seamlessly with lighting solutions, wire and cable systems, and switchgear setups. The device features a Decora Duplex Receptacle design with tamper-resistant safety shutters and self-grounding capability, meeting UL and CSA standards for compliance and safety.
Specifications
- Amperage: 15 amperes
- Voltage: 125 V
- Device Type: Decora Duplex Receptacle
- Number of Poles: 2
- Number of Wires: 3
- Grounding: Self-Grounding
- Color: White
- Manufacturer Part #: E5325-W
- Country of Origin: China
- Product Weight: 0.1626 lbs
- Compliance: UL/CSA, NEC compliant
- NEMA Configuration: 5-15R

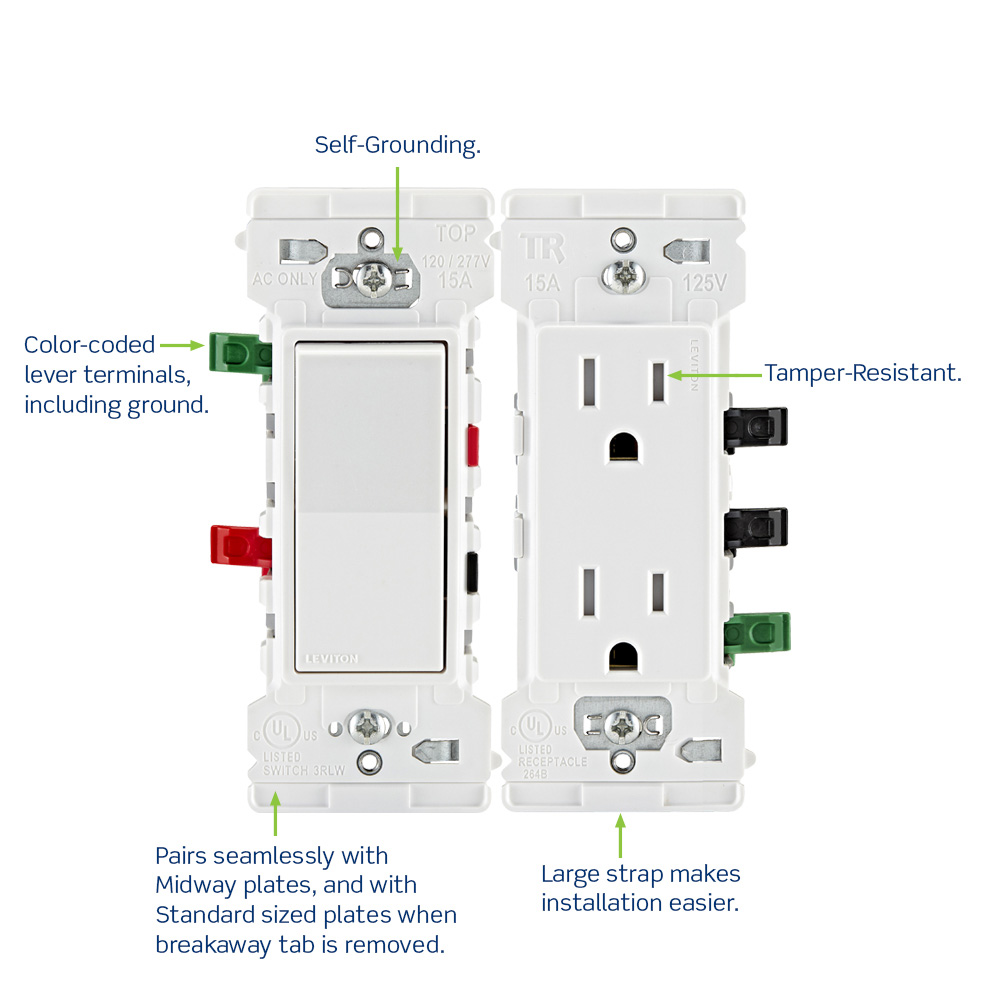

Features
- Tamper-Resistant design enhances safety by preventing foreign objects from entering the receptacle.

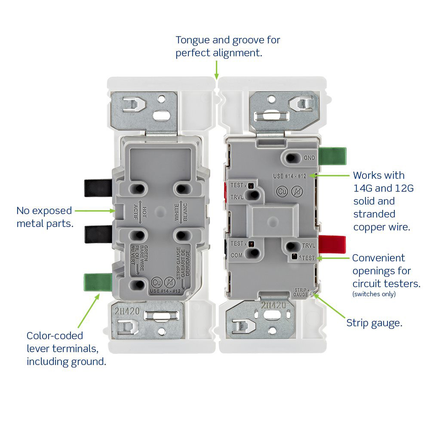

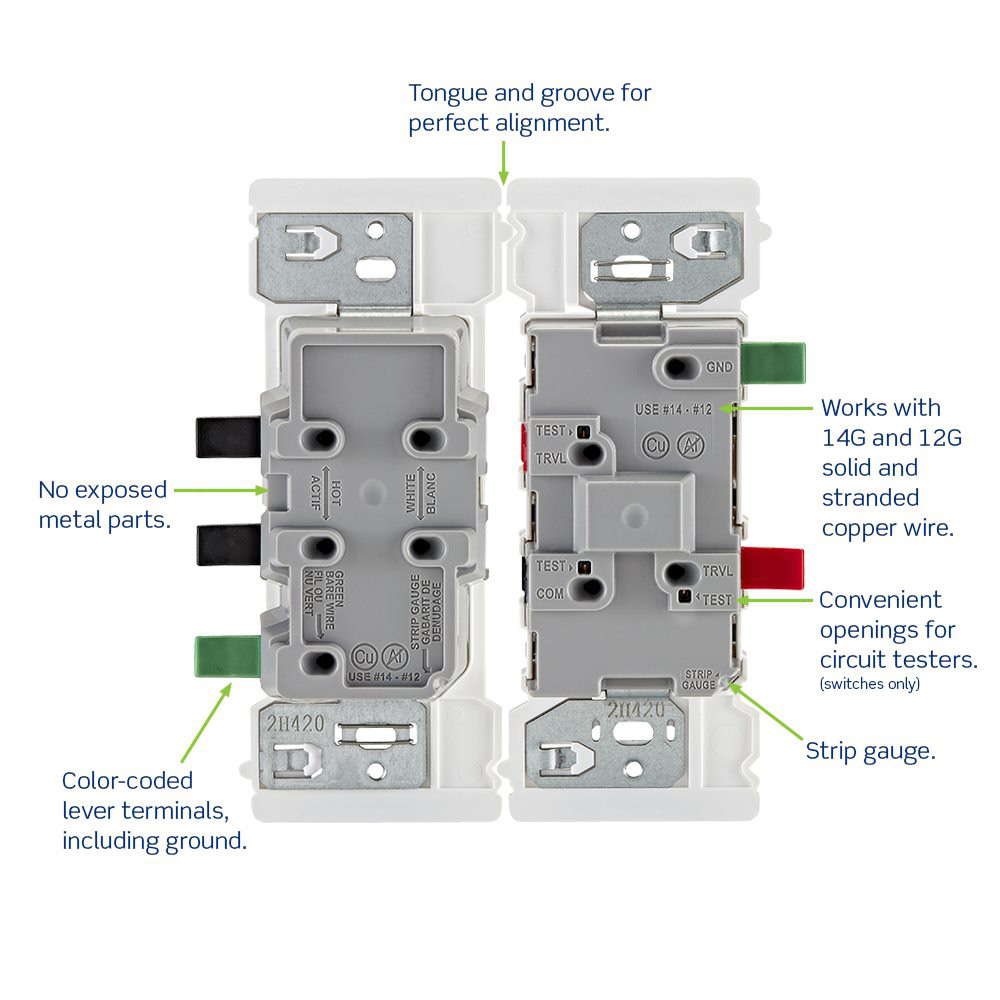

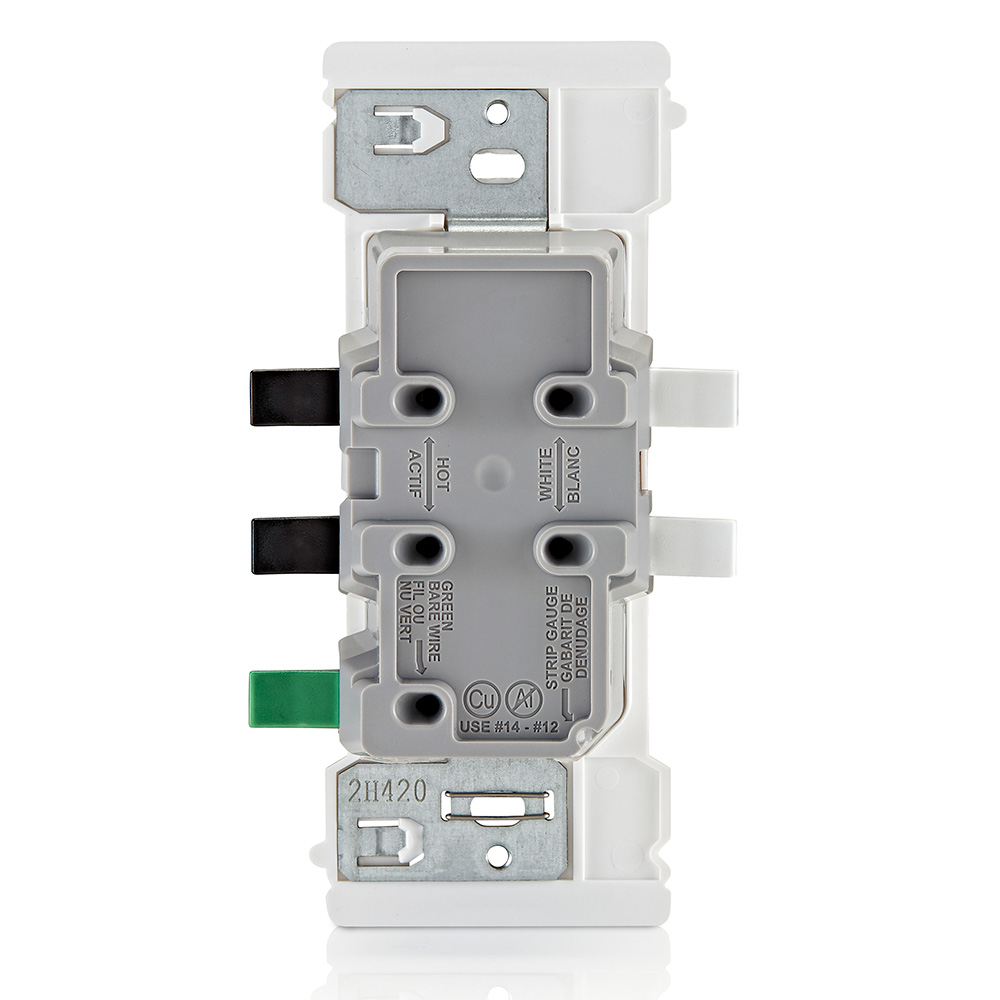

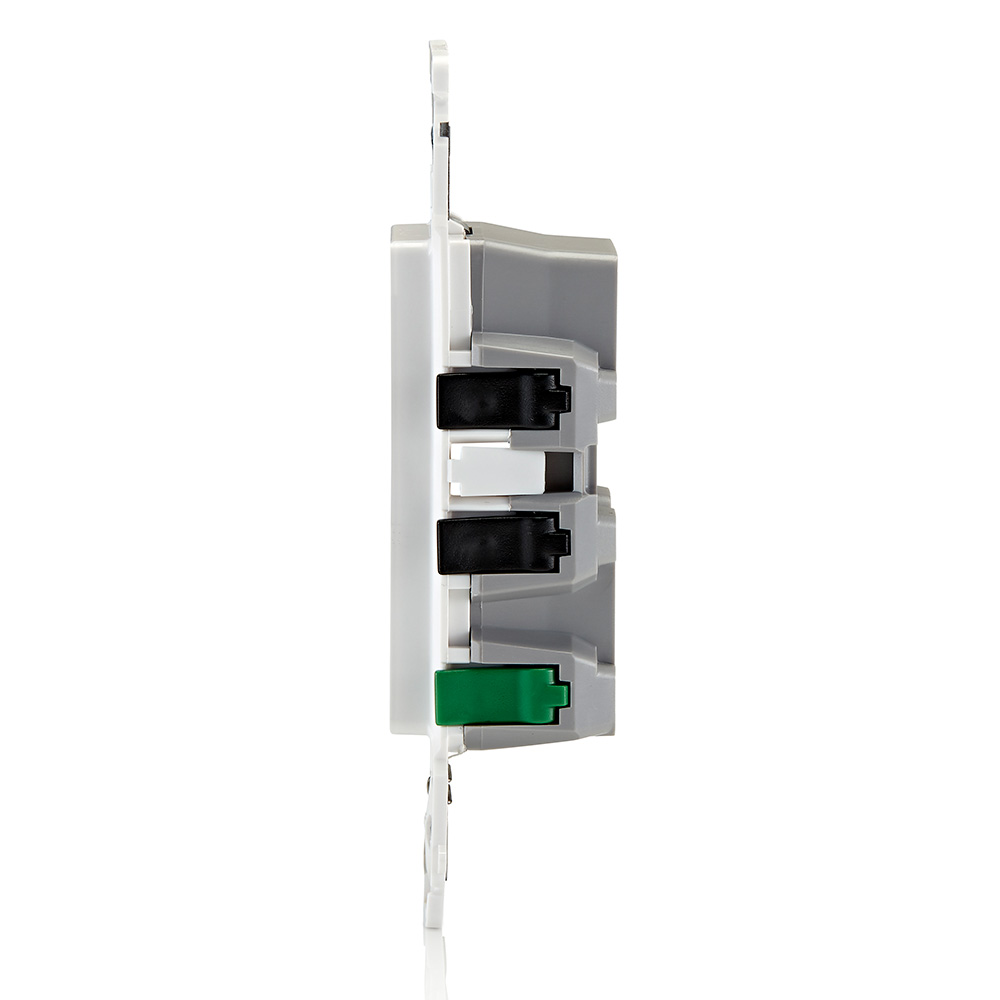

- Color-coded lever terminals, including ground, enable fast and accurate wiring connections.
- Self-grounding feature eliminates the need for additional grounding components.

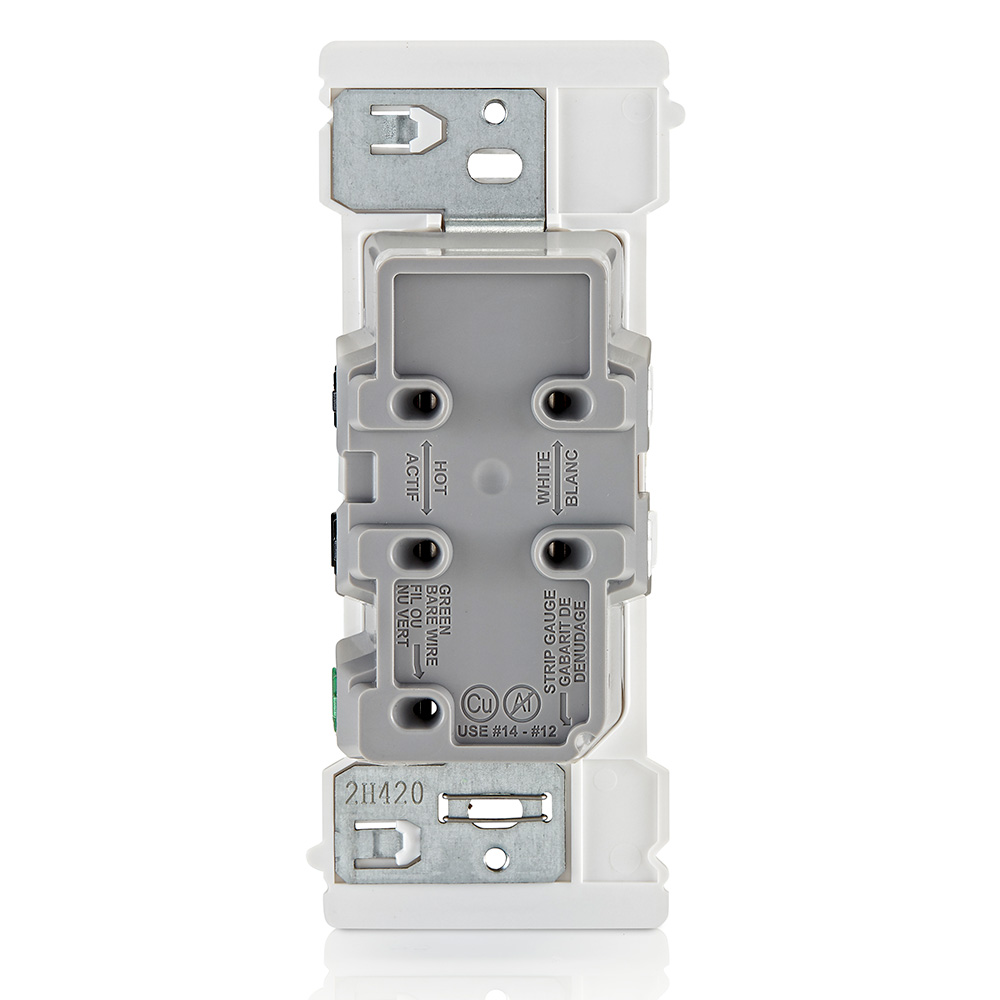

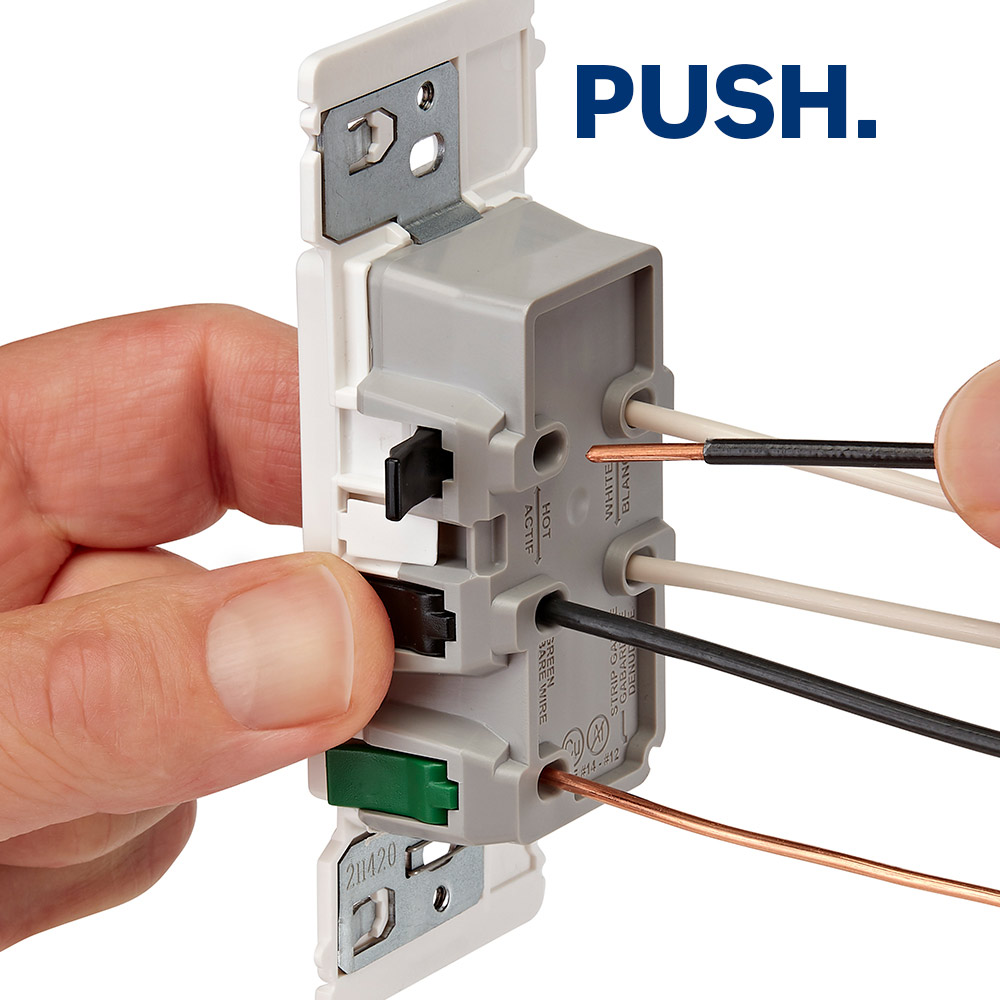

- Levers accept solid or stranded copper wire, 12 to 14 AWG, improving installation speed and reliability.
- Large plastic and steel strap facilitates easier installation and compatibility with both standard and large format wall plates.
- Design includes alignment tabs for grouped installations with other Decora Edge devices.
- No exposed metal parts after installation, enhancing electrical safety.

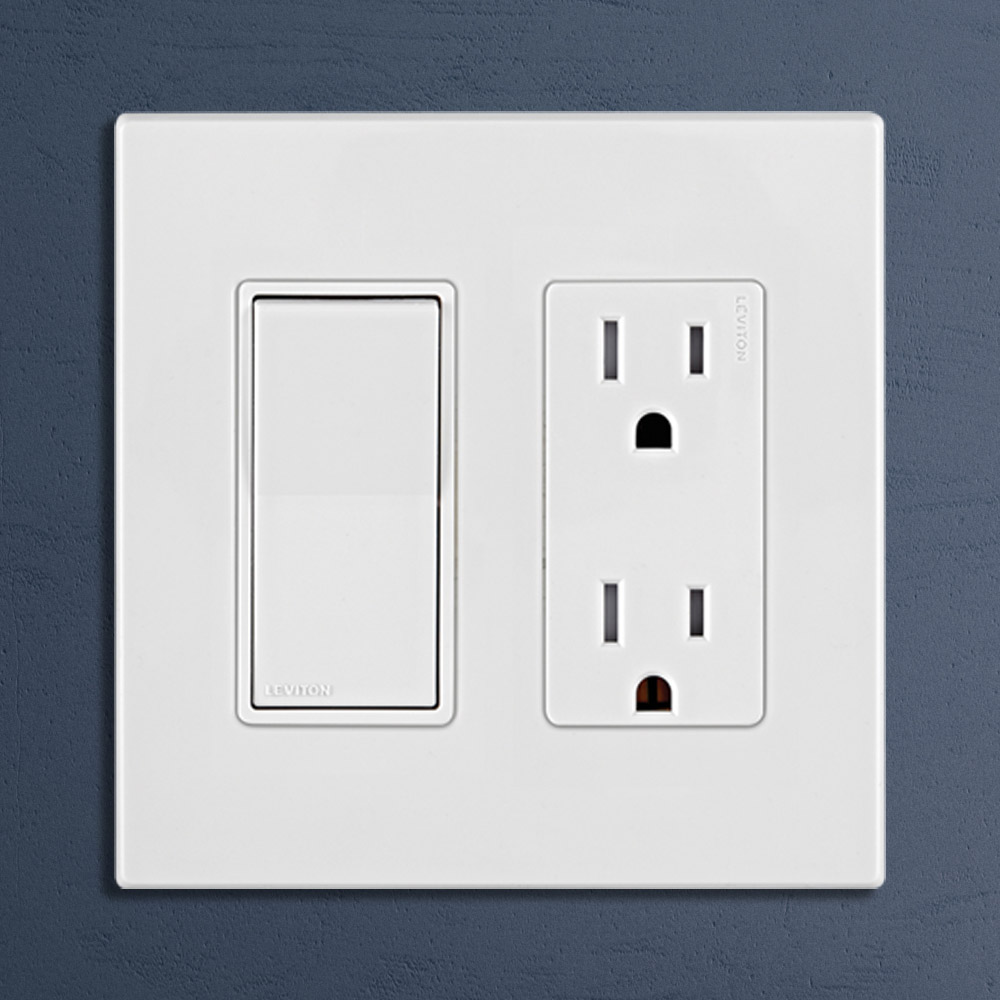

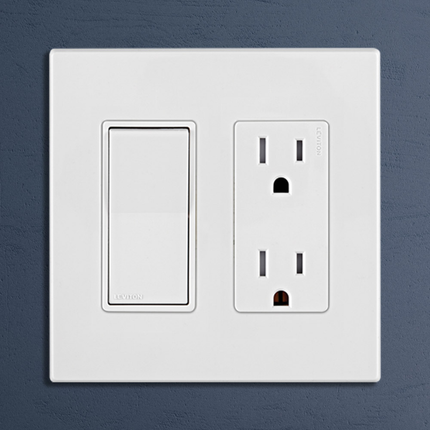

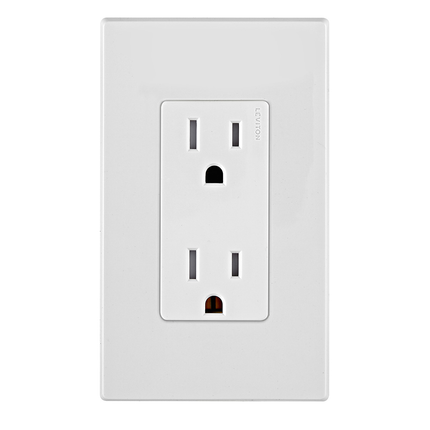

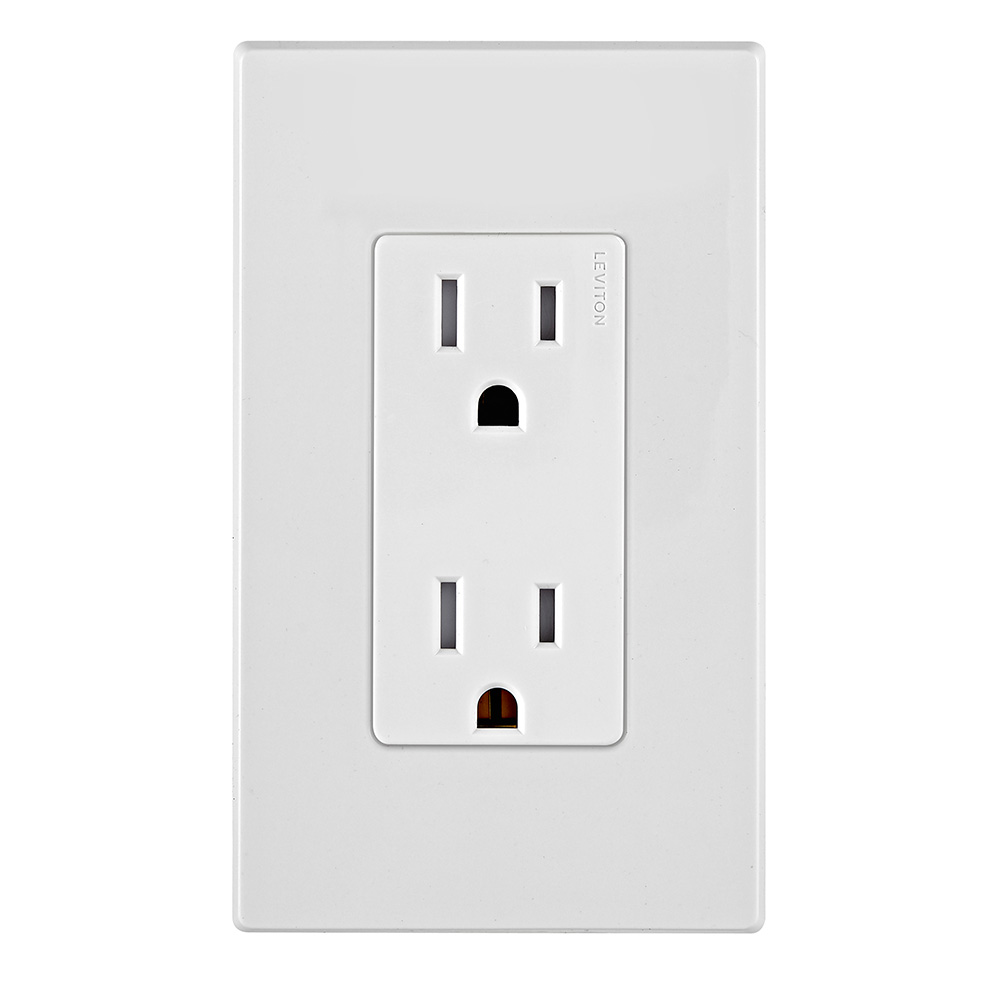

- Compatible with Decora and Decora Plus wall plates without screws.

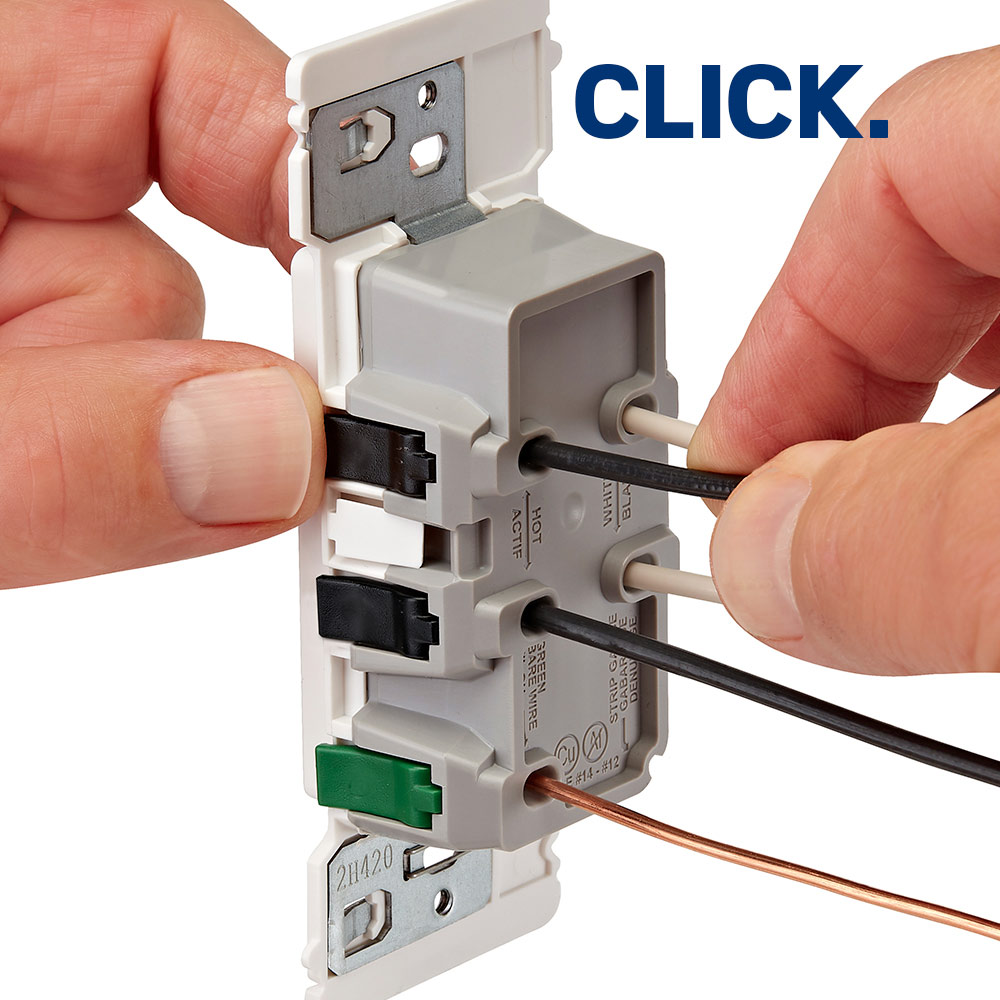

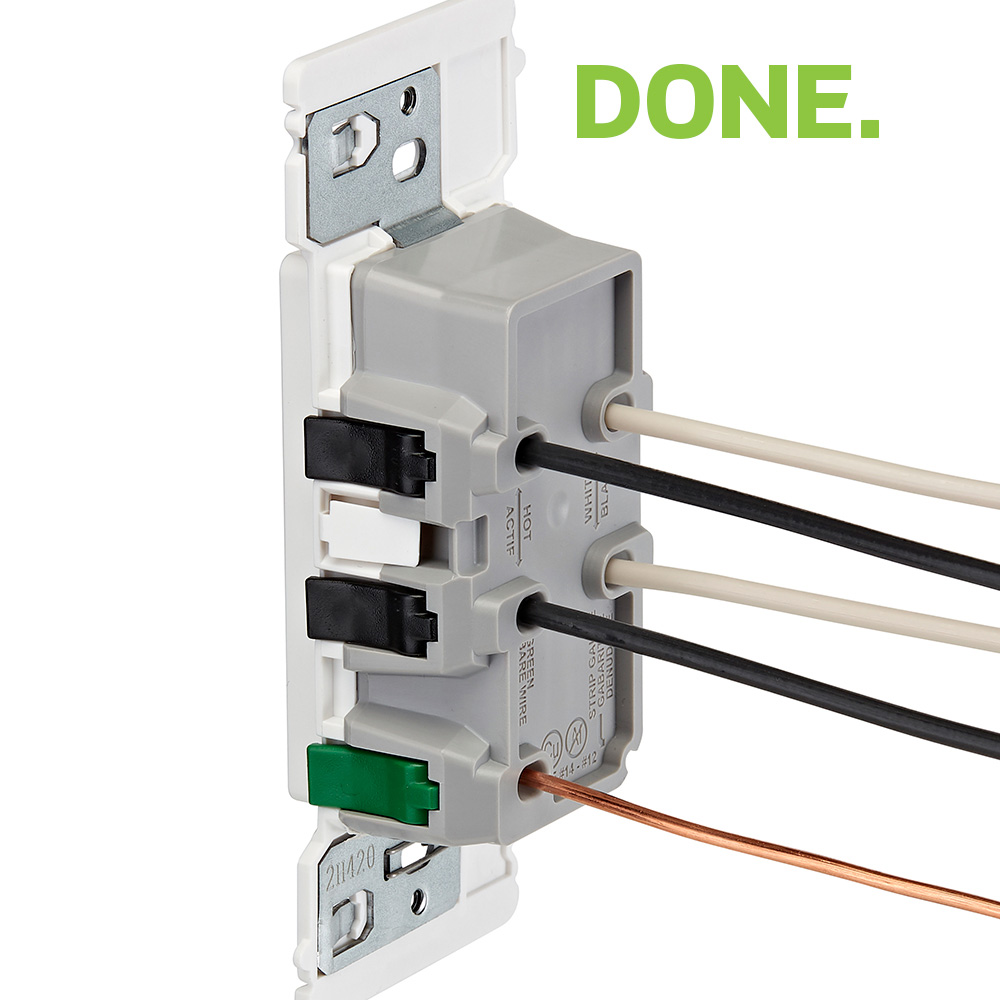

- Installation is simplified with a built-in wire stripping gauge and audible click confirmation when levers are properly closed.
- Supports dual circuit feed applications.
- Meets UL 498 and CSA C22.2 No. 442 standards with a 2-year limited warranty.
