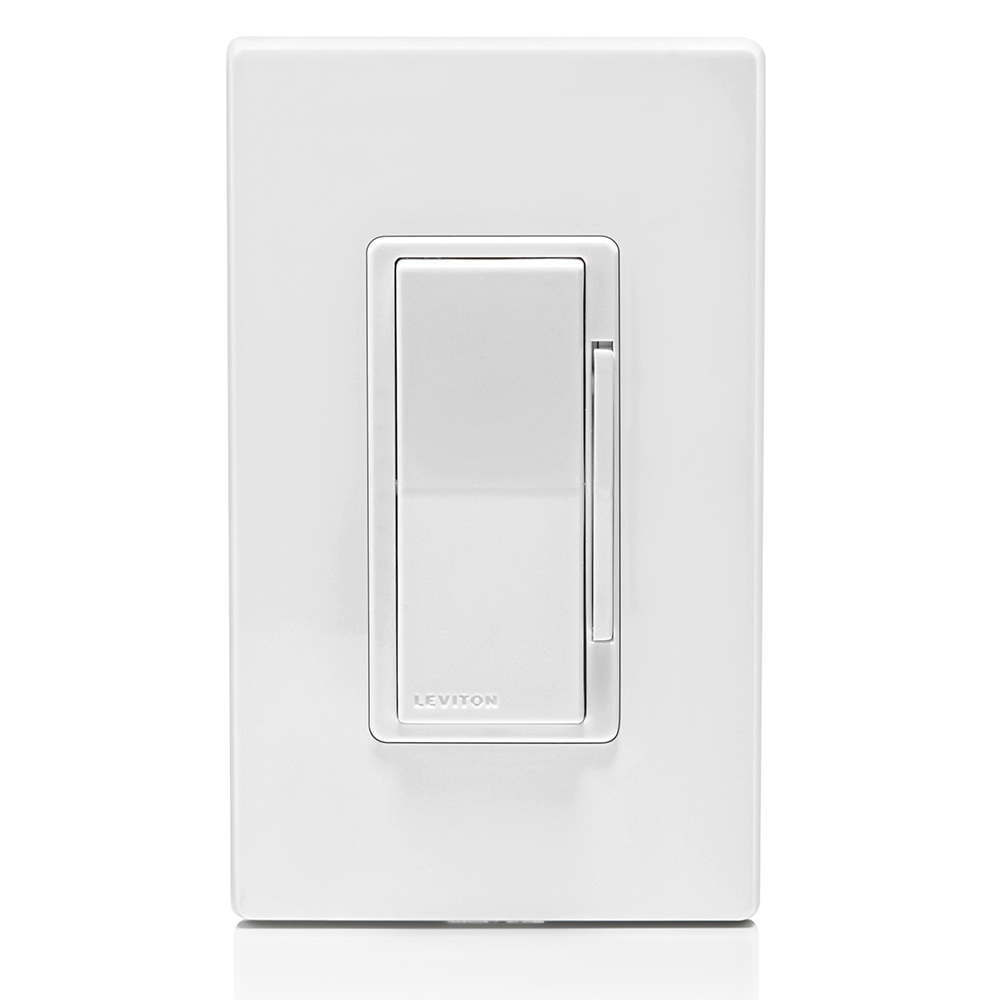

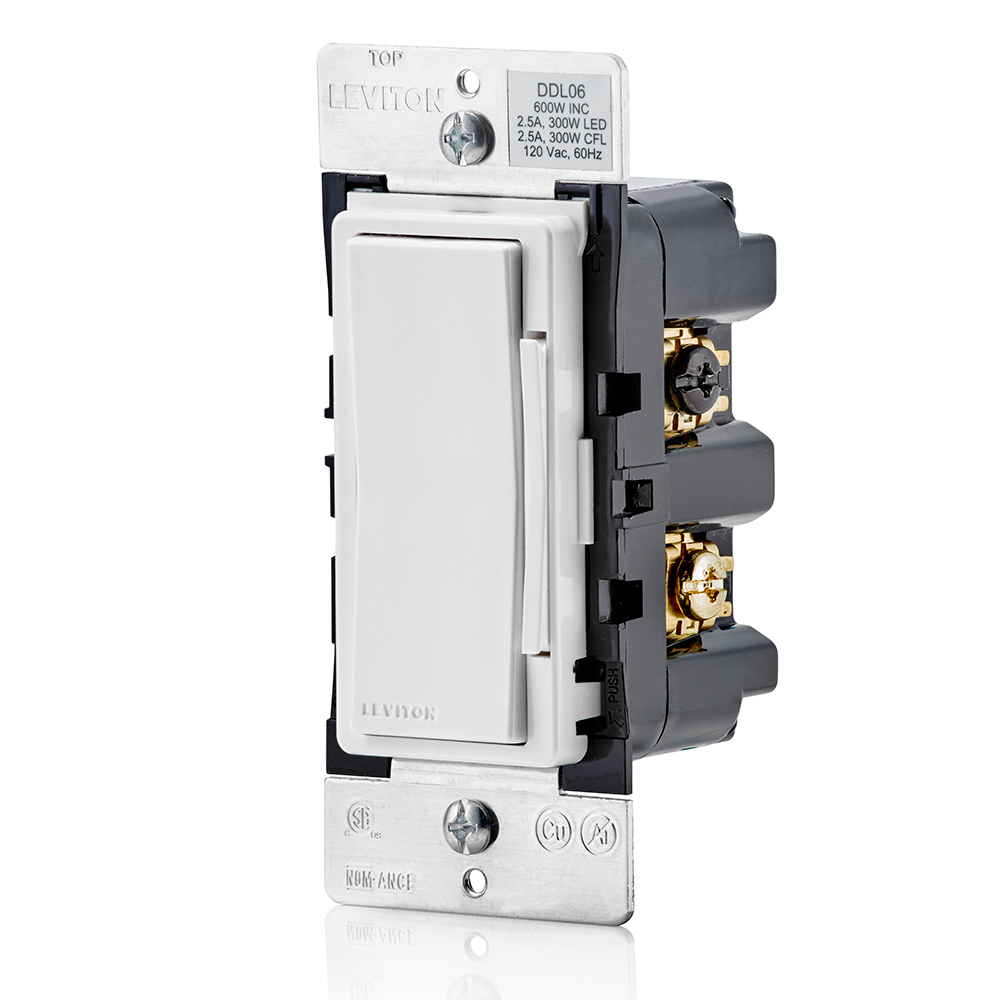

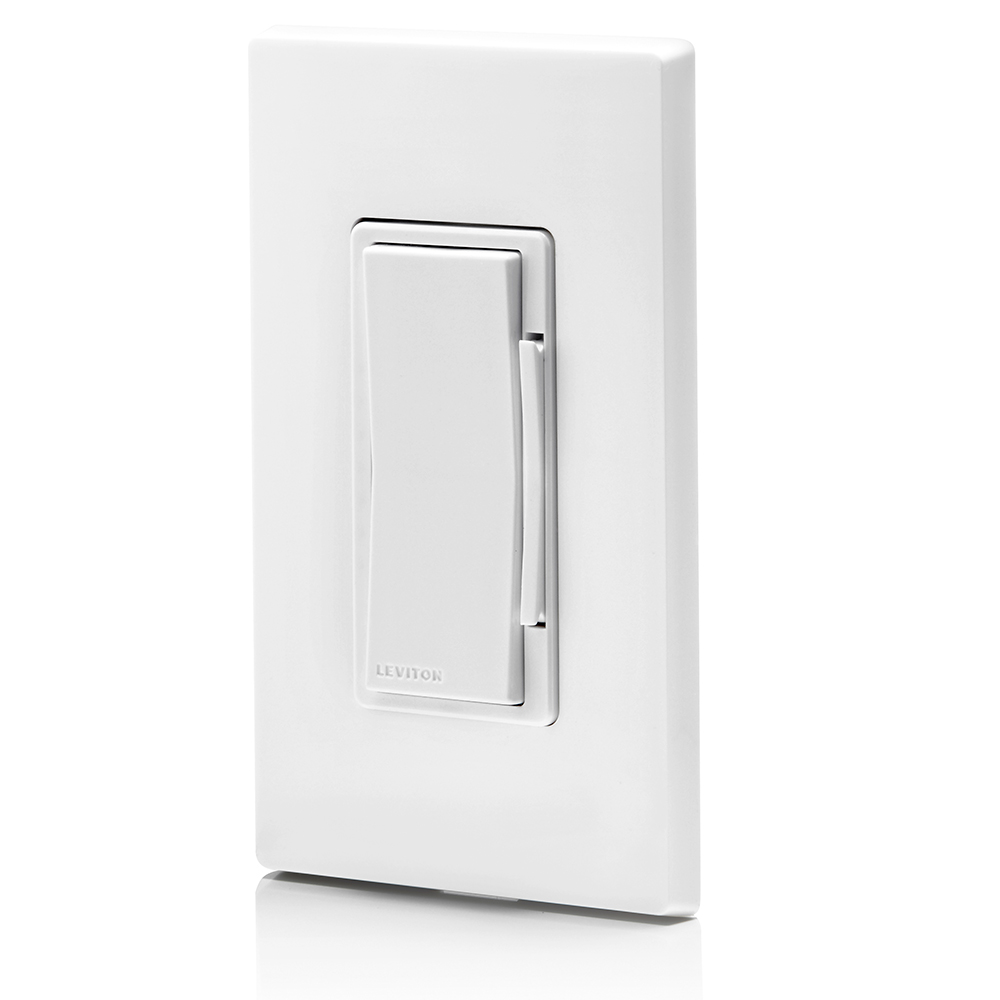

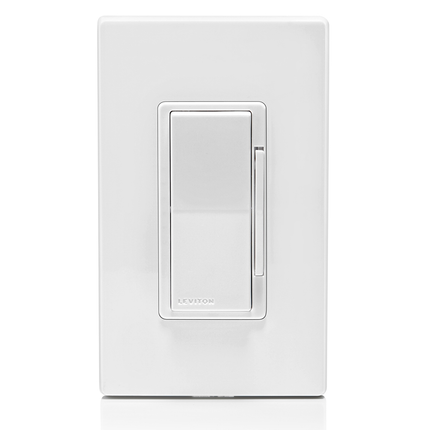

Decora Digital Dimmer and 24 hour Timer with Bluetooth Technology

This Decora Digital Dimmer and 24 hour Timer integrates Bluetooth technology to provide precise lighting control for residential applications. It supports dimming of up to 300W LED and CFL lamps, and 600W incandescent bulbs, operating at 120V, 60Hz. Designed for single pole and 3-way/multi-location control, it features an LED locator and brightness display for ease of use. The device is compatible with electrical distributor and lighting solutions applications requiring advanced dimming and timing control with wireless connectivity.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: DDL06-BLZ
• Color: Ivory (includes Ivory and Light Almond faceplates)
• Voltage: 120V, 60Hz
• Dimming Capacity: 300W LED and CFL, 600W Incandescent
• Control Type: Single Pole and 3-Way/Multi-location
• LED Indicator Color: Green
• Product Weight: 4.41 lbs
• Country of Origin: China

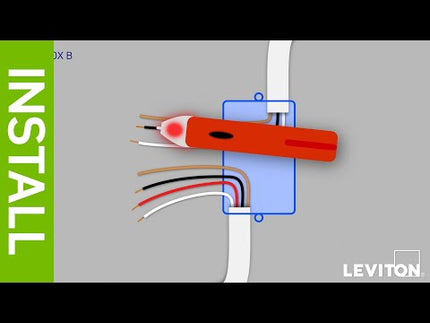

• Ground Wire Required for Installation

Features

• Bluetooth technology for wireless control and scheduling
• Integrated 24 hour timer for automated lighting control
• LED locator and brightness display for intuitive operation
• Includes white faceplate assembled on device; additional Ivory and Light Almond faceplates included
• Compliant with NEC 2017 and suitable for retrofit and replacement applications requiring ground wire
