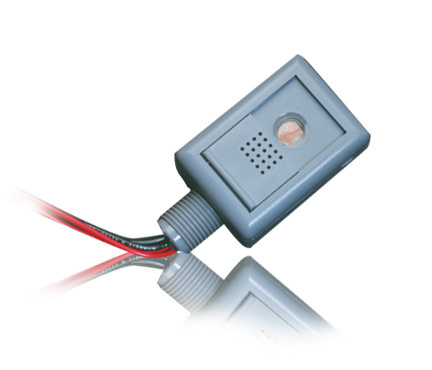

DC Low Voltage Photocell
SKU: #247477
Part: #EM-24D2
UPC: 754182926848
DC Low Voltage Photocell
SKU: #247477
Part: #EM-24D2
UPC: 754182926848
Next day delivery
Description
DC Low Voltage Photocell Lighting Control
The DC Low Voltage Photocell by WattStopper is designed for controlling exterior lighting through low voltage signaling. It integrates seamlessly with WattStopper power packs and lighting control panels, such as the Lighting Integrator and LP series panels, by detecting changes in ambient light levels and signaling these changes to the control system. This product is suitable for electrical distributors and switchgear suppliers focused on lighting solutions and wire and cable applications for exterior environments.
Specifications
- Manufacturer: WattStopper
- Manufacturer Part #: EM-24D2
- Voltage: 24 VDC
- Dimensions: 12.0 in (width) x 2.0 in (depth) x 1.5 in (height)
- Product Weight: 0.2 lbs
- Country of Origin: United States
- Made in USA: Yes
- Relay Contact Rating: 1 Amp at 30 VAC/VDC
- Power Input: 24 VDC, 1 VA
- Light Sensing Range: 1–15 footcandles (10.8–161.5 lux)
- Enclosure: Rain-tight gray plastic
- Mounting: 1/2” threaded male conduit base for conduit fittings or junction boxes
- Warranty: Five year warranty
Features
- Low voltage photocell automatically turns exterior lighting on and off based on ambient light levels
- Compatible with WattStopper lighting control panels and power packs
- Normally open, isolated relay contacts close below dark setpoint and open above light setpoint
- 8-second time delay and built-in setpoint deadband prevent cycling
- Adjustable aperture window for varying ON setpoint
- Simple to wire and install with standard conduit fitting
- Mounts on building exterior or roof with light sensing window facing north
