Performance Overview

• Load Capacity: 300 lbs
• Size: 40 ft
• Style: Multi Section
• Reach Height: 37 ft
• Approx. Closed Length: 20 ft

Features

• Interlocking Side Rails with internal rail guides on bottom of fly section securely connect rails

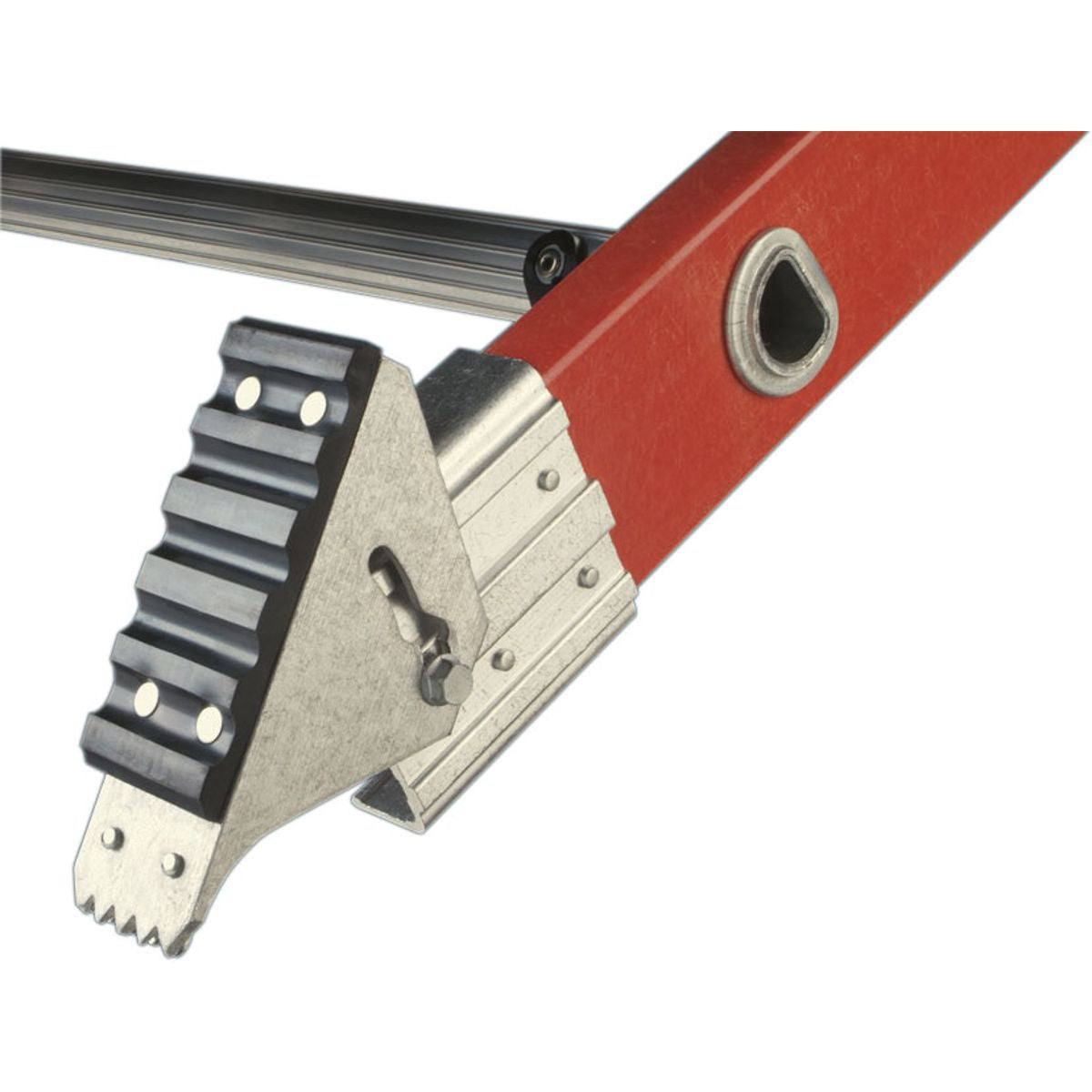

• Combination rail shield bracket and shoe with SHU-LOK® and slip-resistant pad
• 1-5/8 in slip-resistant TRACTION-TRED® D-rungs

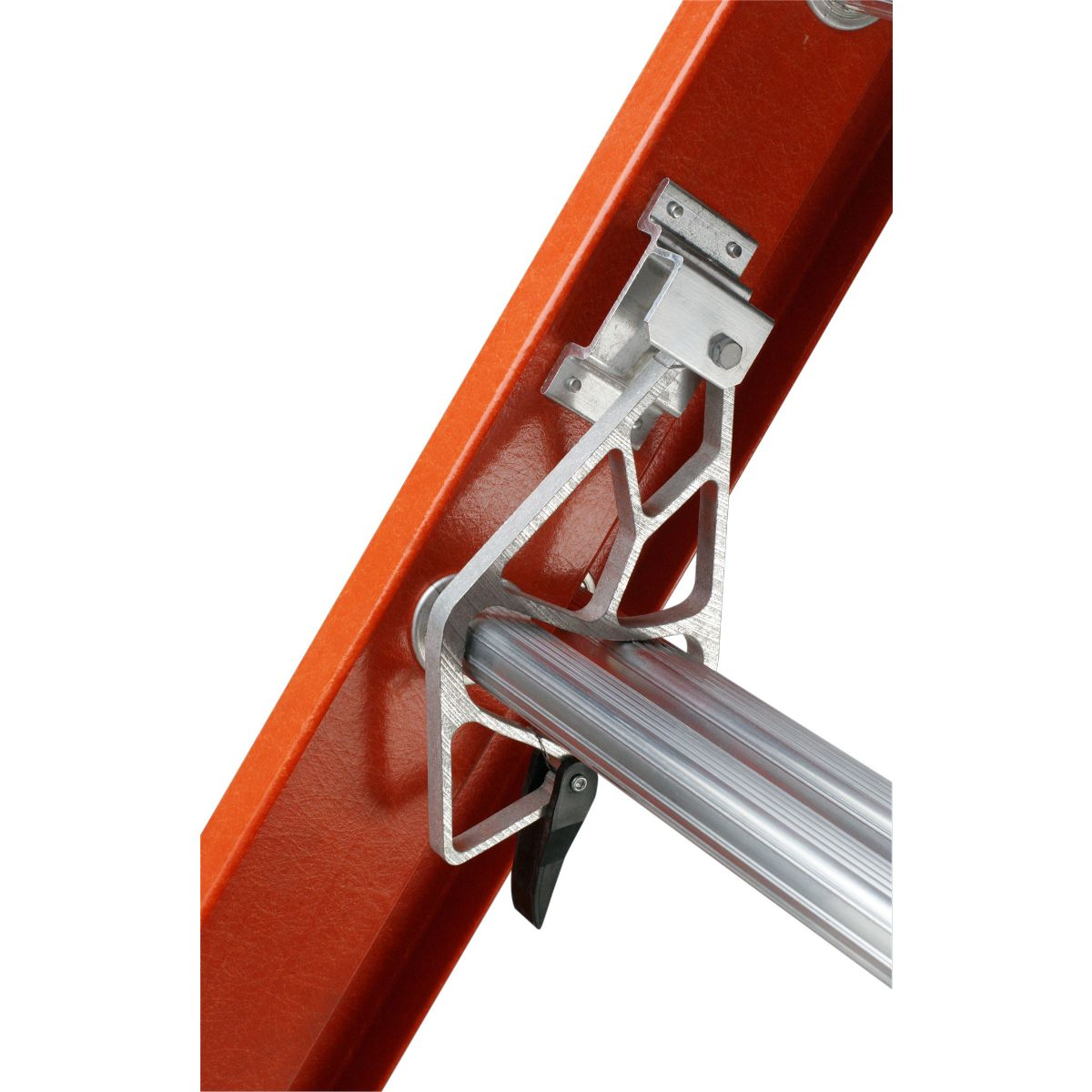

• Heavy Duty extruded rung locks are spring loaded to operate smoothly
• Smooth operating pulley with polyester rope
• Exclusive ALFLO® rung joint means TWIST-PROOF® performance
• Pre-pierced holes for easy field installation of accessories
• Base and fly separate easily to use base section as single ladder
• Molded rung braces on bottom step for increased durability

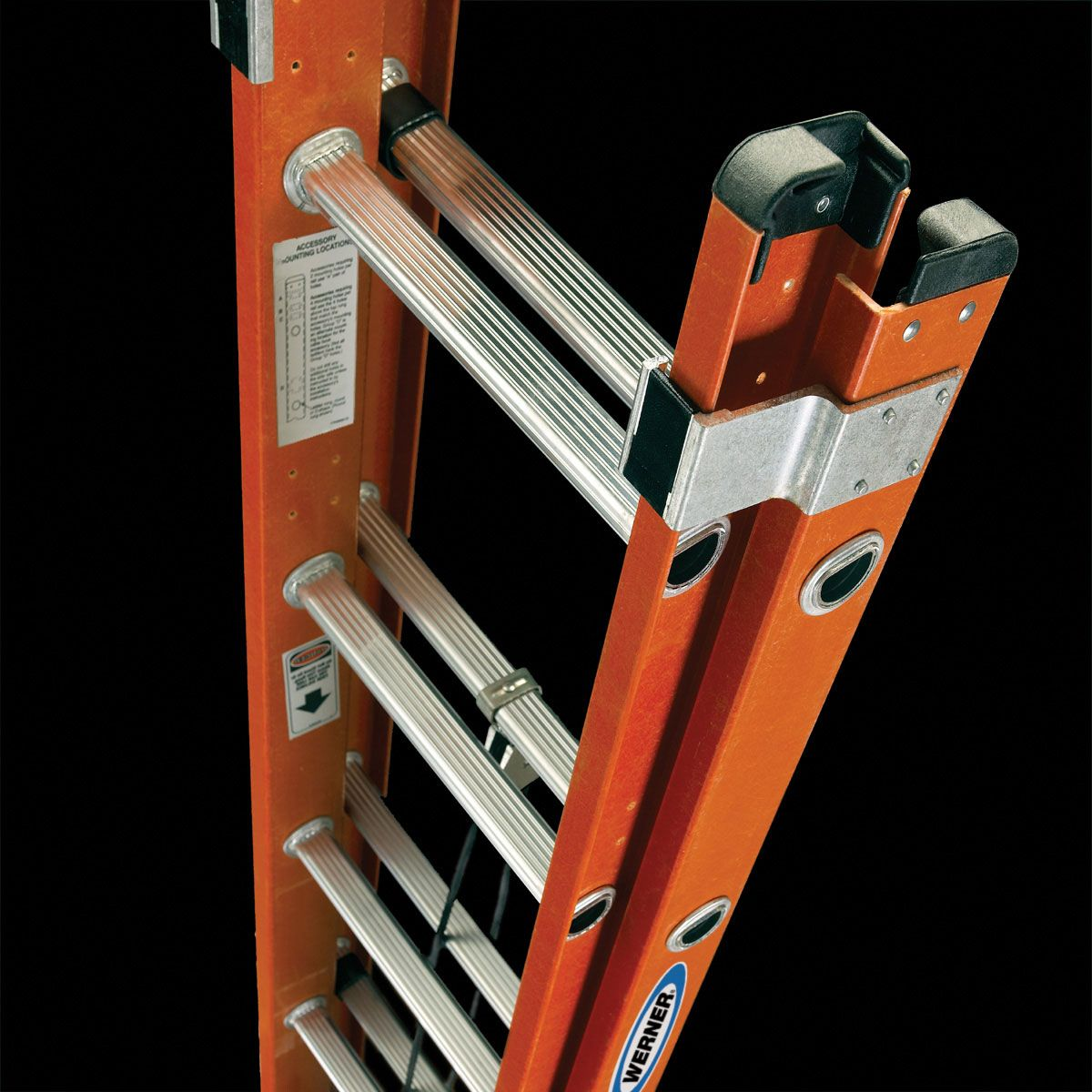

• Two sets of external guides at top of base section securely interlock rails
• Mar-resistant molded end caps

Specifications

• Material: Fiberglass
• Number of Sections: 2
• Max Working Length: 35 ft
• Load Capacity: 300 lbs
• Reach Height: 37 ft
• Foot Material: Slip-resistant pad
• Approx. Cu. Ft. Per Unit: 17
• Base Width: 19 in outside shoes
• Performance Rating: 4 star
• Extended Length: 35 ft
• Style: Multi Section
• Approx. Closed Length: 20 ft
• Certifications: ANSI A14.5 (2007); OSHA
• Size: 40 ft
• Type: Type IA Duty Rating
• Rung Type: D-Rung
• Approx. Shipping Wt. Lbs.: 88.5

Dimensions

• Fly Width: 16 in
• Rung Dimension: 1-5/8 in
• Rails Dimension: 3-5/16 in
• Flange Dimension: 1-3/16 in

Accessories

• 91-2 Adjustable Pole Lash with Angle Brackets
• AC10-20-03 3 Rung Long Body Ladder Jack
• 74-1 Cable Hook
• AC10-14-02 2 Rung Short Body Ladder Jack
• 94-2 Ladder CInch
• AC10-20-02 2 Rung Long Body Ladder Jack
• PK70-2 LeveLok Base Units
• AC22 Paint Can/Bucket Hanger
• AC20 Paint Can Hook
• PK70-1 LevelLok Leveler with Base Units
• 92-88 Cable Hook and V-Rung Assembly
• PK80-2 Level-Master Automatic Leveler

Additional D6200-2 Series Models

• D6216-2
• D6220-2
• D6236-2
• D6224-2
• D6228-2
• D6240-2
• D6232-2
