D-3502-2, Conduit Cable Support by O-Z Gedney

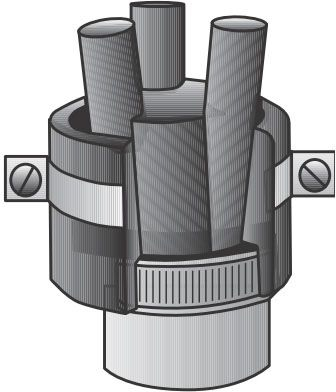

The D-3502-2 Conduit Cable Support is a retrofit type cable support designed for supporting non-armored electrical cables in vertical conduit risers indoors at voltages up to 600 Vac. Manufactured by O-Z Gedney, this product is engineered to relieve strain on cable terminations and panel interiors by securely supporting cables within conduit raceways or risers. It is suitable for electrical distributors and switchgear suppliers requiring reliable cable support solutions that comply with National Electrical Code (NEC) spacing and support requirements.

Specifications

• Material: Molded Canvas Bakelite (Body)
• Product Weight: 2.6 lbs
• Manufacturer Part Number: D-3502-2
• Certification: UL Listed (ANSI/UL 514B, UL E-11853), CSA Certified (C22.2 No.18.3, CSA 011584)
• Application Voltage: Up to 600 Volts
• Conduit Size Compatibility: 3-1/2 inch conduit
• Design: Retrofit split Bakelite body with pOZi-grip‚Ñ¢ "S-style" wedging plug
• Band: Steel, zinc plated with stainless steel bolts and nuts
• Inside Surface: Knurled to grip cables securely without damaging insulation

Features

• Retrofit installation allows mounting after conductors are pulled and terminated
• Split body design seats on existing conduit bushing and securely holds cables with a steel band
• pOZi-grip‚Ñ¢ impregnated hardwood wedging plug provides maximum cable support without damaging insulation
• Meets or exceeds NEC requirements for cable support spacing and load capacity
• Supports two or more wires indoors at voltages up to 600 V
• Durable molded canvas Bakelite halves with knurled inner surface for enhanced grip
• Steel band and stainless steel hardware ensure corrosion resistance and secure fastening
