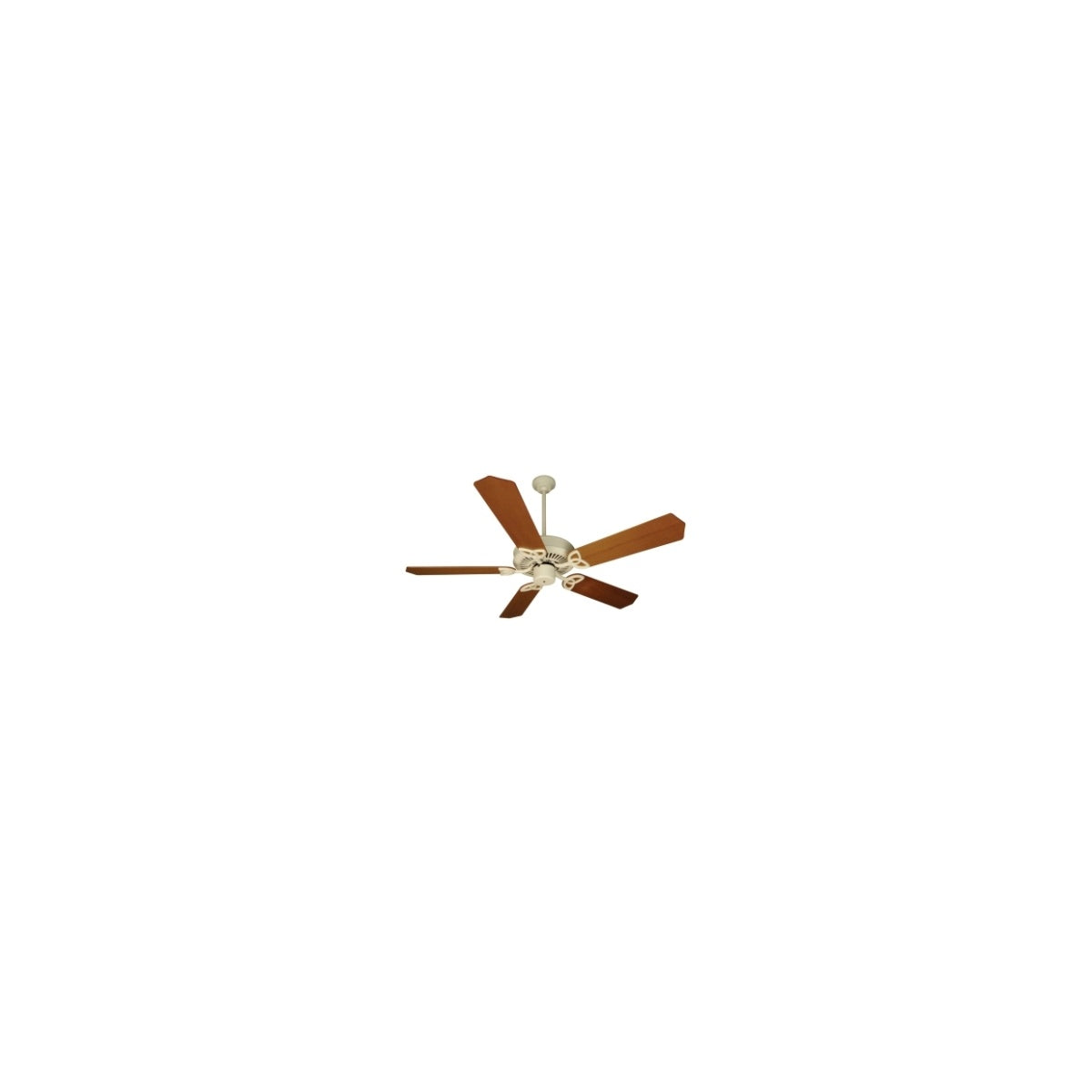

CXL52AW Ceiling Fan - Customizable Ceiling Fan

The CXL52AW Ceiling Fan by Craftmade is a customizable ceiling fan designed for versatile applications in residential and commercial settings. It features a heavy-duty 3-speed reversible motor suitable for efficient air circulation. This fan is ideal for electrical distributors and lighting solutions providers looking to offer adaptable wire and cable-compatible ceiling fans with multiple blade and light kit options. The fan supports dual mounting on flat or angled ceilings and includes 3" and 6" downrods for flexible installation.

Specifications

• Blade Sweep Options (in.): 44, 52, 54, 56
• Number of Blades: 5
• Blade Pitch (degrees): 14
• Motor Size (MM): 188 x 15
• Amps at High Speed: 0.58
• Watts at High Speed: 68.8
• Energy Guide Watts: 44
• Energy Guide CFM: 3711
• Energy Guide CFM per Watt: 85
• High Speed Airflow (CFM): 5415
• Low Speed Airflow (CFM): 2241
• Shipping Weight (lbs.): 17.9
• Downrod Lengths (in.): 3 and 6
• Blade Options: Type 1, Type 2
• Compatible Controls: CXL-ICS-AG Remote & Wall Controls
• Light Kit Options: Bowl Light Kits, Universal Light Kits, or Customizable (Universal Fitters and 2 1/4" Glass)
• Finish: Antique

Features

• Heavy-Duty, 3-Speed Reversible Motor
• Includes 3" and 6" Downrods for Mounting Flexibility
• Blades Sold Separately for Customization
• Dual Mount Capability for Flat or Angled Ceilings
• Customizable in 10 Finishes to Match Any Style: Traditional, Transitional, or Modern
• Remote and Wall Control Compatibility for Convenient Operation
