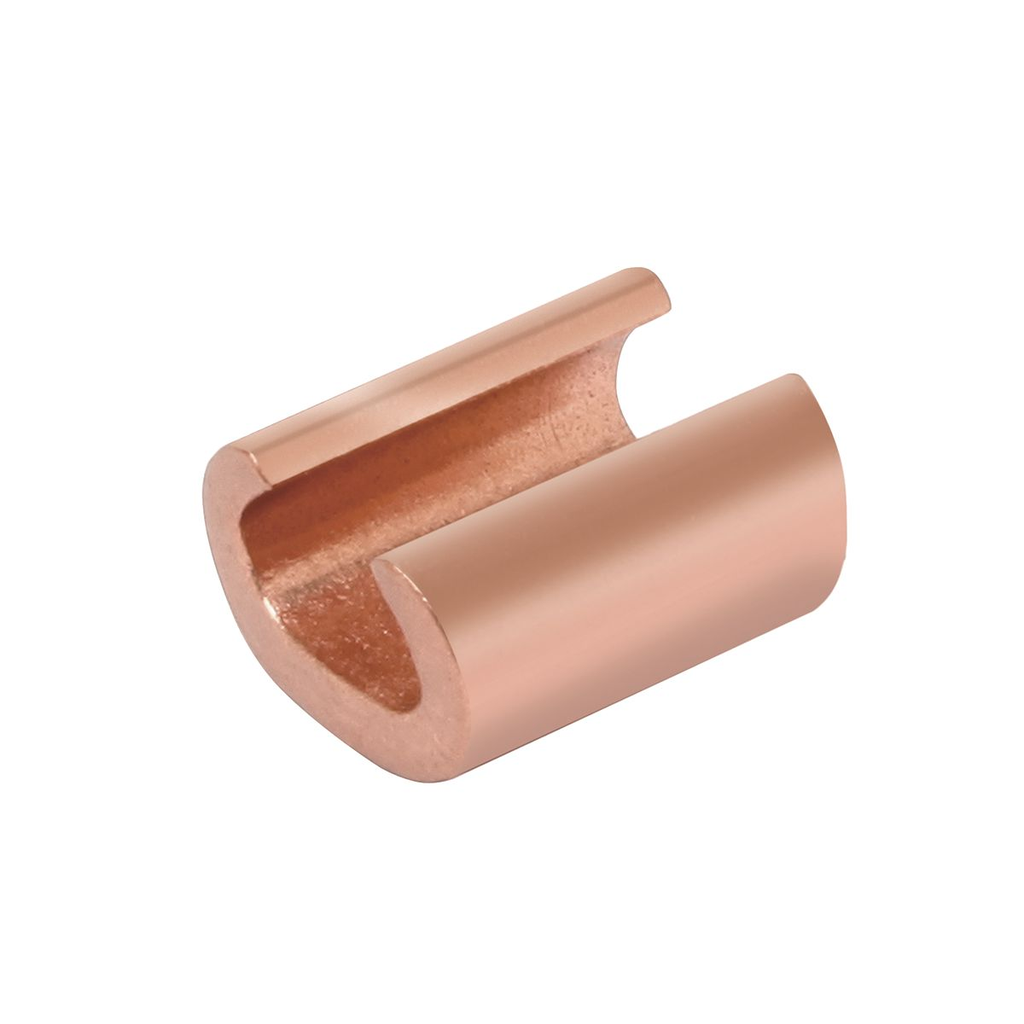

CU Compression C Shape Compression Connector by Burndy – Copper Electrical Connector

The CU Compression C Shape Compression Connector is designed for making tap or parallel copper connections in electrical installations. Suitable for use by electrical distributors and switchgear suppliers, this connector supports a range of copper conductor sizes, providing reliable and efficient connectivity in wire and cable applications. It operates at voltage ratings from 600 volts up to 35 kV, ensuring suitability for a variety of electrical distribution and lighting solutions.

Specifications

• Material: Copper
• Conductor Type: Copper Solid and Stranded
• Conductor Size Range: 2 AWG (Solid and Stranded), 2 Sol. - 2 Str.
• Voltage Rating: 600 Volts to 35 kV
• Dimensions: Length Overall 0.67 in (17 mm), Height 1.05 in
• Certification: cULus No, UL Listed Yes, RoHS Compliant
• Plating: Unplated
• Manufacturer Part #: YC2C2
• Country of Origin: United States
• Weight: 0.0800 lbs

Features

• Range-taking connector lowers inventory requirements
• Compact size, easy to tape and insulate connections
• High conductivity wrought copper provides low resistance and excellent electrical conductivity
• Made in USA
