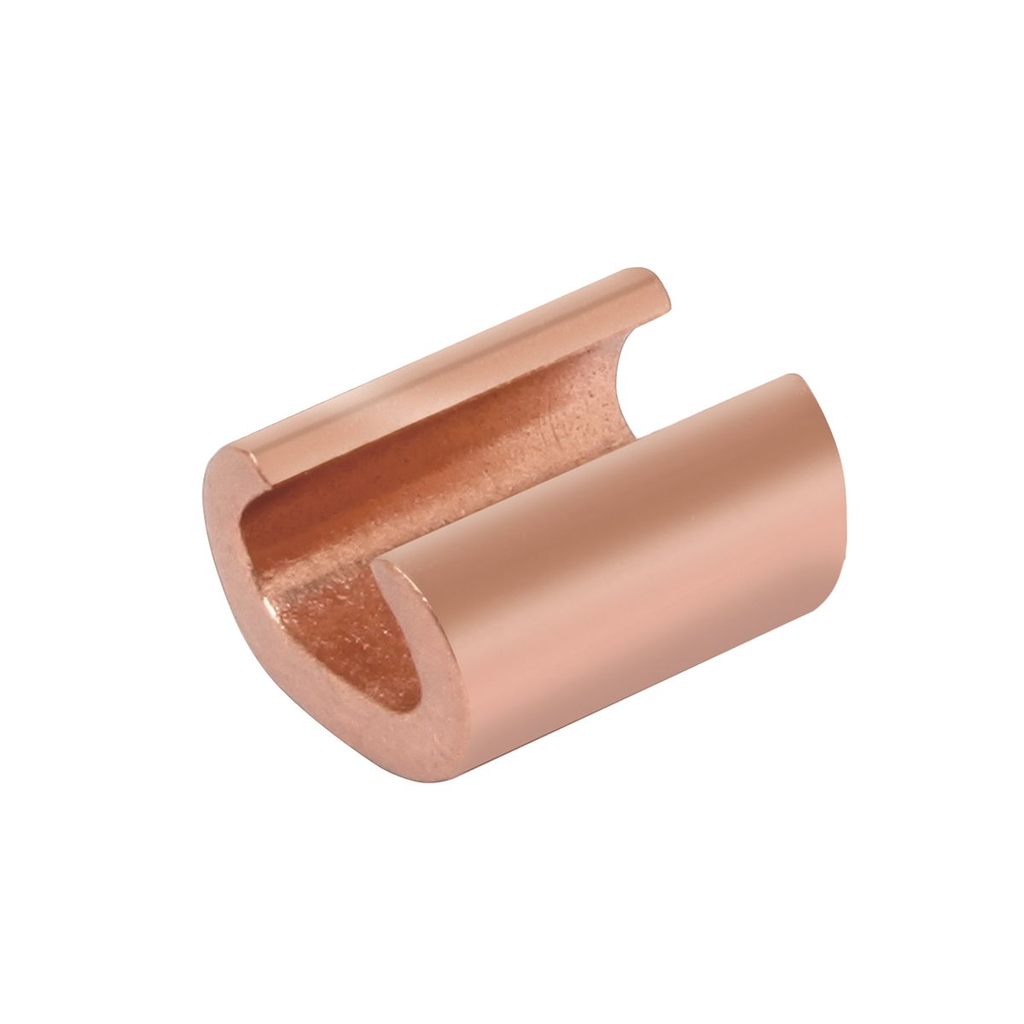

CU Compression C Shape Compression Connector – Copper Electrical Connector

The CU Compression C Shape Compression Connector is designed for making tap or parallel copper connections in electrical distribution systems. Suitable for use by electrical distributors and switchgear suppliers, this connector supports a range of copper conductor sizes and offers reliable performance for lighting solutions, wire and cable installations, and general electrical applications.

Specifications

• Application: For Range Of Copper And Making Tap Or Parallel Copper Connections
• Material: Copper
• Voltage Rating: 600 Volts to 35 kV
• Conductor Type: Copper Solid and Stranded
• Conductor Run Range: 4 AWG - 2 AWG (Solid), 4 Sol. - 2 Str. (Stranded)
• Conductor Tap Range: 8 AWG - 4 AWG (Solid), 8 Sol. - 4 Str. (Stranded)
• Dimensions - Length Overall: 0.67 in (17 mm)
• Dimensions - Height: 0.98 in
• Width: 0.62 in
• Certification: UL Listed, cULus No, UL Recognized No, ETL No, CSA Approved No
• RoHS Compliant: Yes
• Standards Met: UL 486A, UL 486B
• Plating Type: Unplated
• Country of Origin: Mexico
• Manufacturer Part #: YC2C4
• Product Weight: 0.0800 lbs

Features

• Range-taking connector lowers inventory requirements
• Compact size facilitates easy taping and insulation
• High conductivity wrought copper ensures low resistance and excellent electrical conductivity
