CU CMP Splice Short 600 MCM
SKU: #305515
Part: #SC-600
UPC: 662381037152
CU CMP Splice Short 600 MCM
SKU: #305515
Part: #SC-600
UPC: 662381037152
Description

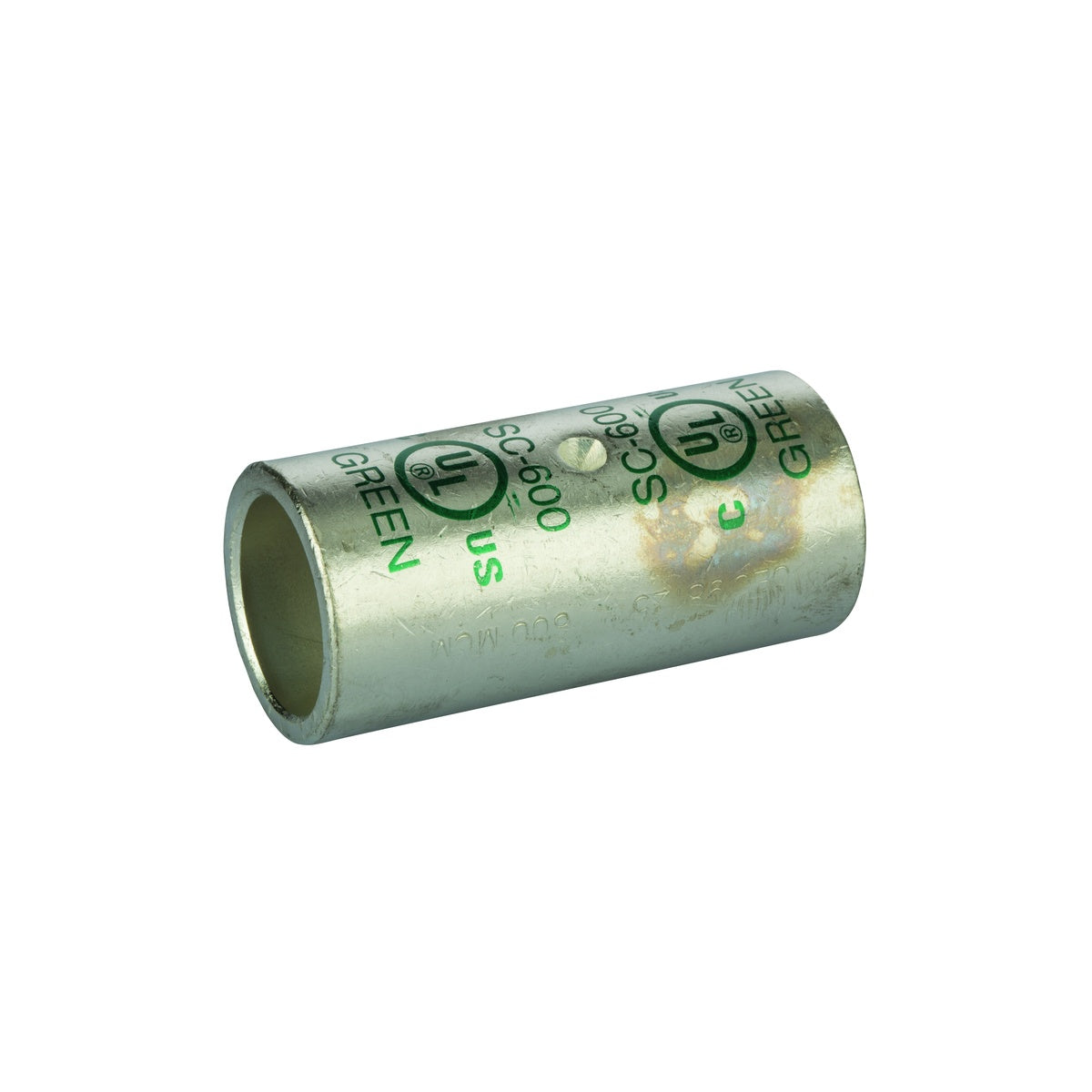

CU CMP Splice Short 600 MCM Copper Compression Connector
The CU CMP Splice Short 600 MCM is a tin-plated copper compression connector designed for terminating, splicing, and tapping power connectors in electrical distribution and lighting solutions. Manufactured by NSI Industries, this connector supports a conductor range of 600 MCM stranded copper wire and is suitable for use in wire and cable installations requiring corrosion resistance and reliable electrical conductivity. It is UL486A and cULus listed, rated for up to 600V and 90°C operating temperature, making it ideal for professional switchgear suppliers and electrical distributors.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: SC-600
- Material: Copper
- Finish: Tin Plated
- Color: Green
- Conductor Range: 600 MCM (STR)
- Number of Conductors: 2
- Number of Poles: 1
- Dimensions: 2.5 inches (Length) x 1.19 inches (Width) x 1.19 inches (Height)
- Maximum Temperature: 194 degrees Fahrenheit (90°C)
- Voltage Rating: 600V max
- UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding (Sizes 8 AWG - 3/0 AWG), cULus Listed 155027
- Environmental Conditions: Suitable for 90°C
- Country of Origin: India
- Product Weight: 2.88 lbs
Features
- Produced from high conductivity copper tubing for optimal electrical performance
- Tin-plated finish provides corrosion resistance
- Marked with die index and color coded for easy identification
- Serrations indicate proper crimp locations to ensure secure connections
- Suitable for use at voltages up to 35KV when installed according to cable manufacturer voltage stress relief instructions
- Maximum voltage in bare splices is 5KV
