CU CMP Splice Short 4 AWG
SKU: #305509
Part: #SC-4
UPC: 662381037022
CU CMP Splice Short 4 AWG
SKU: #305509
Part: #SC-4
UPC: 662381037022
Description

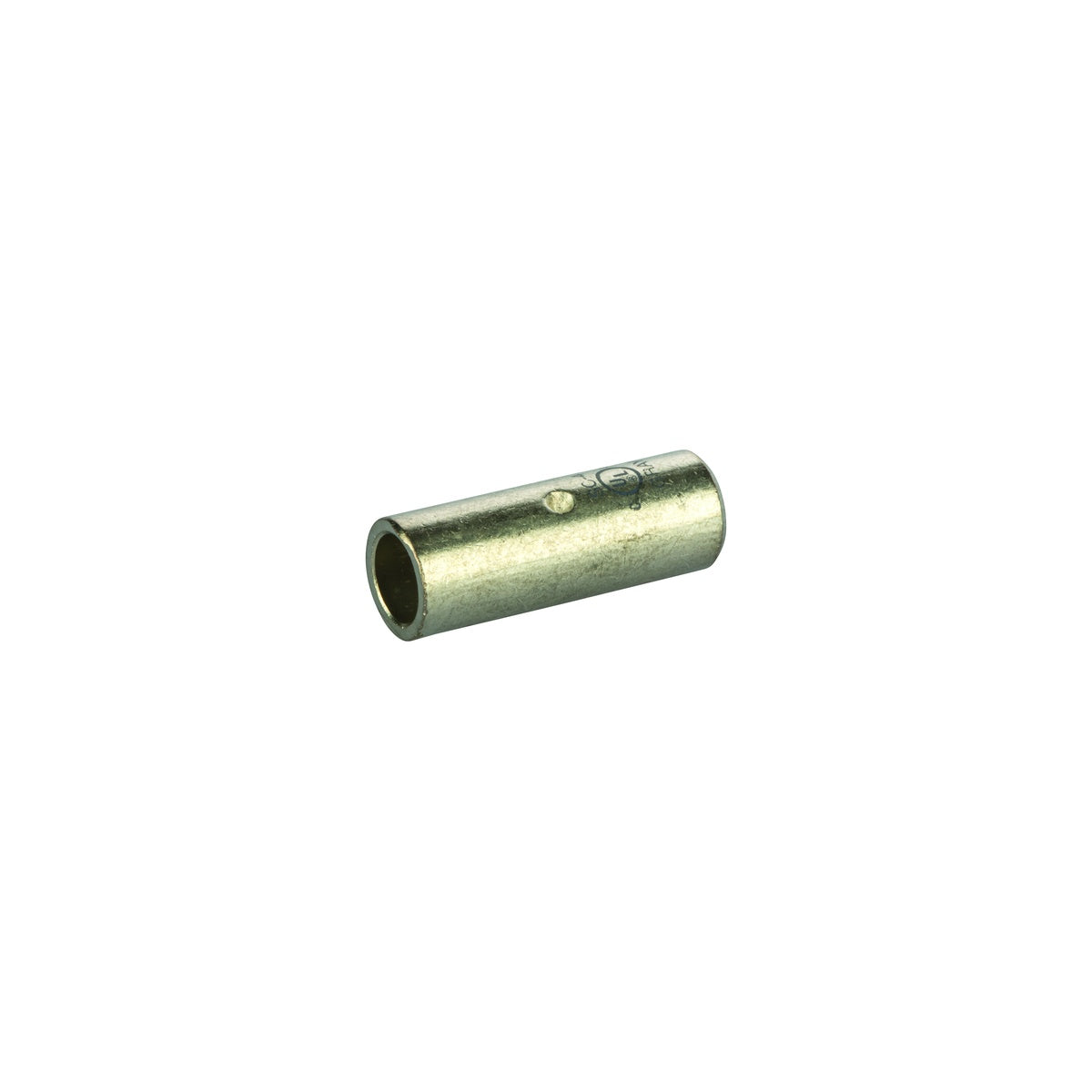

CU CMP Splice Short 4 AWG Copper Compression Connector
The CU CMP Splice Short 4 AWG is a copper compression connector designed for terminating, splicing, and tapping power connectors. This product is suitable for electrical distributors and switchgear suppliers seeking reliable wire and cable connections. It is constructed from high conductivity copper tubing with a tin-plated finish to provide corrosion resistance and ensure durability in electrical installations. The connector is color-coded gray and marked with a die index for easy identification, supporting applications up to 35KV when installed according to cable manufacturer voltage stress relief instructions.
Specifications
- Material: Copper
- Finish: Tin Plated
- Color: Gray
- Conductor Range: #4 AWG (STR)
- Number of Conductors: 2
- Number of Poles: 1
- Length: 1 inch
- Width: 0.34 inches
- Height: 0.34 inches
- Max Temperature: 194 degrees Fahrenheit
- Voltage Rating: 600V max
- Maximum Voltage (when properly installed): 35KV
- Product Weight: 2.6 lbs
- Country of Origin: India
- Manufacturer: NSI Industries
- Manufacturer Part #: SC-4
Features
- Produced from high conductivity copper tubing for optimal electrical performance
- Tin-plated finish provides corrosion resistance
- Color-coded gray and marked with die index for easy identification
- Serrations indicate proper crimp locations for secure connections
- Suitable for use at voltages up to 35KV when installed according to manufacturer instructions
- Listed for 35KV maximum voltage and UL486A Listed Wire Connector compliance
