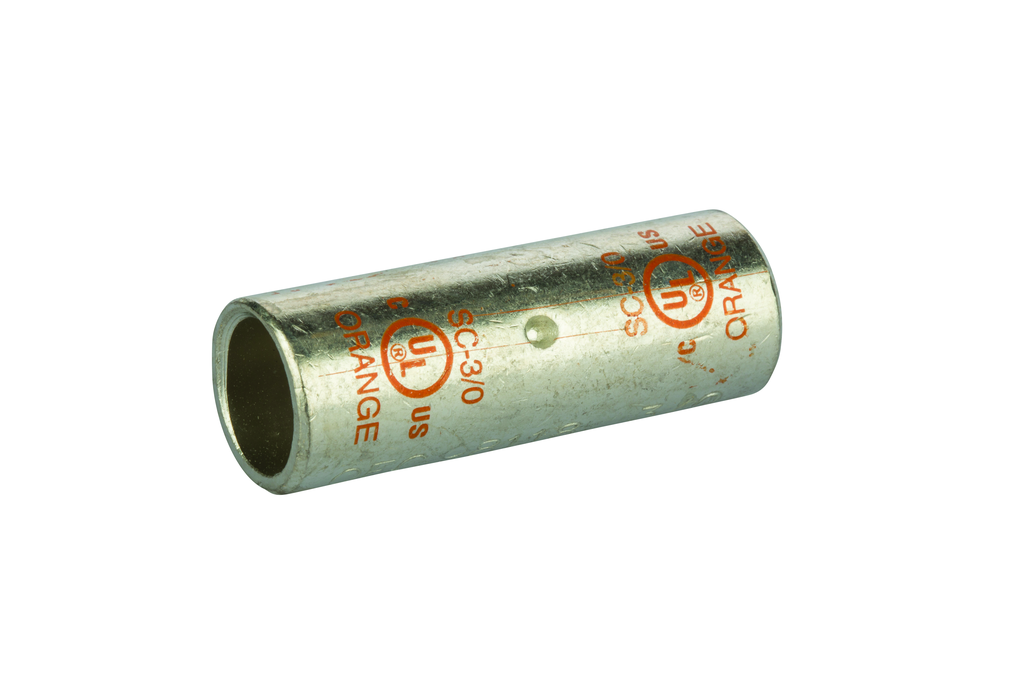

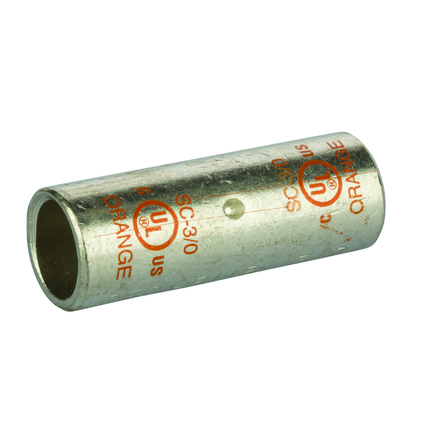

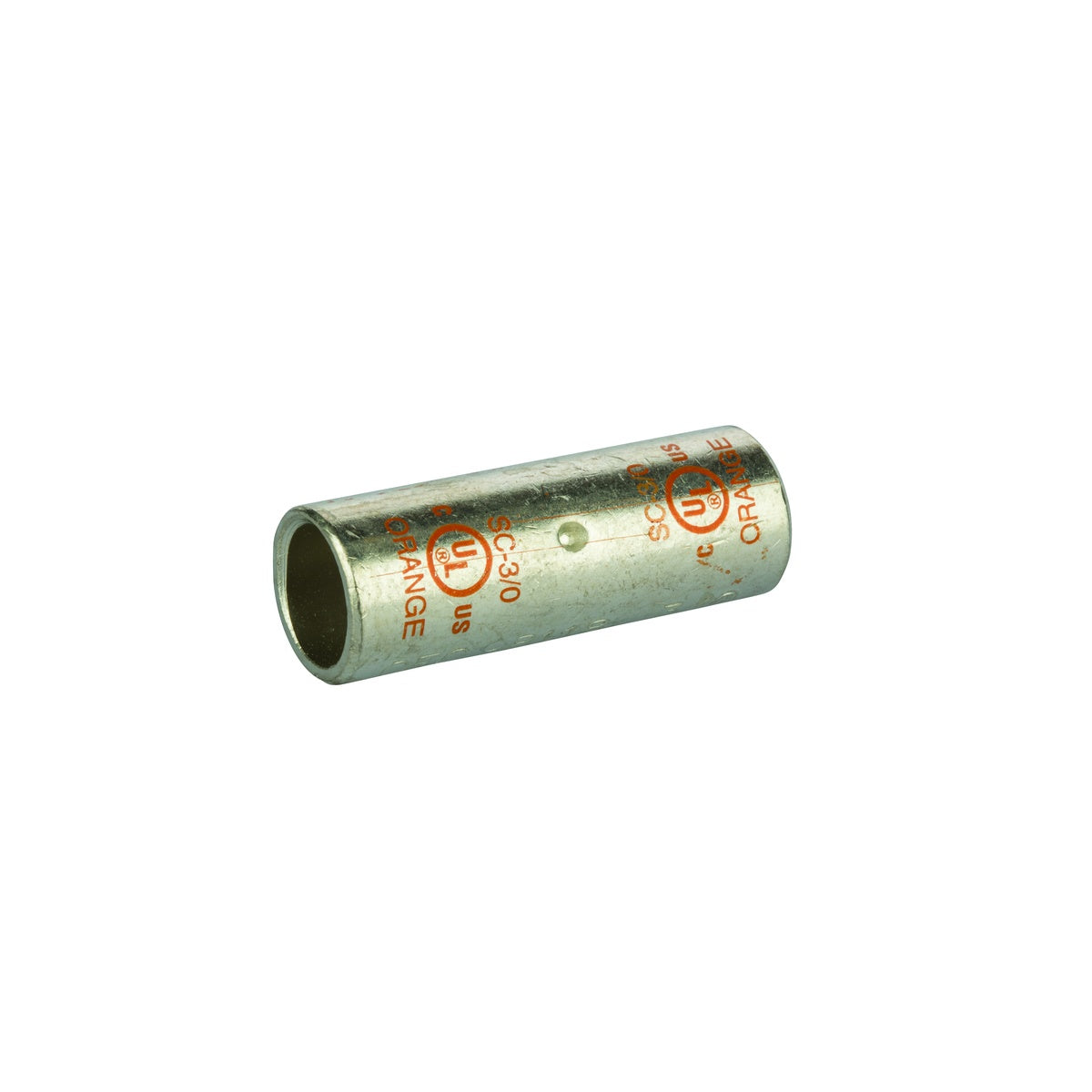

CU CMP Splice Short 3/0 AWG
SKU: #305507
Part: #SC-3/0
UPC: 662381037084
CU CMP Splice Short 3/0 AWG
SKU: #305507
Part: #SC-3/0
UPC: 662381037084
Next day delivery
Description
CU CMP Splice Short 3/0 AWG Copper Splice Connector
This copper compression splice connector is designed for terminating, splicing, and tapping power connectors in electrical distribution and wiring applications. Manufactured by NSI Industries, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable and corrosion-resistant copper splice solutions for wire and cable up to 3/0 AWG. Its tin-plated finish provides enhanced corrosion resistance, making it suitable for environments up to 90°C and voltages up to 35KV when properly installed.
Specifications
- Material: Copper
- Finish: Tin Plated
- Conductor Range: 3/0 AWG (STR)
- Color: Orange
- Length: 1.75 inches
- Width: 0.62 inches
- Height: 0.62 inches
- Max. Temperature: 194 degrees Fahrenheit (90°C)
- Number of Conductors: 2
- Number of Poles: 1
- Voltage Rating: Up to 600V max
- UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding (sizes 8 AWG - 3/0 AWG), cULus Listed 155027
- Country of Origin: India
- Product Weight: 1.9250 lbs
Features
- Produced from high conductivity copper tubing
- Tin-plated for corrosion resistance
- Marked with die index and color coded for easy identification
- Serrations indicate proper crimp locations
- Suitable for use at voltages up to 35KV when installed according to cable manufacturer voltage stress relief instructions
- Maximum voltage in all bare splices is 5KV
