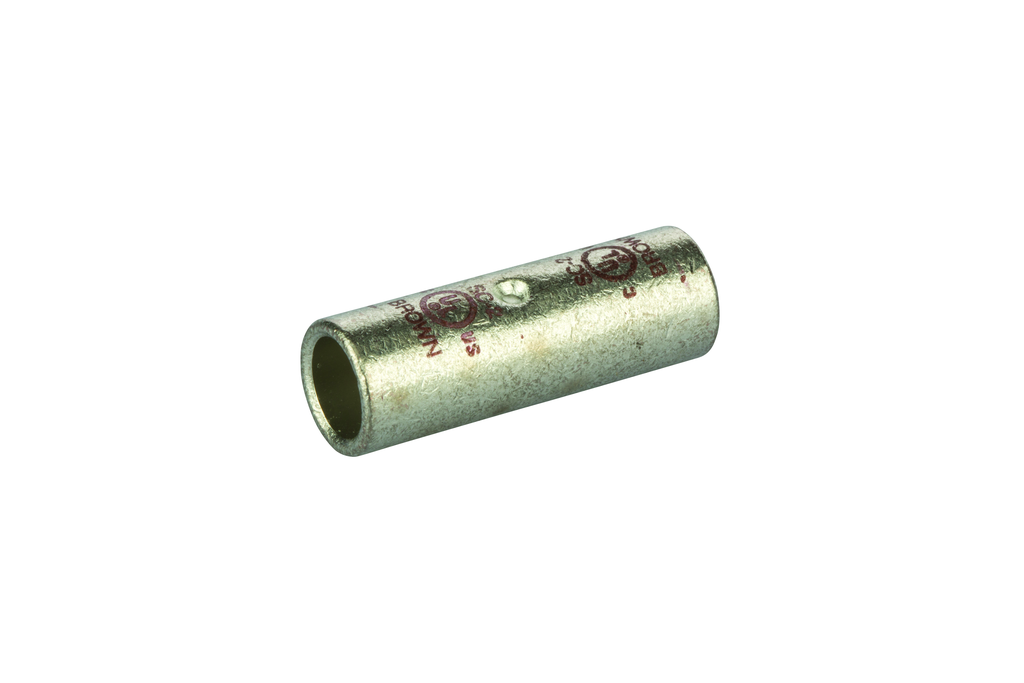

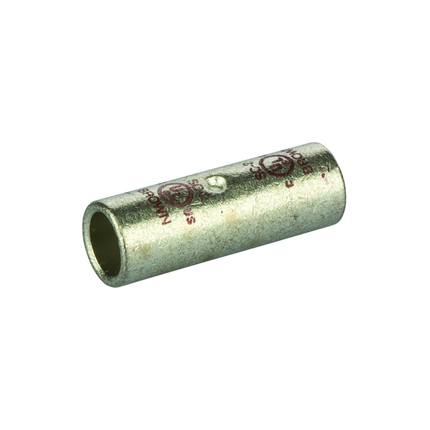

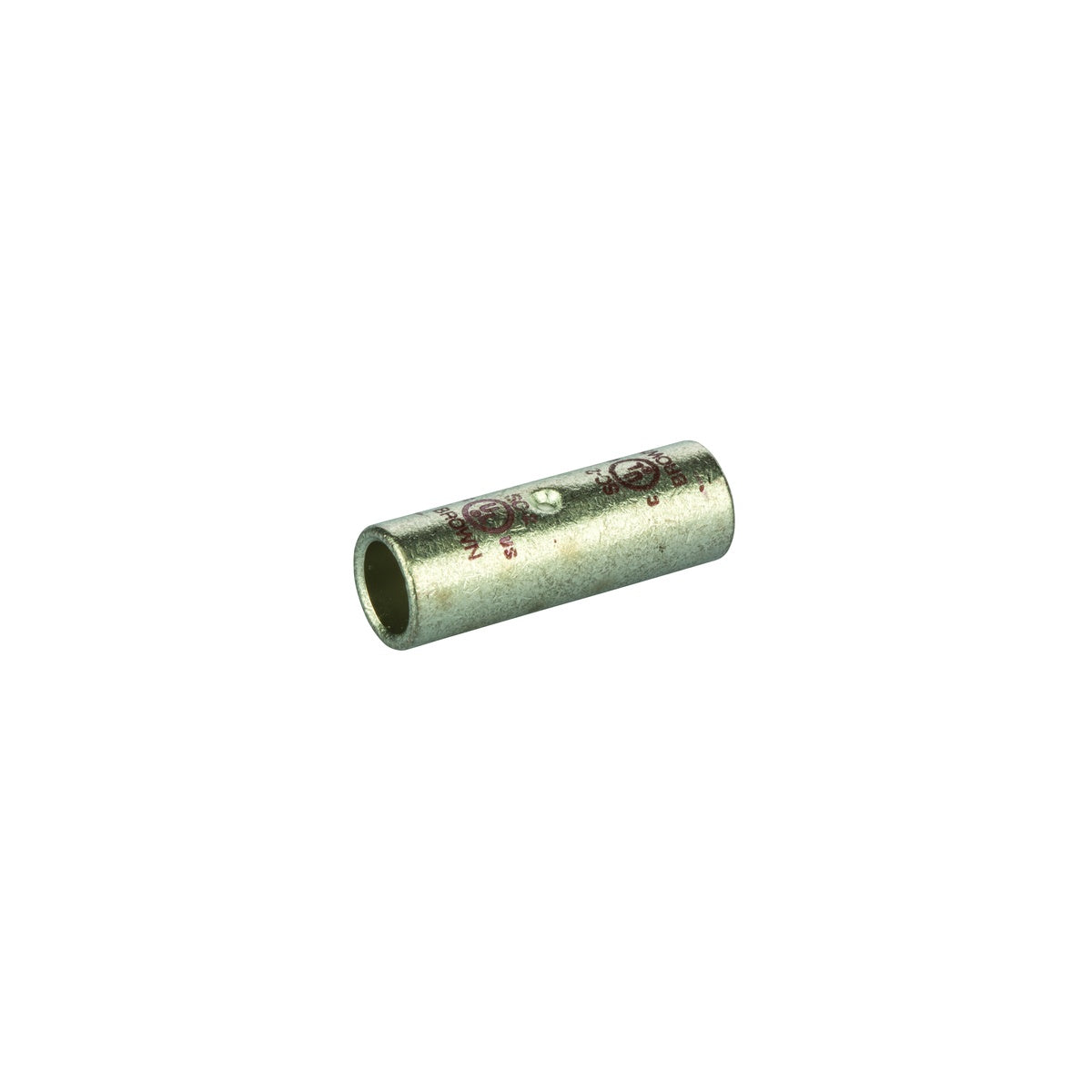

CU CMP Splice Short 2 AWG Copper Splice Connector

The CU CMP Splice Short 2 AWG is a copper compression splice connector designed for terminating, splicing, and tapping power connectors. Manufactured by NSI Industries, this connector is suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable connections. It is tin-plated for corrosion resistance and color-coded brown for easy identification. The connector supports conductor ranges of #2 AWG stranded copper wire and is rated for voltages up to 600V, with a maximum temperature rating of 194°F. It is listed for use at voltages up to 35KV when installed according to cable manufacturer voltage stress relief instructions, making it appropriate for various lighting solutions and electrical distribution applications.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: SC-2
• Material: Copper
• Finish: Tin Plated
• Color: Brown
• Conductor Range: #2 AWG (STR)
• Number of Conductors: 2
• Number of Poles: 1
• Dimensions (L x W x H): 1.25 in x 0.42 in x 0.42 in
• Max Temperature: 194 degrees Fahrenheit
• Voltage Rating: 600V max
• UL Listed: UL486A Wire Connector, UL467 Grounding & Bonding (8 AWG - 3/0 AWG), cULus Listed 155027
• Country of Origin: India
• Product Weight: 2.0 lbs

Features

• Produced from high conductivity copper tubing
• Tin-plated for corrosion resistance
• Marked with die index and color coded for easy reference
• Serrations indicate proper crimp locations
• Suitable for use at voltages up to 35KV when properly installed per cable manufacturer voltage stress relief instructions
• Maximum voltage of 5KV for bare splices

Downloads & Links

• Spec Sheet
