CU CMP Splice Short 2/0 AWG
SKU: #305498
Part: #SC-2/0
UPC: 662381037077
CU CMP Splice Short 2/0 AWG
SKU: #305498
Part: #SC-2/0
UPC: 662381037077
Description

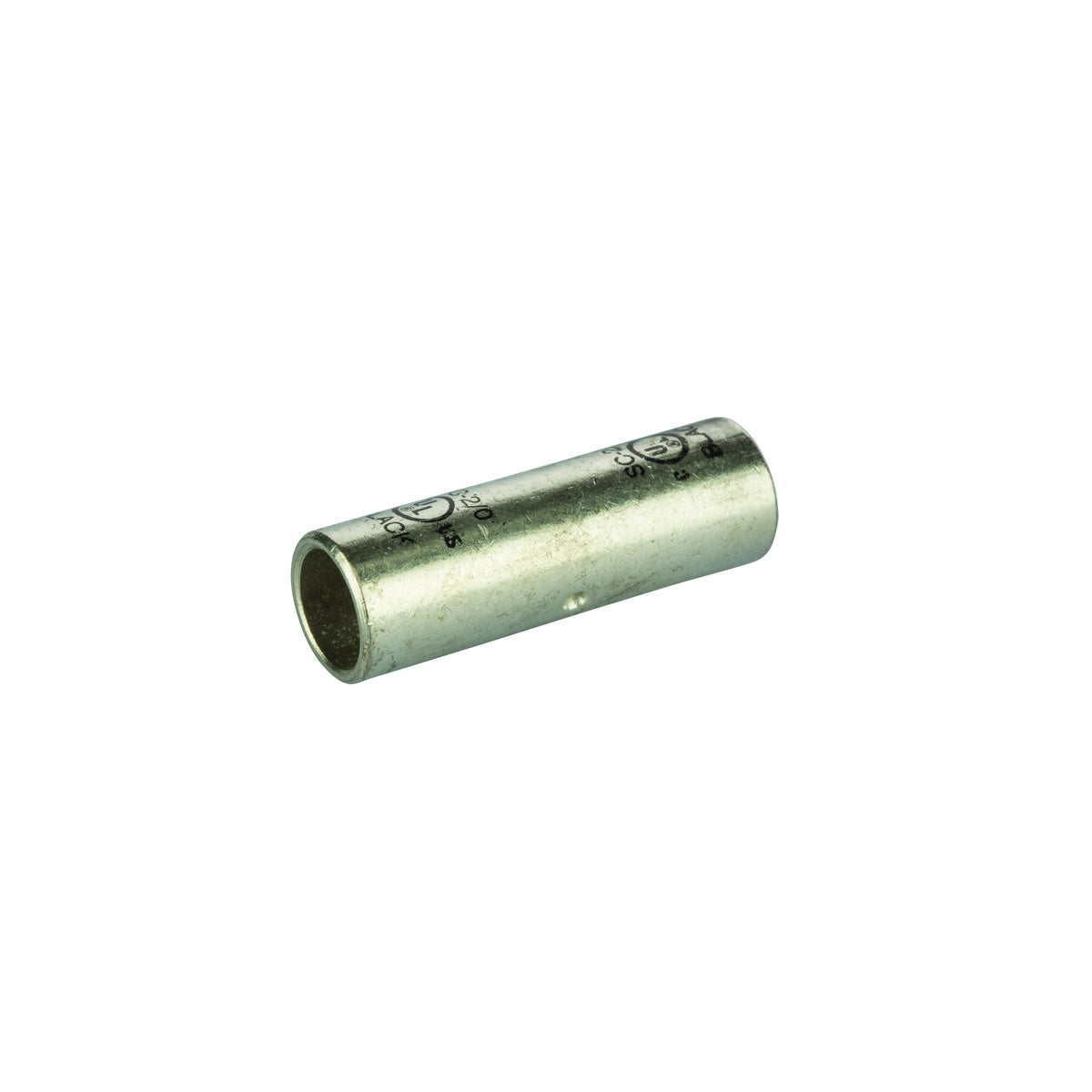

CU CMP Splice Short 2/0 AWG Copper Splice Connector
This CU CMP Splice Short 2/0 AWG is a copper compression splice connector designed for terminating, splicing, and tapping power connectors. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable copper splice solutions. The connector is tin-plated to resist corrosion and is UL486A and cULus listed, supporting voltage ratings up to 600V and suitable for applications up to 35KV when installed according to cable manufacturer instructions.
Specifications
- Material: Copper
- Finish: Tin Plated
- Color: Black
- Conductor Range: 2/0 AWG (STR)
- Length: 1.75 inches
- Width: 0.56 inches
- Height: 0.56 inches
- Number of Conductors: 2
- Number of Poles: 1
- Maximum Temperature: 194 degrees Fahrenheit (90°C)
- Voltage Rating: 600V max
- UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding, cULus 155027
- Country of Origin: India
- Product Weight: 1.6250 lbs
Features
- Produced from high conductivity copper tubing
- Tin-plated for corrosion resistance
- Marked with die index and color coded for easy identification
- Serrations indicate proper crimp locations
- Suitable for use at voltages up to 35KV when properly installed
- Maximum voltage in bare splices: 5KV
