CU CMP Splice Long 750 MCM
SKU: #303863
Part: #C-750
UPC: 662381037657
CU CMP Splice Long 750 MCM
SKU: #303863
Part: #C-750
UPC: 662381037657
Total Price: $64.72 per each Sold in increments of 1 each
Description

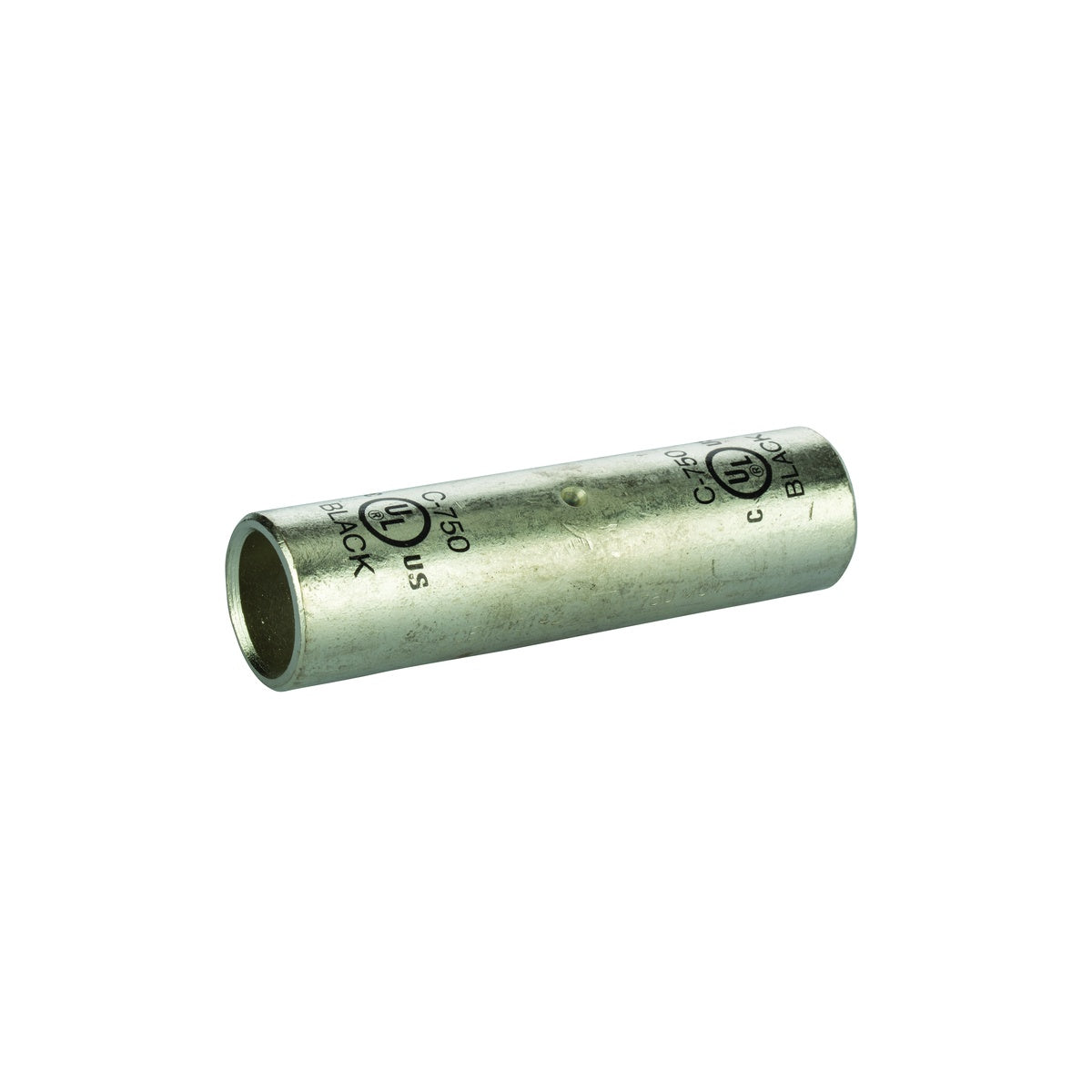

CU CMP Splice Long 750 MCM Copper Splice Connector
The CU CMP Splice Long 750 MCM is a copper compression connector designed for electrical distributors and switchgear suppliers requiring reliable wire and cable splicing solutions. Manufactured by NSI Industries, this long barrel tinned copper splice is engineered for high conductivity and corrosion resistance, suitable for use in lighting solutions and electrical distribution systems. It is UL486A listed for wire connectors and rated for voltages up to 35KV when properly installed.
Specifications
- Material: Copper
- Finish: Tin-Plated
- Length: 4.75 inches
- Width: 1.31 inches
- Height: 1.31 inches
- Maximum Temperature: 194 degrees Fahrenheit
- Voltage Rating: 600V max, suitable up to 35KV when installed per cable manufacturer instructions
- UL Listing: UL486A Wire Connector
- Manufacturer Part #: C-750
- Country of Origin: India
- Product Weight: 3.06 lbs
Features
- Produced from high conductivity copper tubing
- Tin-plated for corrosion resistance
- Marked with die index and color coded (Black)
- Serrations indicate proper crimp locations
- Suitable for use at voltages up to 35KV when properly installed
- Listed for 35KV maximum voltage and 5KV maximum in bare splices
