CU CMP Splice Long 500 MCM
SKU: #303861
Part: #C-500
UPC: 662381037633
CU CMP Splice Long 500 MCM
SKU: #303861
Part: #C-500
UPC: 662381037633
Next day delivery
Description

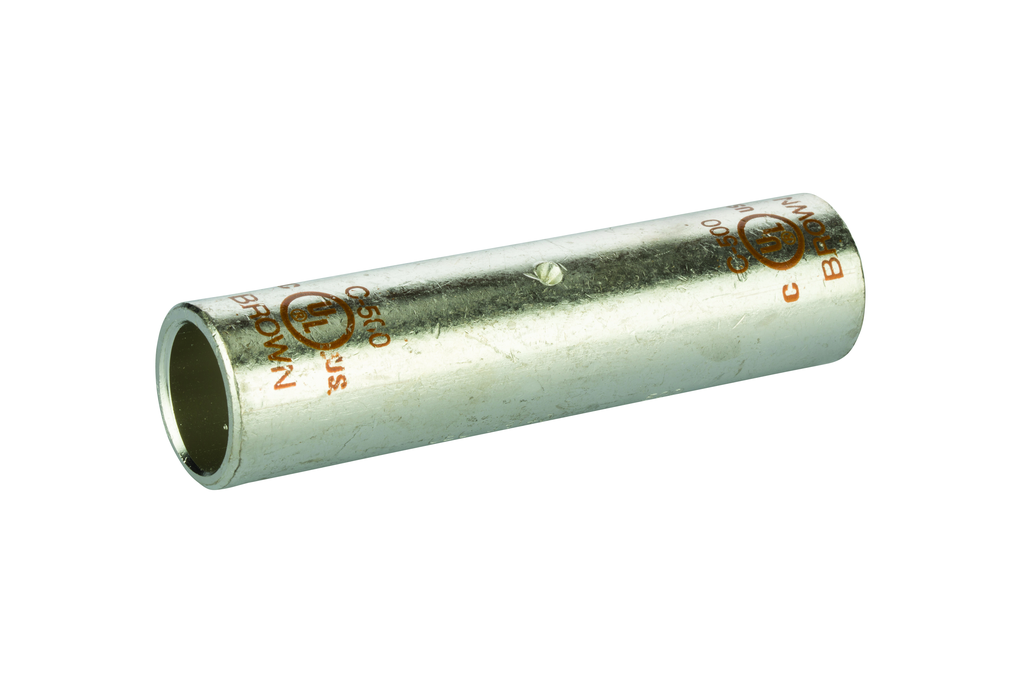

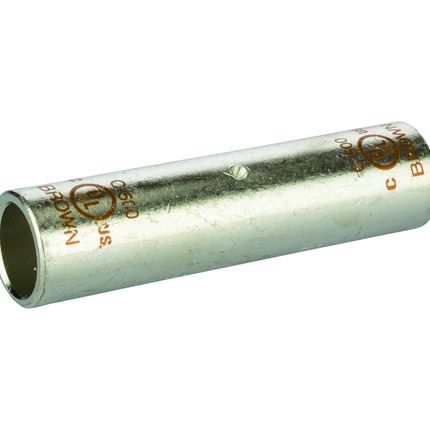

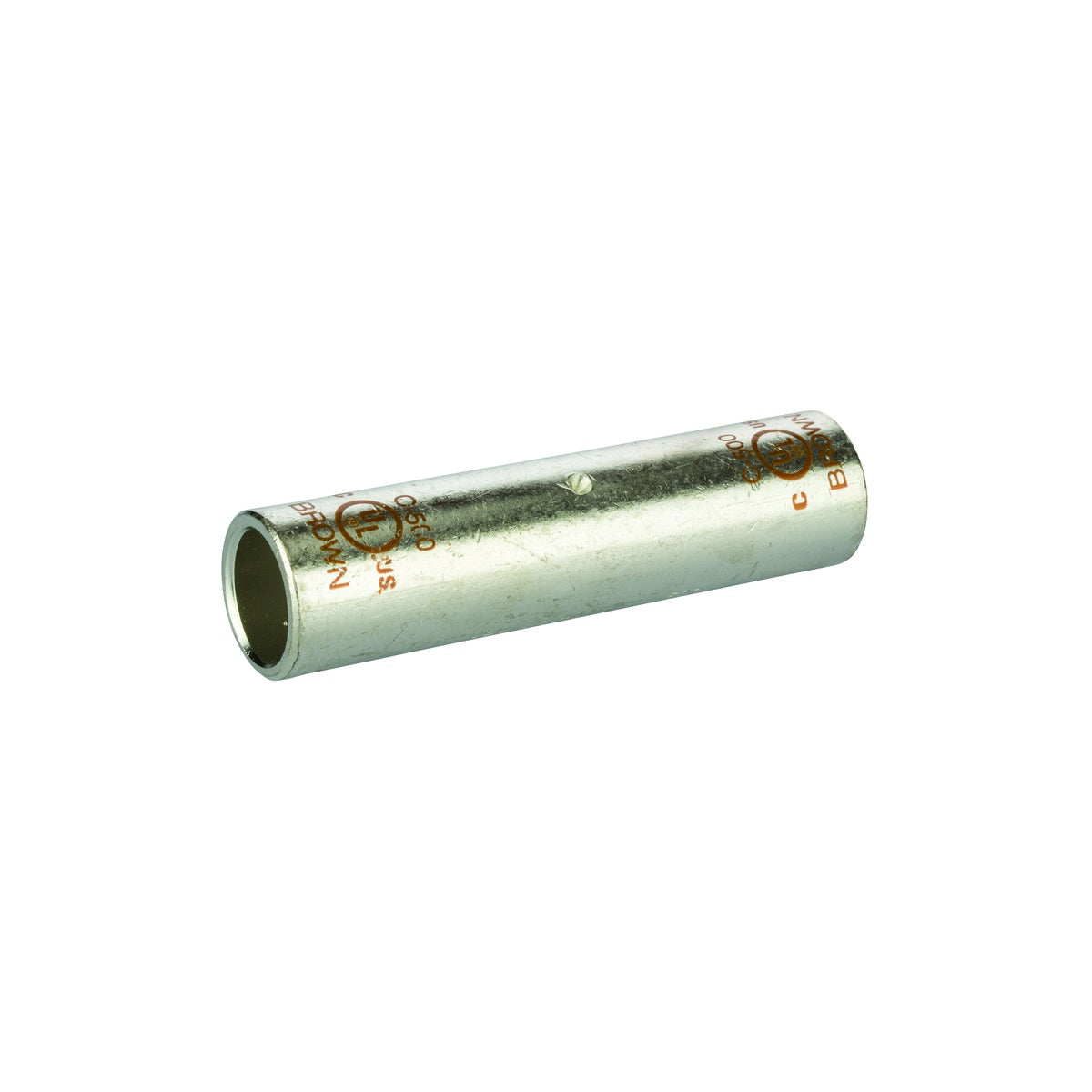

CU CMP Splice Long 500 MCM Copper Compression Connector
This copper compression splice is designed for terminating, splicing, and tapping power connectors in electrical distribution systems. Manufactured by NSI Industries, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable connections. The connector features a long barrel design with tin plating for corrosion resistance, supporting applications up to 35KV when properly installed.
Specifications
- Material: Copper
- Finish: Tin Plated
- Conductor Range: 500 MCM (STR)
- Number of Conductors: 2
- Number of Poles: 1
- Dimensions (L x W x H): 4.25 in x 1.06 in x 1.06 in
- Product Weight: 3.42 lbs
- Max. Temperature: 194 degrees Fahrenheit
- Environmental Conditions: 90°C
- Country of Origin: India
- Manufacturer Part #: C-500
- Order Minimum: 1
Features
- High conductivity copper tubing construction
- Tin-plated for enhanced corrosion resistance
- Long barrel design for secure compression connections
- Marked with die index and color coded for easy identification
- Listed for 35KV maximum voltage rating when properly installed
