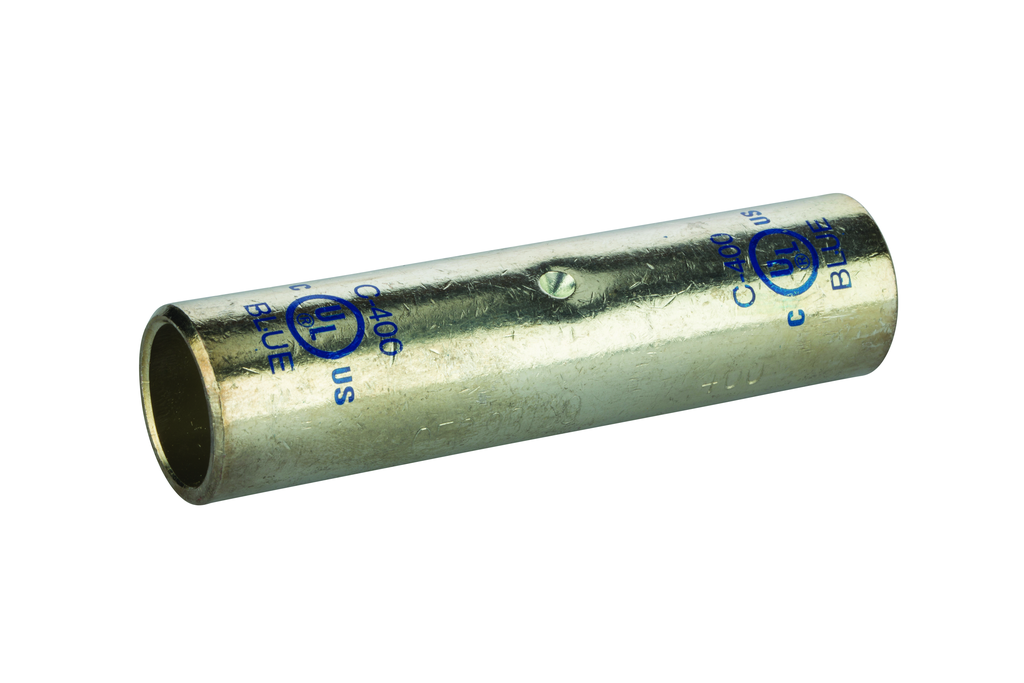

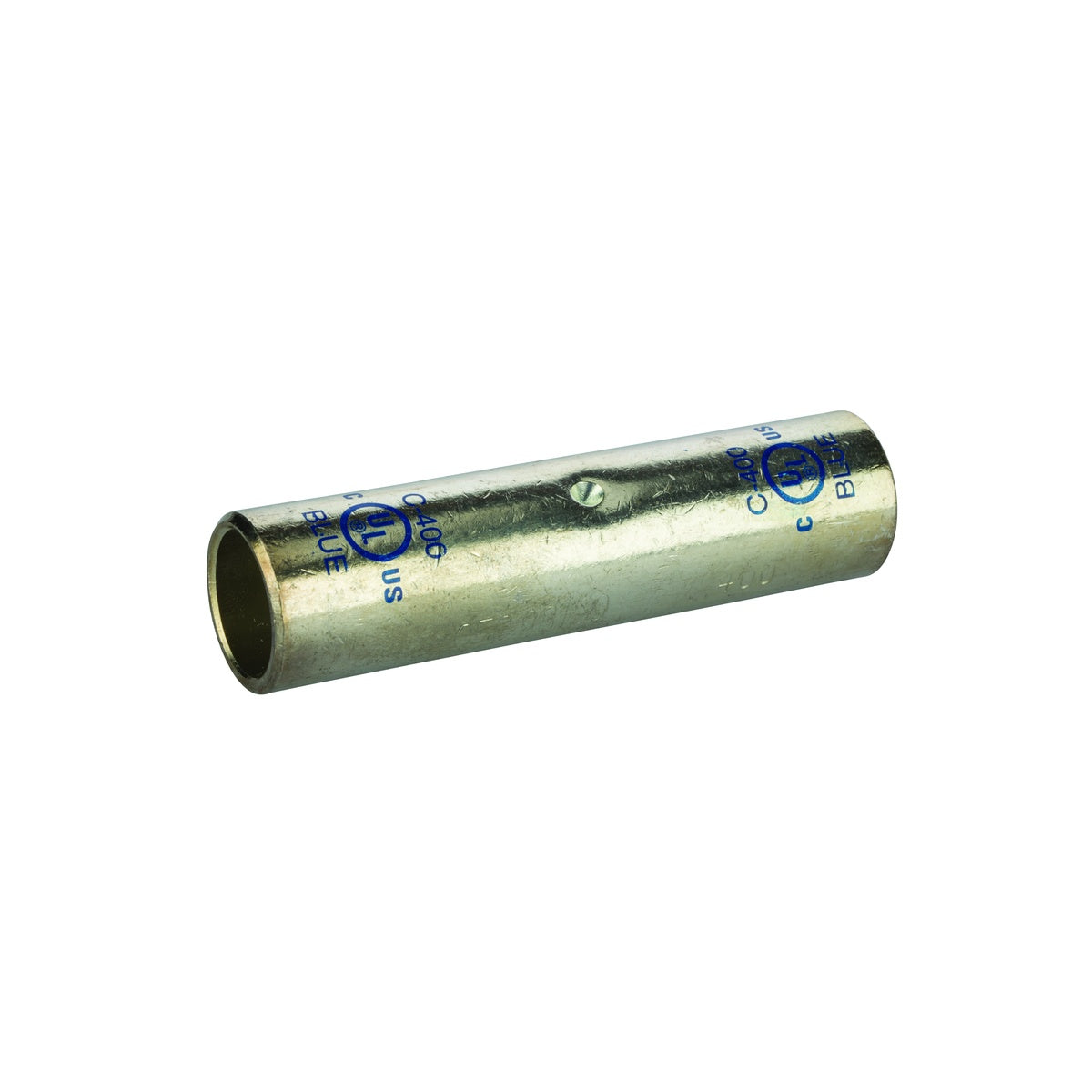

CU CMP Splice Long 400 MCM Copper Compression Connector

This copper splice connector is designed for terminating, splicing, and tapping power connectors in electrical distribution and wire and cable applications. Manufactured by NSI Industries, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable, corrosion-resistant connections for 400 MCM stranded copper conductors. The connector supports voltages up to 35KV when installed according to cable manufacturer instructions.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: C-400
• Material: Copper
• Finish: Tin Plated
• Conductor Range: 400 MCM (STR)
• Color Code: Blue
• Dimensions: 3.75 inches (Length) x 0.95 inches (Width) x 0.95 inches (Height)
• Number of Conductors: 2
• Number of Poles: 1
• Maximum Temperature: 194 degrees Fahrenheit (90 °C)
• Application: Terminate, Splice, Tap Power Connectors
• Product Weight: 2.22 lbs
• Country of Origin: India
• Voltage Rating: 600V max
• UL Listed: UL486A Wire Connector

Features

• Produced from high conductivity copper tubing for optimal electrical performance
• Tin-plated finish provides corrosion resistance
• Long barrel design for secure compression connections
• Marked with die index and color coded for easy identification
• Serrations indicate proper crimp locations
• Suitable for use at voltages up to 35KV when properly installed
• Maximum voltage for bare splices is 5KV
