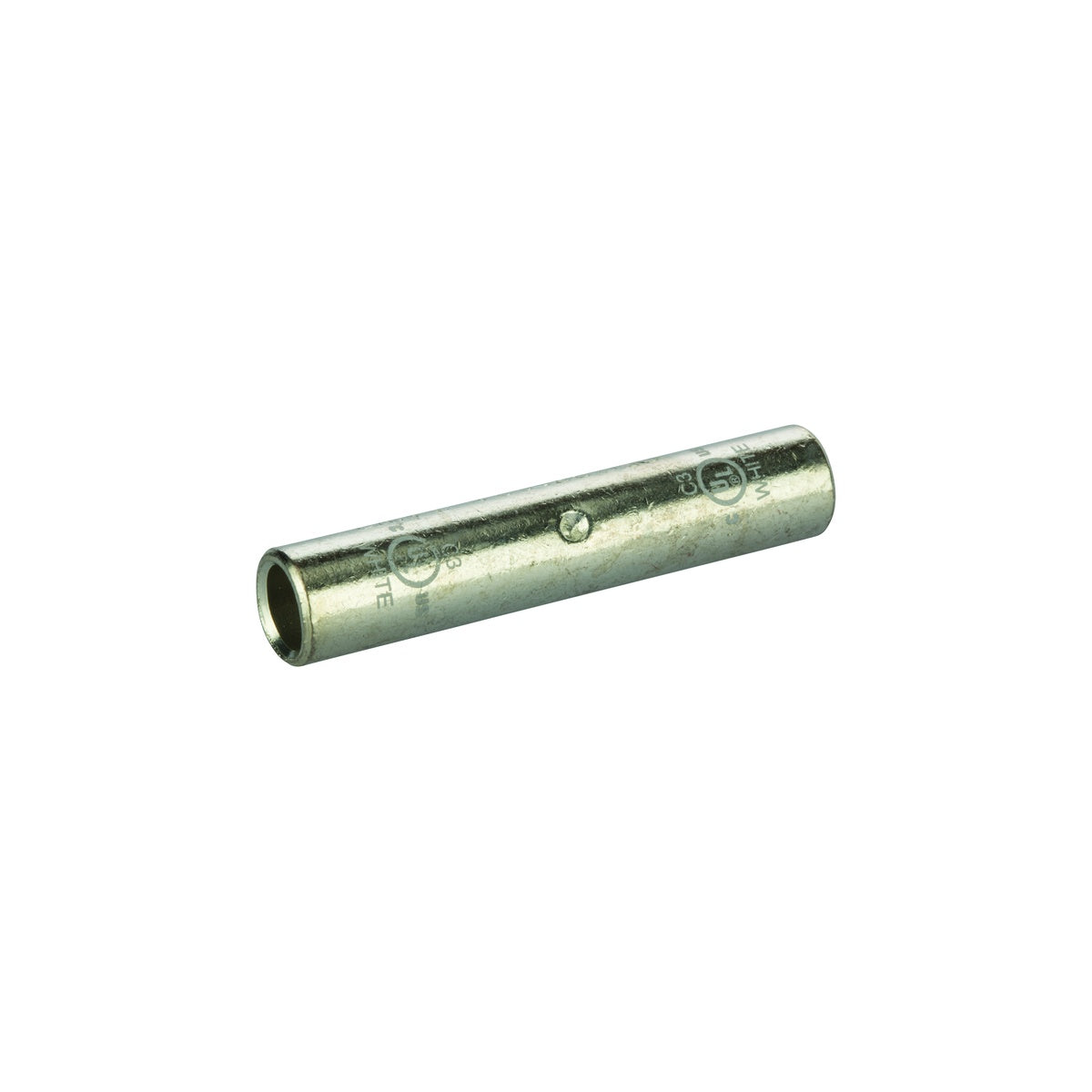

CU CMP Splice Long 3 AWG – Copper Compression Connector

The CU CMP Splice Long 3 AWG is a tin-plated copper compression connector designed for reliable electrical splicing applications. Manufactured by NSI Industries, this copper splice is suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers requiring durable, corrosion-resistant connectors. It is UL486A listed and rated for use up to 35KV when installed according to cable manufacturer voltage stress relief instructions, making it appropriate for high-voltage electrical systems.

Specifications

• Material: Copper
• Finish: Tin-Plated
• Wire Range: 3 AWG
• Length: 1.9 inches
• Width: 0.38 inches
• Height: 0.38 inches
• Maximum Temperature: 194 degrees Fahrenheit
• Voltage Rating: 600V max (35KV max when properly installed)
• UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding (Sizes 8 AWG - 3/0 AWG)
• Country of Origin: India
• Manufacturer Part Number: C-3
• Product Weight: 3.3 lbs

Features

• Produced from high conductivity copper tubing
• Tin-plated for corrosion resistance
• Long barrel design for secure compression connection
• Marked with die index and color coded for easy identification
• Serrations indicate proper crimp locations
• Suitable for use up to 35KV when installed according to cable manufacturer instructions
• Maximum voltage in bare splices: 5KV

Downloads & Links

• Spec Sheet
