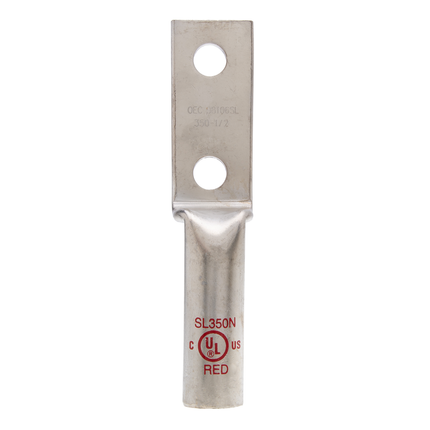

CU CMP Lug Stack 350 MCM
SKU: #305531
Part: #SL350N
UPC: 662381035554
CU CMP Lug Stack 350 MCM
SKU: #305531
Part: #SL350N
UPC: 662381035554
Description
CU CMP Lug Stack 350 MCM Copper Compression Connector
This copper compression lug is designed for terminating, splicing, and tapping power connectors in electrical distribution and wire and cable applications. It is suitable for use with the L-N Series connectors and provides reliable electrical connections in heavy-duty environments. This product is ideal for electrical distributors and switchgear suppliers requiring durable and corrosion-resistant copper connectors for 350 MCM stranded cable.
Specifications
- Material: Copper
- Finish: Tin-Plated for corrosion resistance
- Color: Red
- Cable Size: 350 MCM (STR)
- Number of Holes: 2
- Mounting: 1/2" Mounting Holes
- Length: 5.78 inches
- Width: 1.24 inches
- Height: 1.86 inches
- Maximum Temperature: 194 degrees Fahrenheit (90 °C)
- Application: Terminate, Splice, Tap Power Connectors
- Manufacturer Part #: SL350N
- Country of Origin: India
- Product Weight: 7.25 lbs
Features
- Produced from high conductivity copper tubing for heavy-duty applications
- Tin-plated surface provides enhanced corrosion resistance
- Marked with die index and color-coded for easy identification
- Designed for compatibility with the L-N Series connectors
- UL486A Listed wire connector, rated for 600V
- Listed for 35KV maximum voltage when properly installed
- Suitable for use with Class B or C building wire copper cable
