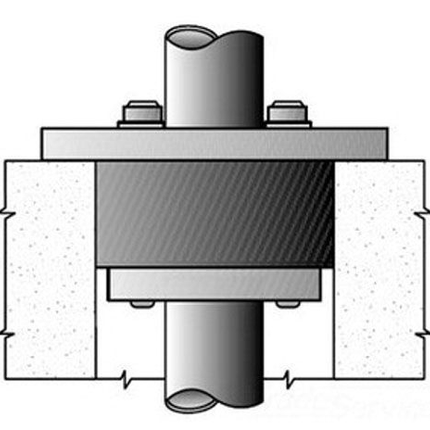

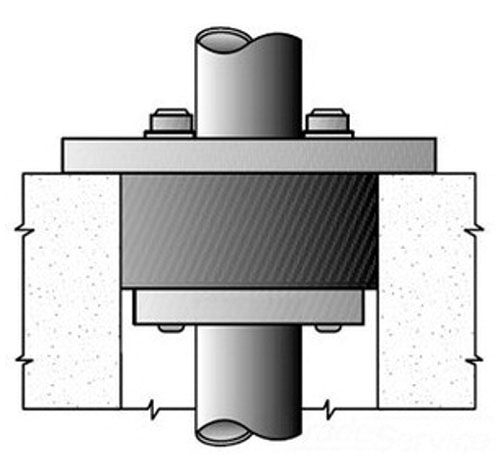

CSML-500P Conduit Sealing Bushing for Electrical Conduit Sealing

The CSML-500P Conduit Sealing Bushing by O-Z Gedney is designed for sealing conduits in core drilled holes, specifically for a 5-inch core drilled hole or a 5.047-inch inside diameter conduit or pipe. This product is suitable for use in electrical distribution and wire and cable applications where protection against condensation, moisture, and gas ingress is critical. It is ideal for use by electrical distributors and switchgear suppliers requiring reliable conduit sealing solutions in commercial and industrial environments.

Specifications

• Name: CSML-500P, Conduit Sealing Bushing
• Application: For 5 IN Core Drilled Hole, 5.047 IN ID Conduit Or Pipe
• Material: Steel Pressure Disc
• Finish: PVC Coated
• Product Weight: 4.5 lbs
• Manufacturer: O-Z Gedney
• Manufacturer Part #: CSML-500P

Features

• Designed for core drilled hole applications to provide an effective seal around conduits or pipes.
• Steel pressure disc construction ensures durability and mechanical strength.
• PVC coating on the pressure disc offers corrosion resistance and protection in harsh environments.
• Prevents water, gas, and condensation ingress, maintaining enclosure integrity.
• Compatible with 5-inch core drilled holes and 5.047-inch inside diameter conduits or pipes.

Downloads & Links

• Catalog
• Other 1
• Brochure
