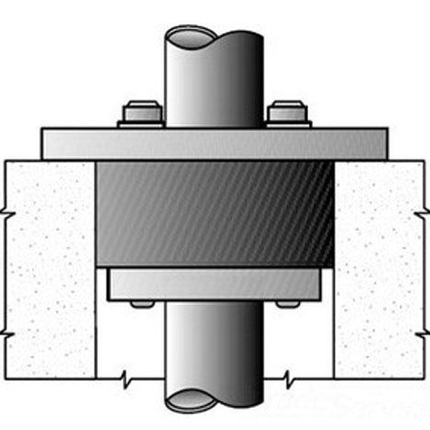

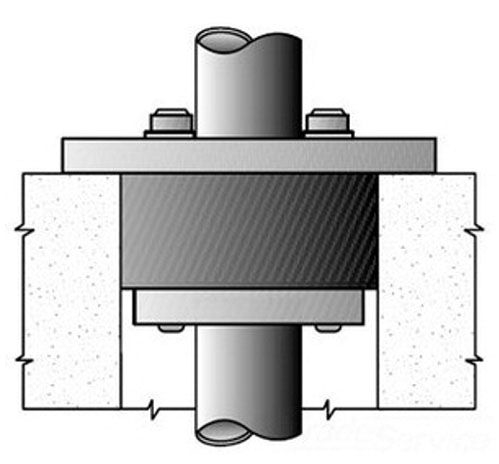

CSML-300P Conduit Sealing Bushing for Electrical Conduit Sealing

The CSML-300P Conduit Sealing Bushing by O-Z Gedney is designed for sealing conduits in core drilled holes, specifically for 3-inch core drilled holes or conduits with a 3.068-inch inside diameter. It provides a reliable seal to prevent fluid and gas pressure ingress around mechanical pipes, casing, conduits, or tubing, making it suitable for electrical distributors and lighting solutions requiring secure conduit sealing. This product is ideal for use in industrial and commercial electrical installations where maintaining enclosure integrity is critical.

Specifications

• Name: CSML-300P, Conduit Sealing Bushing
• Application: For 3 IN Core Drilled Hole, 3.068 IN ID Conduit Or Pipe
• Material: Steel Pressure Disc
• Finish: PVC Coated
• Product Weight: 1.9000 lbs
• Manufacturer: O-Z Gedney
• Manufacturer Part #: CSML-300P
• UPC: 783126009538

Features

• Designed for core drilled hole conduit sealing applications
• Steel pressure disc construction ensures durability and pressure resistance
• PVC coating provides corrosion resistance
• Prevents ingress of fluids and gases into conduit enclosures
• Compatible with rigid and IMC conduit systems
• Suitable for use in hazardous locations Class I, Division 2 per NEC 501.10(B)(4)
