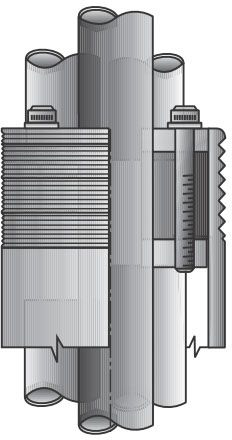

Features

• The Complete Assembly is Provided with 1 or Multiple Holes to Accommodate the Size and Number of Cables Which Emerge from the Conduit
• These Fittings are Simple to Install
• They Eliminate the Special Preparation of the End of the Conduit or the Compounding of the Conduit Thread Which is Required on Other Types of Sealing Fittings Used to Seal Against High Pressures
• Type CSBI Seals Against Internal or External Fluids or Gases and Prevents Them from Entering an Enclosure
• They are Capable of Sealing Against Gas or Fluid Pressure of 50 PSIG (Non-Segmented, Segmenting Reduces the Pressure in Half)

Additional Information

• Conduit Inner Diameter 2.067 Inch

Specifications

• Conduit Size: 2 Inch
• Wire Size: (1) 0.89 Inch/(2) 0.77 Inch/(3) 0.71 Inch/(4) 0.59 Inch
• Diameter: 2-13/14 Inch
• Material: Slotted PVC Coated Steel (Disc), Neoprene (Sealing Ring), Stainless Steel (Socket Head Cap Screw/Washer)
• Approval: UL
• Series/Model: CSBI
