Features

• Seals against Internal or External Fluids or Gases and Prevents them from Entering an Enclosure
• The Complete Assembly is Provided with 1 or Multiple Holes to Accommodate the Size and Number of Cables which Emerge from the Conduit

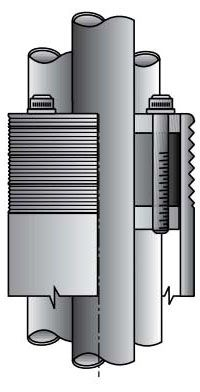

• When the Fitting is in Place and the Screws are Tightened, the Neoprene Sealing Ring is Compressed Between the Metal Plates and is Forced Against the Inside Wall of the Conduit and also Against the Cable Insulation to Effect a Complete Seal at the Conduit End
• These are Intended as Abandonment Devices Only
• These Conduit Sealing Bushings are Used for Sealing the Ends of Conduit in Application Involving Higher Static Gas or Fluid Pressures than Can be Handled by Standard Sealing Bushings
• For Use with IMC or EMT, a Short Nipple of Rigid Metal Conduit should be Used to Accommodate the Conduit Sealing Bushing

Additional Information

• Conduit Inner Diameter 2.067 Inch

Specifications

• Conduit Size: 2 Inch
• Diameter: 2-13/14 Inch
• Material: Slotted PVC Coated Steel (Disc), Neoprene (Sealing Ring), Stainless Steel (Socket Head Cap Screw/Washer)
• Approval: UL
• Series/Model: CSBI
