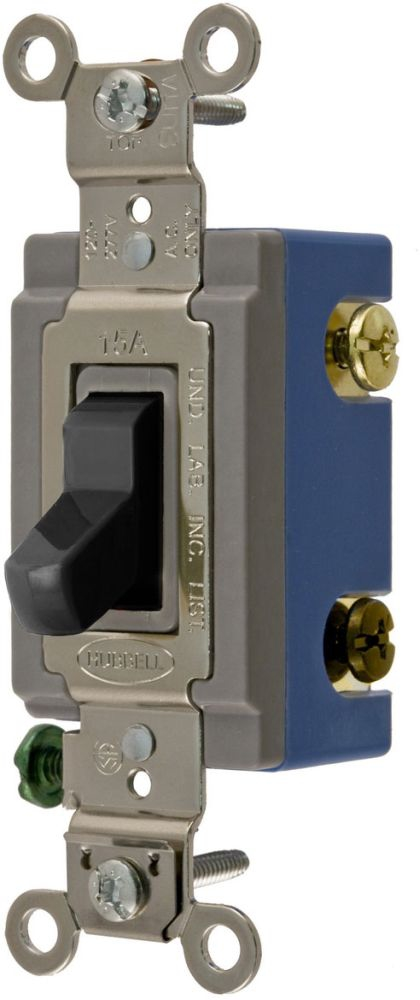

CS1203BKU Toggle Switch - Commercial Spec Grade Electrical Switch

The CS1203BKU toggle switch is designed for commercial spec grade electrical applications, providing reliable switching solutions for indoor dry environments. Manufactured by Hubbell Wiring Device-Kellems, this switch is suitable for use by electrical distributors and lighting solutions providers requiring durable and efficient wire and cable control components. It features a positive snap action and supports back and side wiring, making it adaptable for various switchgear supplier needs.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: CS1203BKU
• Application: Commercial Spec Grade
• Current Rating: 15 amperes
• Amperage Rating: 15A A
• Contact Rating: Per UL 20
• Number of Poles: Three Way
• Contact Configuration: Two Position
• Operating Cycles: 50,000 Cycles
• Material: Nylon
• Color: Black
• Mounting: Screw Mount
• Connection: Back and Side Wired
• Wiring Scheme: Back
• Enclosure: None
• Insulation: None
• Environmental Conditions: Indoor Dry unless protected by additional means
• Product Weight: 2.0000 lbs

Features

• Positive Snap action for reliable switching performance
• Three-way pole configuration suitable for multi-circuit control
• Back and side wiring options for flexible installation
• Durable nylon construction for long-lasting use
• Designed for indoor dry environments, ensuring safety and compliance
• UL 20 contact rating for safety and performance assurance

Downloads & Links

• CAD Drawing
• Warranty
