CS-2540P, Channel Flat Plate – Electrical Distributor Channel Fitting

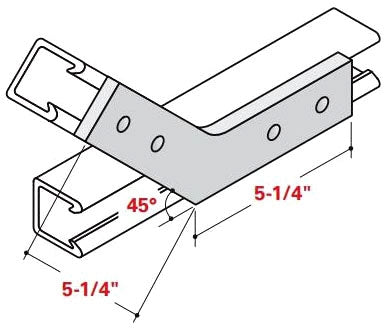

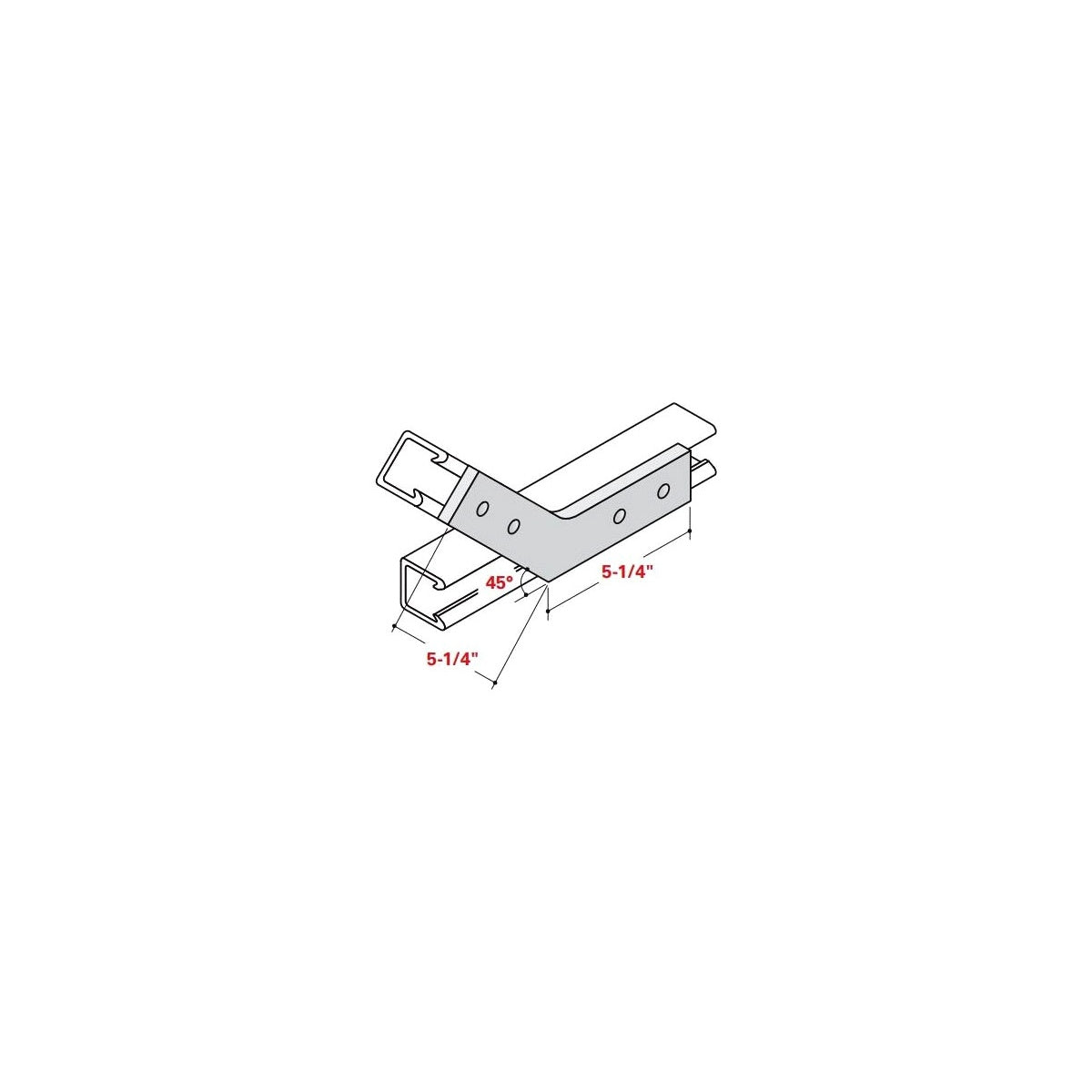

The CS-2540P Channel Flat Plate is a 45-degree L-shaped channel fitting designed for fabricating pipe supports and pipe supporting structures. Manufactured by Champion Fiberglass, this flat plate fitting is made from durable polyester material with a dark gray finish. It features four 13/32 inch holes to accommodate 3/8 inch hardware, making it compatible with Champion Strut channels and polyurethane hardware fasteners. This component is suitable for electrical distributors and lighting solutions requiring reliable wire and cable support or switchgear assembly.

Specifications

• Material: Polyester
• Finish: Dark Gray
• Shape: 45 Degree, L-Shape
• Number of Holes: 4
• Hole/Slot Size: 13/32 Inch
• Length: 5-1/4 Inch
• Thickness: 3/8 Inch
• Product Weight: 41 lbs

Features

• Fabricated from 3/8" thick flat polyester fiberglass sheet stock
• Designed for easy attachment to Champion Strut channels using channel nuts and polyurethane fasteners
• Dark gray color for polyester fittings, ensuring compatibility with polyester or vinyl ester channels
• Pre-drilled holes sized for 3/8" hardware, with the option to drill for larger hardware sizes
