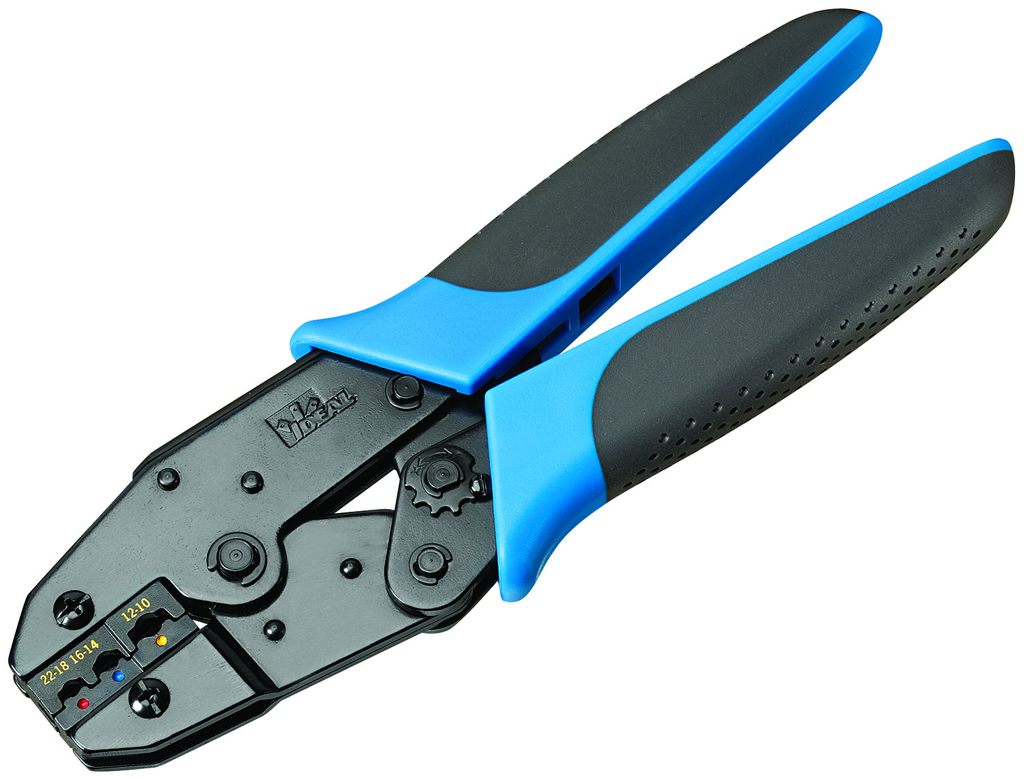

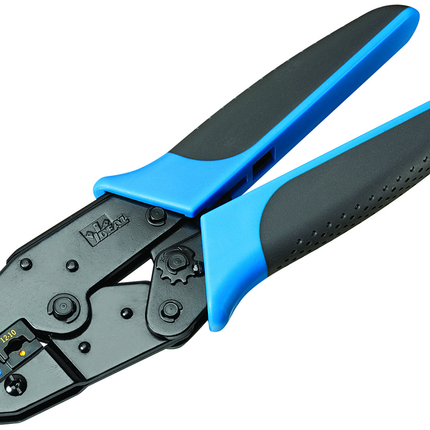

Crimpmaster™ Tool with Insulated Terminal Die Set – Ratcheting Crimp Tool

The Crimpmaster‚Ñ¢ Tool with Insulated Terminal Die Set is a professional-grade ratcheting crimp tool designed for crimping 22 to 10 AWG insulated ring tongue terminals and splices. Ideal for electrical distributors and switchgear suppliers, this tool offers precise and consistent crimps, supporting wire and cable applications in lighting solutions and electrical installations. Its ratcheting mechanism ensures a full crimp cycle, preventing under crimping and enhancing reliability in daily heavy use.

Specifications

• Application: For 22 To 10 AWG Insulated Ring Tongue Terminals And Splices
• Product Weight: 5.1 lbs
• Handle Type: Cushioned, Comfort-Grip
• Included: Die
• Manufacturer: IDEAL Industries
• Manufacturer Part #: 30-500
• UPC: 783250305001

Features

• Ratcheting tool frame ensures full crimp cycle for consistent crimps
• Interchangeable die sets compatible with all IDEAL Crimpmaster‚Ñ¢ tools
• Thick walled frame made from fine blanked high carbon steel with black oxide coating for durability
• Cushioned, contoured comfort-grip handles provide leverage and user comfort
• Ratchet release lever allows tool opening if a full crimp cycle cannot be completed

Downloads & Links

• Spec Sheet
