CP3540 Ceiling Box Cover - Electrical Ceiling Cover

The CP3540 ceiling box cover by Arlington Industries is designed to cover unused 3-1/2” and 4” round and octagonal electrical boxes prior to the installation of fans or fixtures. This non-metallic, paintable plastic cover is an essential component for electrical distributors and lighting solutions providers needing a reliable and attractive cover to protect and finish ceiling installations. It is suitable for use in wire and cable management applications where an aesthetic and functional ceiling box closure is required.

Specifications

• Material: Plastic
• Color: White
• Fits Box Sizes: 3-1/2‚Äù and 4‚Äù round and octagonal boxes
• Weight: 0.1600 lbs
• Manufacturer Part Number: CP3540
• UPC: 018997540904
• Dimensions: Diameter 5.390", Depth 0.812"

Features

• Deeper cover design works with pan boxes without the need to cut the post

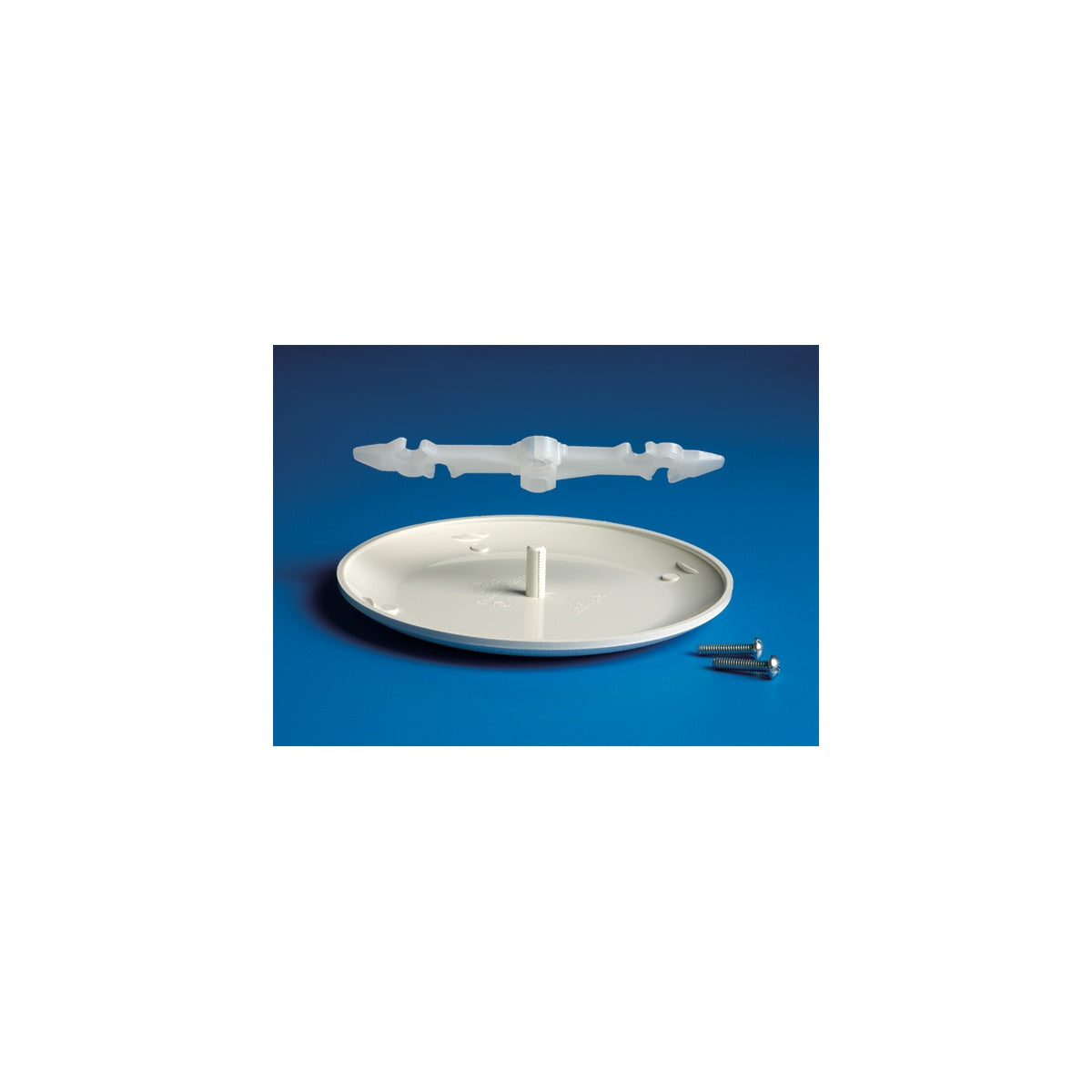

• Bracket with two mounting options: push-in threaded post for flat ceilings or screw-on for textured/uneven ceilings
• Includes two #8-32 x 3/4‚Äù flat head screws and mounting bracket
• Non-rusting and paintable plastic eliminates scratches common with metal covers

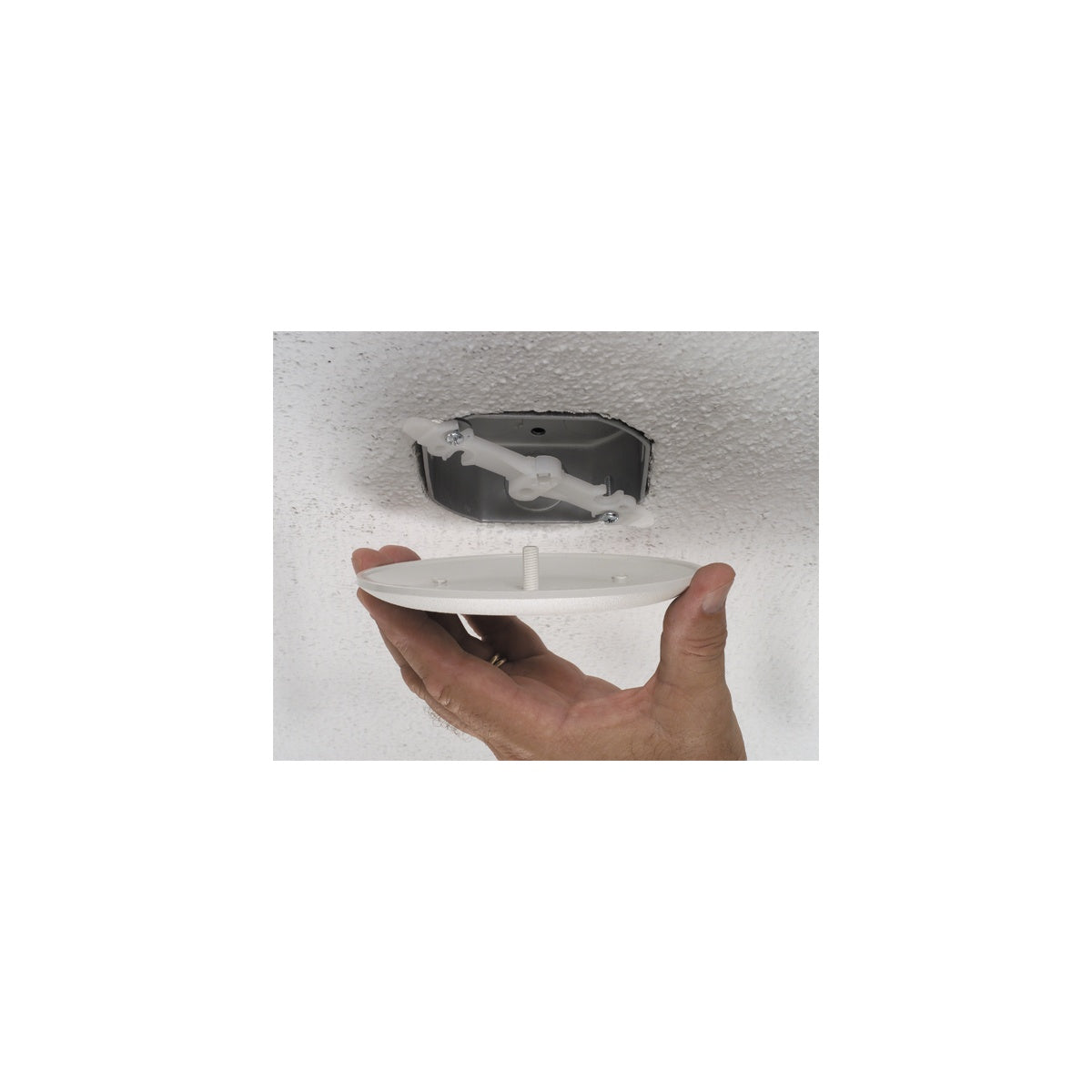

• Conceals poorly cut drywall and provides an attractive finish with screws hidden from view
• Patented design ensures secure and versatile installation

Downloads & Links

• Catalog Page
• CP3540 Line Drawing
• Specification Sheet
