Specifications

General Information

• ANSI Code: S50
• Lamp Type: 250W HPS
• Number of Lamps: 1 piece/unit
• Circuit Type: CWA
• Ballast Type: Magnetic HID
• Base Model: 71A8271
• Core Size: 4 x 4 (2 coil)
• Suitable For Outdoor Use: Yes
• Ignitor Catalog Number: LI501-H4
• Ignitor Temperature Rating: 105°C
• Capacitor Value: 35 MFD
• Capacitor Catalog Number: 7C350P24RA
• Capacitor Requirements: 240V
• Capacitor Temperature Rating: 105°C
• Capacitor Diameter/Oval Dimensions: 1.65 in
• Capacitor Height: 3.7 in
• Automatic Restart: No

Operating and Electrical

• Input Voltage: 120/208/240/277 V
• Input Frequency: 60 Hz
• Input Current (Open Circuit): 1.53/0.95/0.77/0.63 A
• Input Current (Starting): 1.61/0.89/0.8/0.68 A
• Input Current (Short Circuit): 1.16-1.74/0.64-0.96/0.56-0.85/0.49-0.74 A
• Secondary Short Circuit Current: 3.65-4.45 A
• Constant Wattage Deviation: Within Trapezoid
• Ballast Factor (Nom): 1
• Power Factor (Nom): 0.90
• Open Circuit Voltage: 187 V
• Input Current (Nom): 2.5/1.47/1.25/1.09 A A
• Input Power (Nom): 295 W
• Rated Lamp Power: 250 W

Wiring

• Wire Striplength: 0.5 mm
• Wire Length by Color: 12"
• Wire Type: Stranded
• Remote Wiring Configuration Allowed: Yes
• Max Ballast-Lamp Distance Remote Wiring: 2'
• Recommended Fuse Value: 7/4/4/3 A

Approval and Application

• Open Circuit Voltage Test (Volts): 170-205 V
• Approval Marks: ULR
• Temperature Marking: B/B/B/B
• UL Recognized: Yes
• Hipot Test (1 Minute): 2000 V
• Hipot Test (2 Seconds): 2500 V
• UL Insulation Class: H(180°C)
• UL Temperature Code: 1029B

Product Data

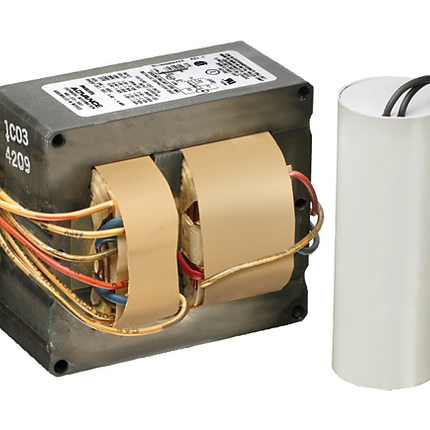

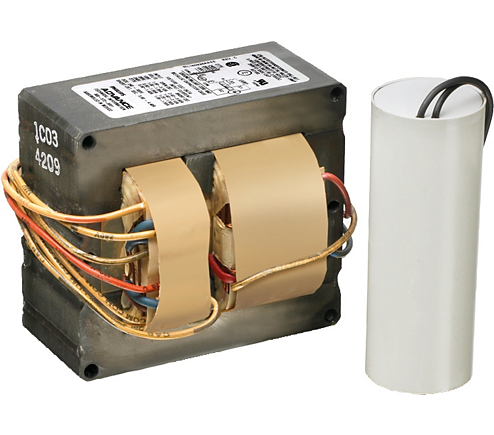

• Order product name: CORE & COIL HID 71A8271001D
• EAN/UPC - Product: 781087827116
• Order code: 913700556609
• Numerator - Quantity Per Pack: 1
• Numerator - Packs per outer box: 1
• Material Nr. (12NC): 913700556609
• Net Weight (Piece): 5.176 kg
