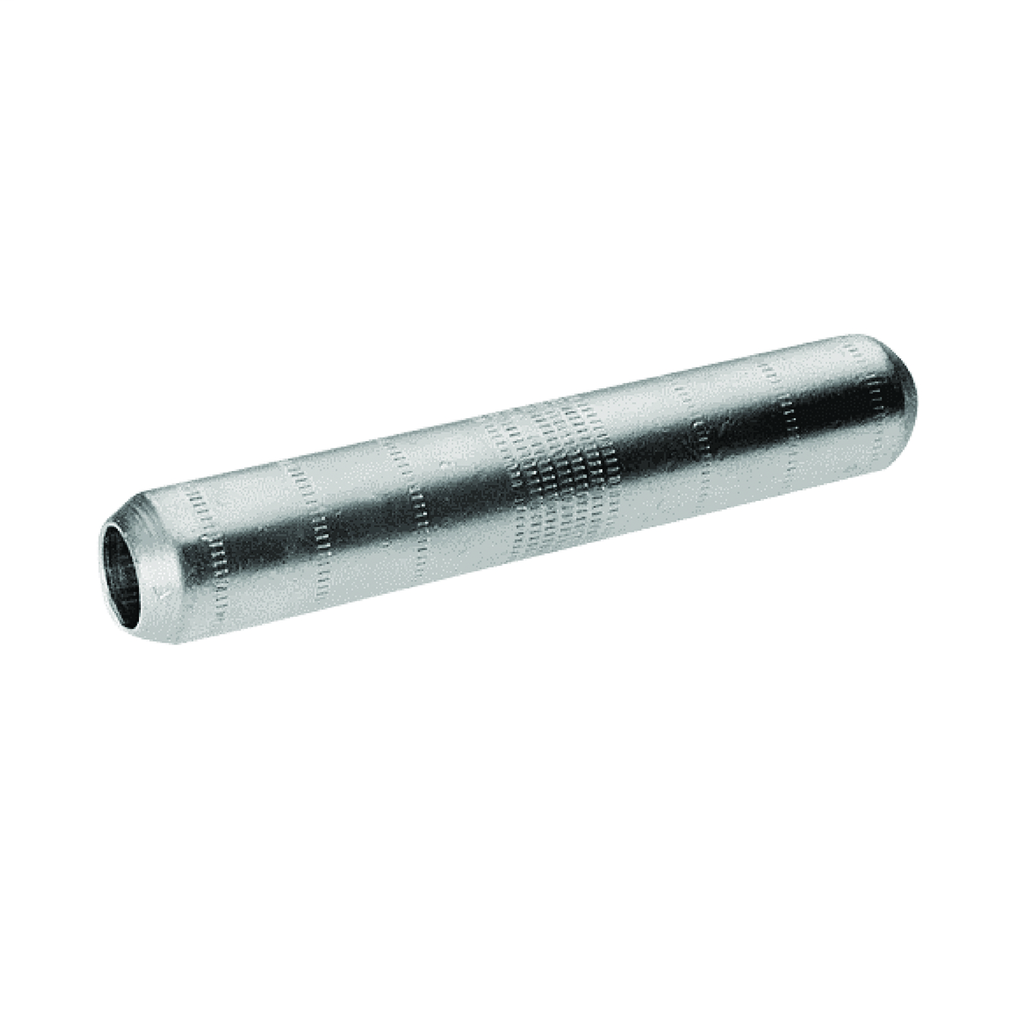

Copper YSP39T High Voltage Compression Splice

The Copper YSP39T is a high voltage compression splice designed for wire splice applications in electrical distribution and switchgear systems. Manufactured by Burndy, this splice is suitable for higher voltage applications ranging from 5 kV to 35 kV. It provides a reliable connection for 750 kcmil copper conductors, featuring a tapered end and tin-plated finish to enhance conductivity and corrosion resistance. This product is ideal for electrical distributors and lighting solutions requiring durable wire and cable splicing components.

Specifications

• Application: For Higher Voltage Applications From 5 KV Through 35 KV
• Conductor Size: 750 thousand circular mils
• Material: Copper
• Finish: Tin-Plated
• Color: Black
• Color Coding: Black
• Connector Type: Splice
• Barrel Style: Tapered
• Barrel Type: Standard
• Length Overall: 4.19 inches (106 mm)
• Strip Length: 2-1/8 inches
• Product Weight: 0.6800 lbs
• CSA Approved: Yes
• UL Listed: Yes
• RoHS Compliance Status: CM
• UPC: 781810001349

Features

• Seamless high conductivity copper construction
• Electro tin-plated for enhanced corrosion resistance
• Long barrel with tapered ends per EEI Standard TD160 to prevent corona emission
• Center plug permanently brazed in place to prevent oil passage in oil-filled conductors
• Provides a center strip for proper conductor insertion
• Oil stop feature to maintain splice integrity
