Copper YS8C Compression Splice – Wire Splice Solutions

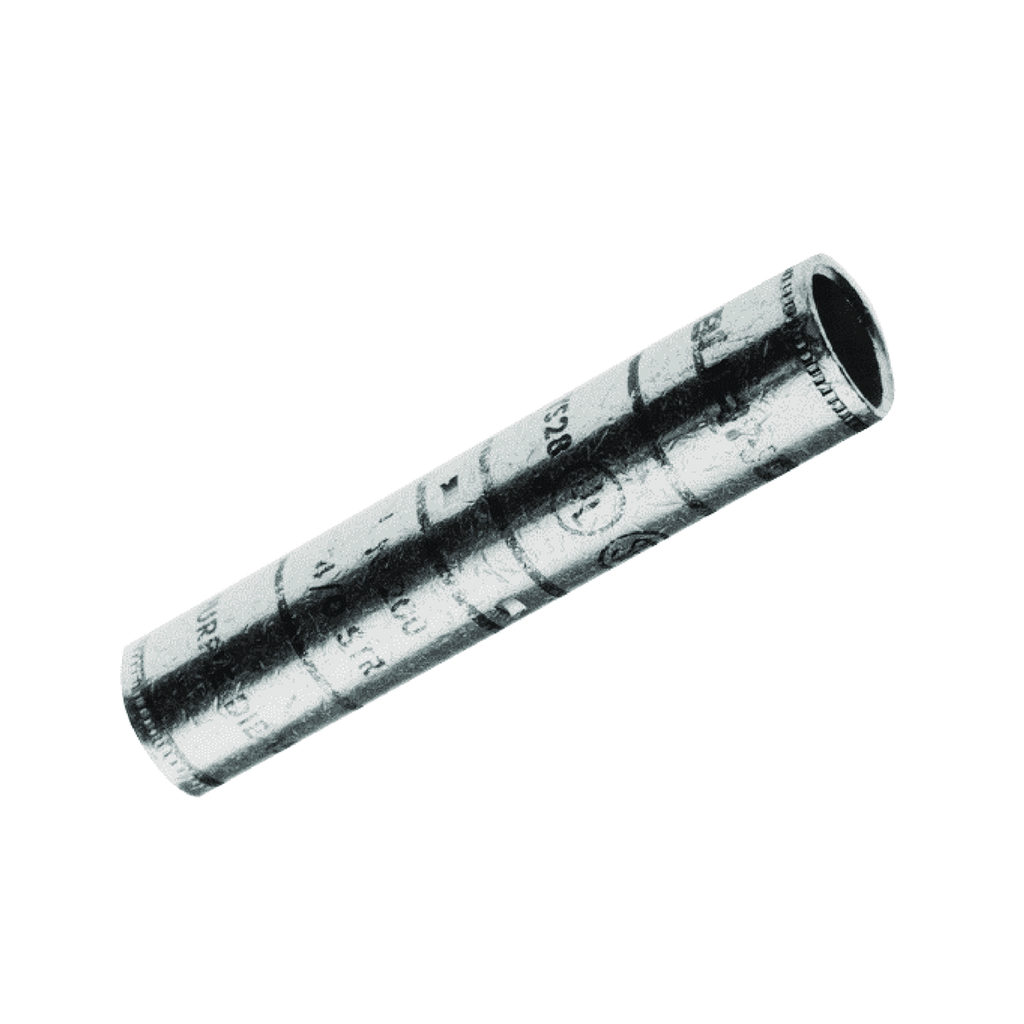

The Copper YS8C is a copper compression splice designed for reliable electrical connections in wire and cable applications. It is suitable for use by electrical distributors and switchgear suppliers requiring durable wire splice components. This product features a long barrel design with a tin-plated finish to ensure corrosion resistance and optimal conductivity, making it ideal for splicing 8 AWG conductors in various electrical installations.

Specifications

• Material: Copper
• Finish: Tin-Plated
• Conductor Size: 8 American Wire Gauge
• Splice Length: 1.75 inches
• Maximum Voltage: 35,000 volts
• Color: Black
• Color Coding: Red
• Product Weight: 0.0200 lbs
• CSA Certified: Yes
• Manufacturer: Burndy
• Manufacturer Part Number: YS8C
• UPC: 781810507414

Features

• Long barrel design for enhanced mechanical strength and secure wire splicing
• Tin-plated surface for corrosion resistance and improved electrical conductivity
• Compatible with 8 AWG copper conductors
• Suitable for high-voltage applications up to 35,000 volts
