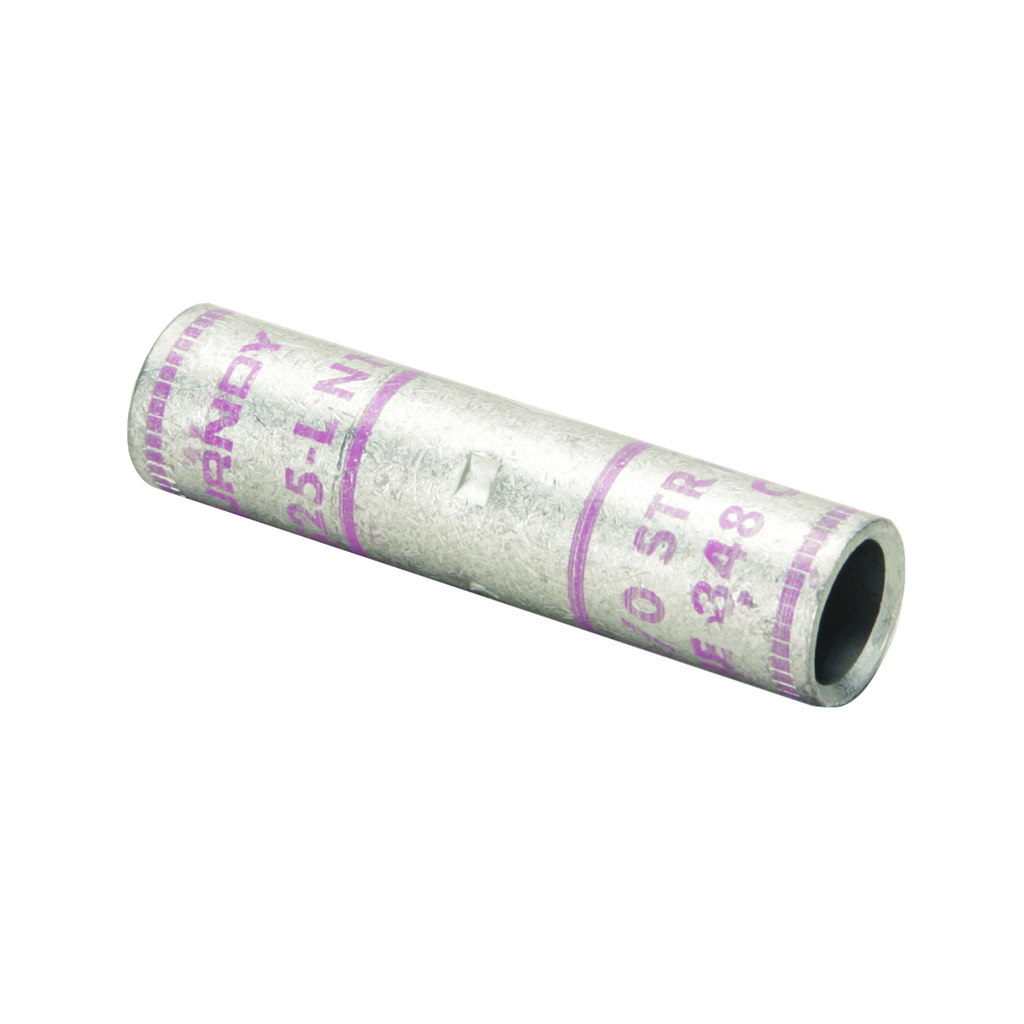

Copper YS6CLBOX Compression Splice for Electrical Wire Splicing

This Copper YS6CLBOX compression splice is designed for reliable wire splicing applications in electrical distribution and lighting solutions. It is suitable for use by electrical distributors and switchgear suppliers requiring secure and efficient wire and cable connections, particularly for 6 AWG conductor sizes. The splice features a tin-plated finish to enhance conductivity and corrosion resistance, supporting a maximum voltage rating of 35,000 volts.

Specifications

• Application: Wire Splice
• Material: Copper
• Finish: Tin-Plated
• Conductor Size: 6 American Wire Gauge
• Max. Voltage: 35000 volts
• Product Weight: 0.0200 lbs
• Color Coding: Blue
• Color: Black
• CSA Certified: Yes
• Manufacturer Part #: YS6CLBOX
• UPC: 781810555750

Features

• Copper compression design ensures secure electrical connection
• Short barrel splice length of 1.75 inches for compact installations
• Tin plating provides enhanced corrosion resistance and conductivity
• Suitable for high voltage applications up to 35,000 volts
• Color-coded for easy identification and installation

Downloads & Links

• Prop 65 Notice
• YS6CLBOX_MODEL-PDF
• YS6CLBOX_MODEL-IGES
• sd022390_1
• Spec Sheet
• YS6CLBOX_MODEL-STEP
