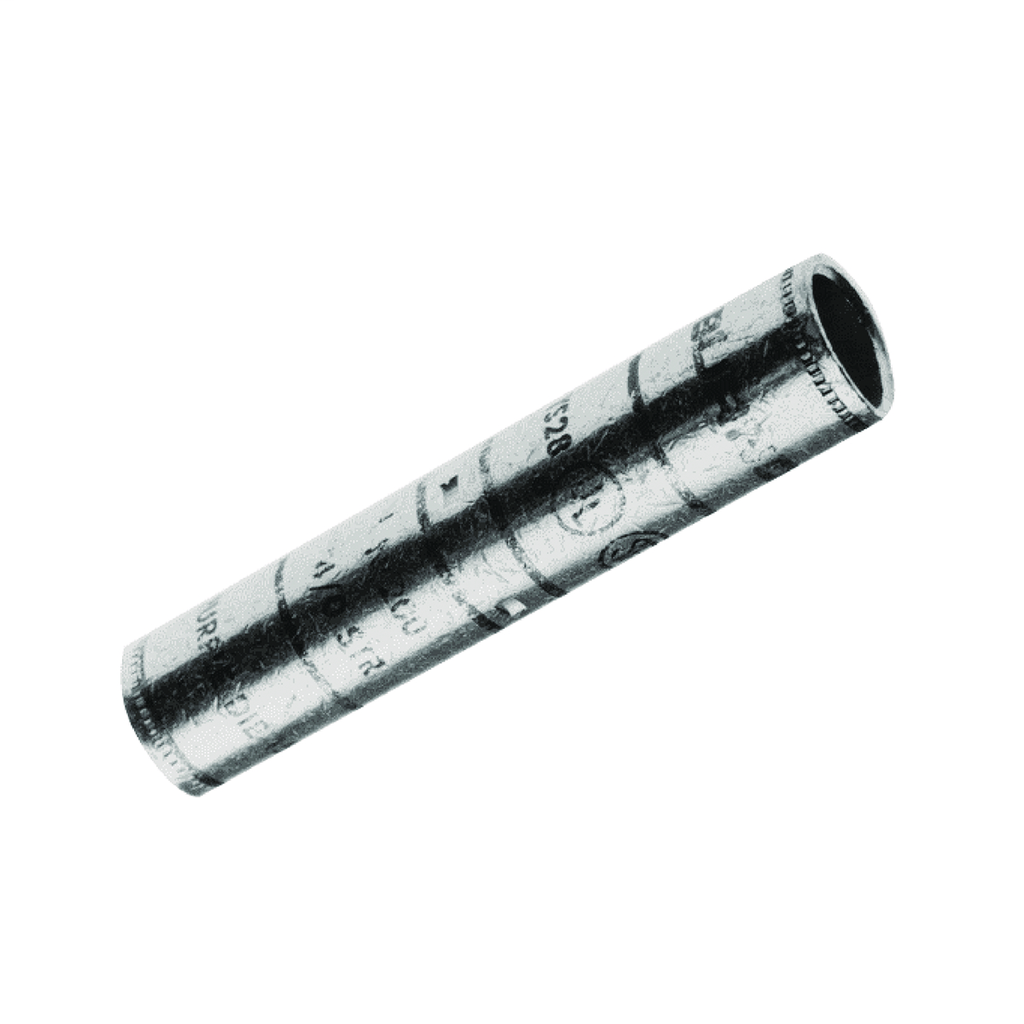

Copper YS3C Compression Splice – Wire Splice Solutions

The Copper YS3C is a copper compression splice designed for wire splicing applications in electrical distribution and lighting solutions. It is suitable for heavy-duty applications and can be used at voltages up to 35,000 volts, making it ideal for both standard 600-volt and higher voltage systems. This product is commonly utilized by electrical distributors and switchgear suppliers requiring reliable connections for 3 AWG copper conductors.

Specifications

• Application: Wire Splice for Heavy Duty Applications
• Material: Copper
• Finish: Tin-Plated (Electro Plated)
• Conductor Size: 3 American Wire Gauge (AWG)
• Color Code: White
• Color: Black
• Max. Voltage: 35,000 volts
• Splice Length: 2.80 inches
• Barrel Style: Chamfered
• Barrel Type: Long
• Product Weight: 0.0400 lbs
• Certification: CSA Approved, UL Listed

Features

• UL Listed for 90°C operation, rated from 600 volts up to 35 kV
• Long barrel length provides secure mechanical and electrical connections
• Four center conductor stops ensure proper conductor insertion
• High pull-out force enhances mechanical and electrical reliability
• Tin electroplated finish for corrosion resistance
