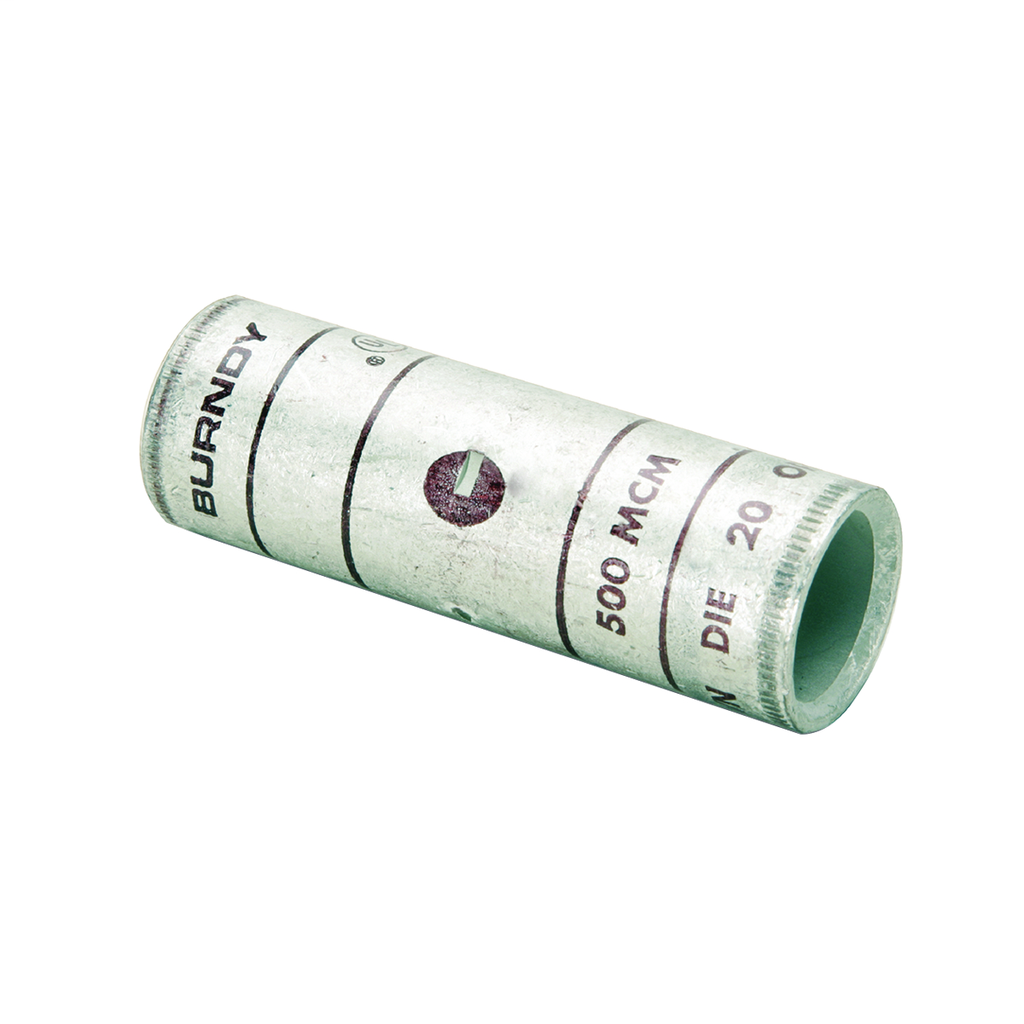

Copper YS34L Compression CU Reducer/Splice for Electrical Wire Splicing

This Copper YS34L compression reducer/splice is designed for wire splice applications in electrical distribution and wiring systems. It is suitable for use with 500 thousand circular mil (kcmil) stranded copper conductors, supporting voltage ratings up to 35,000 volts. The product is electro-tin plated for enhanced conductivity and corrosion resistance, making it an effective component for reliable electrical connections in switchgear and wiring installations.

Specifications

• Application: Wire Splice
• Material: Copper
• Finish: Tin-Plated
• Conductor Size: 500 thousand circular mils
• Max. Voltage: 35000 volts
• Product Weight: 0.3100 lbs
• Color: Black
• Color Coding: Brown
• CSA Certified: Yes
• Manufacturer Part #: YS34L
• UPC: 781810508558

Features

• Compression type copper reducer/splice for secure electrical connections
• Electro-tin plated finish for corrosion resistance and improved conductivity
• Standard barrel design compatible with 500 kcmil stranded copper conductors
• Rated for use in electrical systems up to 35kV
