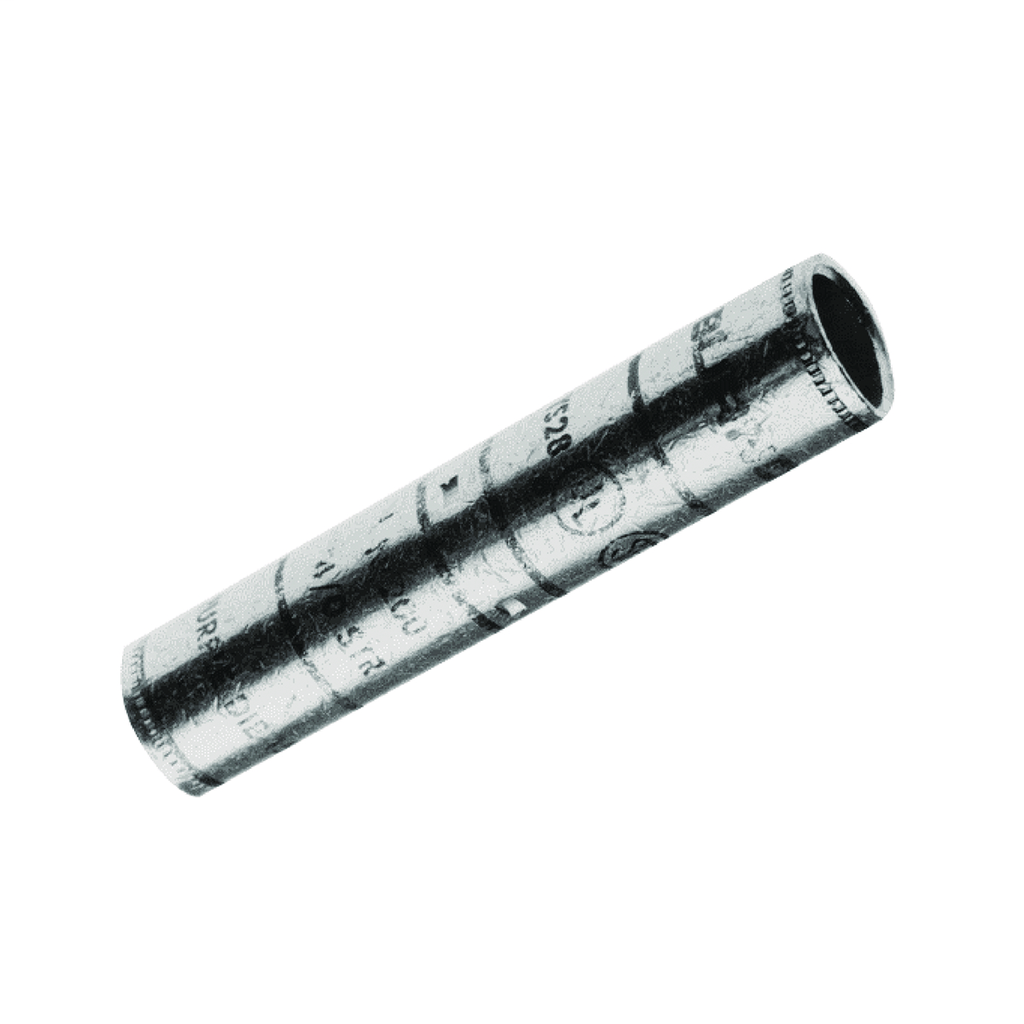

Copper YS32 Copper Compression Splice

The Copper YS32 is a copper compression splice designed for wire splice applications, suitable for use by electrical distributors and switchgear suppliers. It provides reliable electrical connectivity for wire and cable systems, supporting a maximum voltage rating of 35,000 volts. This splice is tin-plated to ensure corrosion resistance and long-term durability in electrical installations.

Specifications

• Application: Wire Splice
• Material: Copper
• Finish: Tin-Plated
• Conductor Size: 400 thousand circular mils
• Splice Length: 4.62 inches
• Max. Voltage: 35000 volts
• Color: Black
• Color Coding: Blue
• Product Weight: 0.3600 lbs
• CSA Certified: Yes
• Manufacturer: Burndy
• Manufacturer Part #: YS32

Features

• Long barrel design for secure compression connections
• Tin-plated finish for enhanced corrosion resistance
• Compatible with 400 kcmil copper conductors

Downloads & Links

• Prop 65 Notice
• YS32_MODEL-IGES
• YS32_MODEL-STEP
• YS32_MODEL-PDF
• SD..007774
• Spec Sheet
