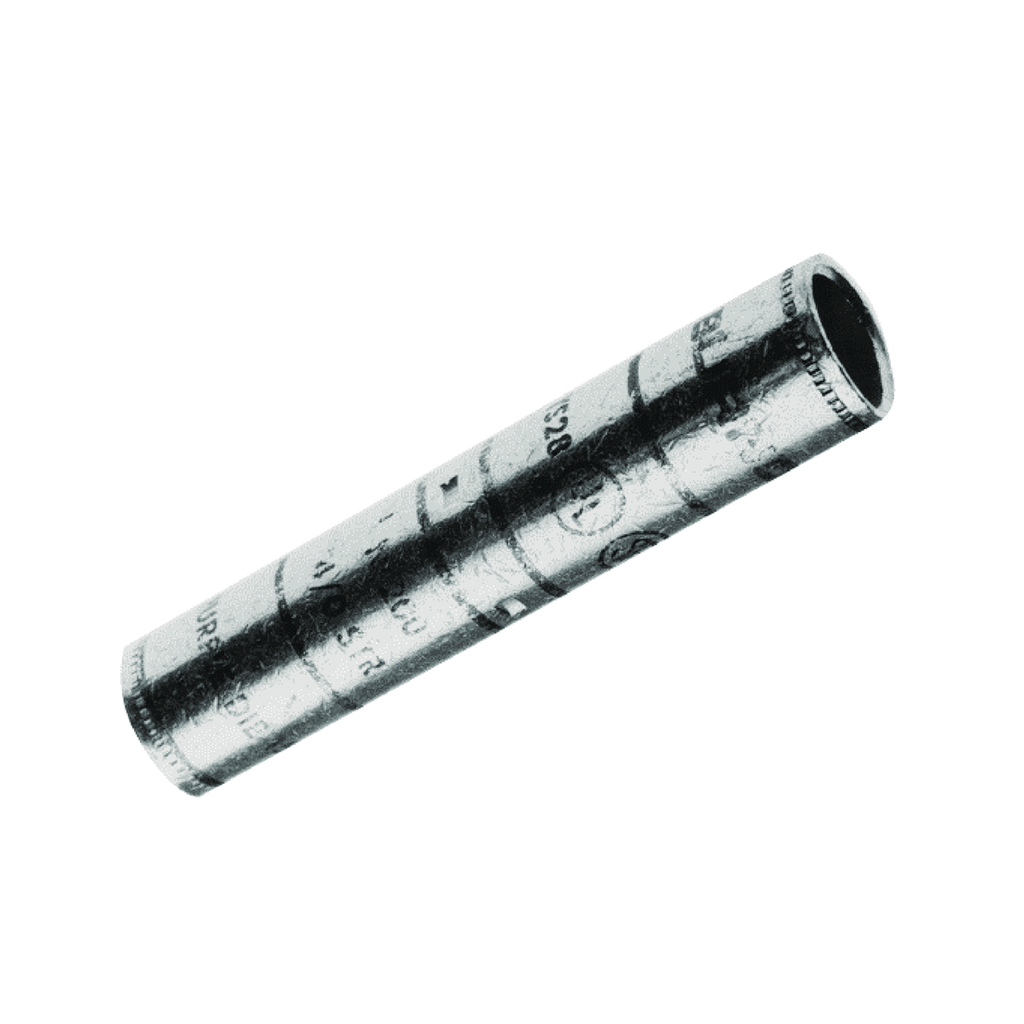

Copper YS2C Compression Splice – Electrical Wire Splice

The Copper YS2C is a copper compression splice designed for wire splicing applications in electrical distribution and lighting solutions. Manufactured by Burndy, this splice is suitable for heavy-duty applications and can be used at voltages up to 35,000 volts. It is ideal for electrical distributors and switchgear suppliers requiring reliable and secure wire and cable connections.

Specifications

• Material: Copper
• Finish: Tin-Plated (Electro Plated)
• Conductor Size: 2 American Wire Gauge (AWG)
• Application: For Heavy Duty Applications and Used at Higher Voltages Up to 35 kV
• Color Code: Brown
• Color: Black
• Max. Voltage: 35,000 volts
• Splice Length: 2.82 inches (Overall Length)
• Barrel Style: Chamfered
• Barrel Type: Long
• Product Weight: 0.0500 lbs
• Certification: CSA Approved, UL Listed
• Industry Standards Met: UL 486A-486B

Features

• UL Listed for 90°C operation, suitable for 600 volts to 35 kV
• Long barrel length designed for secure and reliable wire splicing
• Four center conductor stops to ensure proper conductor insertion
• High pull-out force for enhanced mechanical and electrical integrity
• Tin plating provides corrosion resistance and improved conductivity
