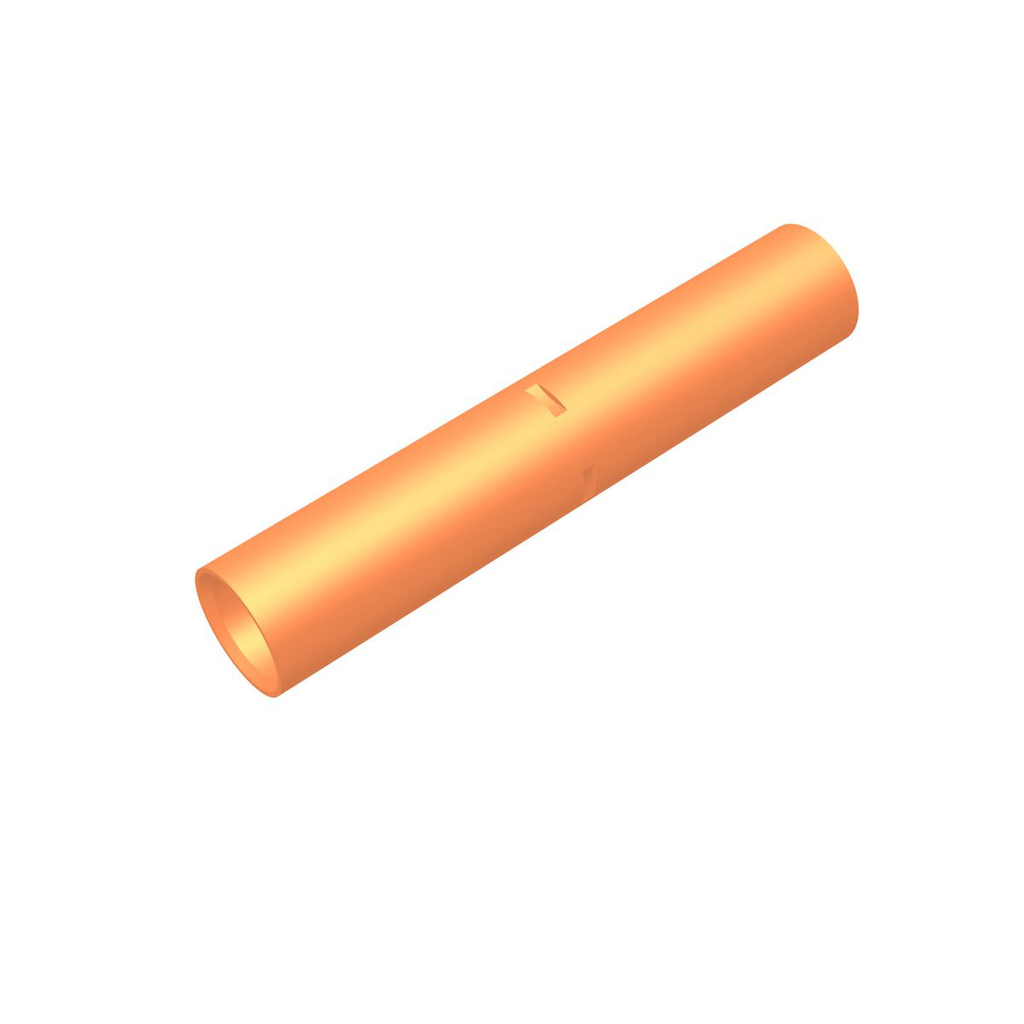

Copper YS1CPULL – Wire Splice Tubing

The Copper YS1CPULL is a high-quality copper splice tubing designed for electrical distributors and switchgear suppliers requiring reliable wire and cable connections. This product is engineered for wire splice applications, providing robust and efficient electrical continuity in lighting solutions and other electrical systems. Featuring a long barrel design with beveled entry, it supports conductor sizes of 1 AWG and is suitable for use in systems rated up to 35,000 volts (35 kV).

Specifications

• Application: Wire Splice
• Material: Copper
• Finish: Tin-Plated (Bright)
• Color Coding: Green
• Conductor Size: 1 AWG
• Maximum Voltage Rating: 35,000 volts (35 kV)
• Minimum Voltage Rating: 600 volts
• Barrel Style: Chamfered
• Barrel Type: Long
• Length Overall: 3.06 inches (78 mm)
• Die Index: 11
• Industry Standards Met: UL 486A-486B
• CSA, ETL, UL Recognized, cULus Certifications: Not Certified
• Product Weight: 0.0600 lbs
• UPC: 781810090084
• Manufacturer: Burndy
• Manufacturer Part Number: YS1CPULL

Features

• Long barrel length for secure conductor engagement
• Beveled entry facilitates easy wire insertion
• Four center conductor stops ensure accurate wire positioning
• High pull-out force for durable mechanical and electrical connection
• Tin plating provides corrosion resistance and enhanced conductivity
• Compatible with standard compression tooling for efficient installation
