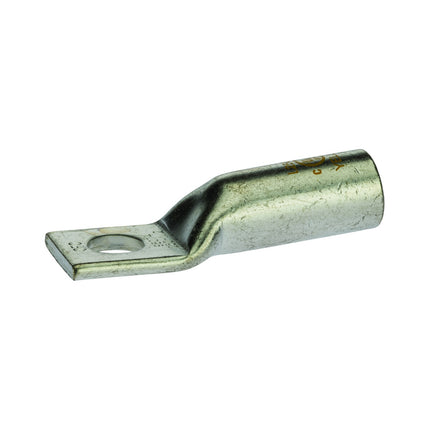

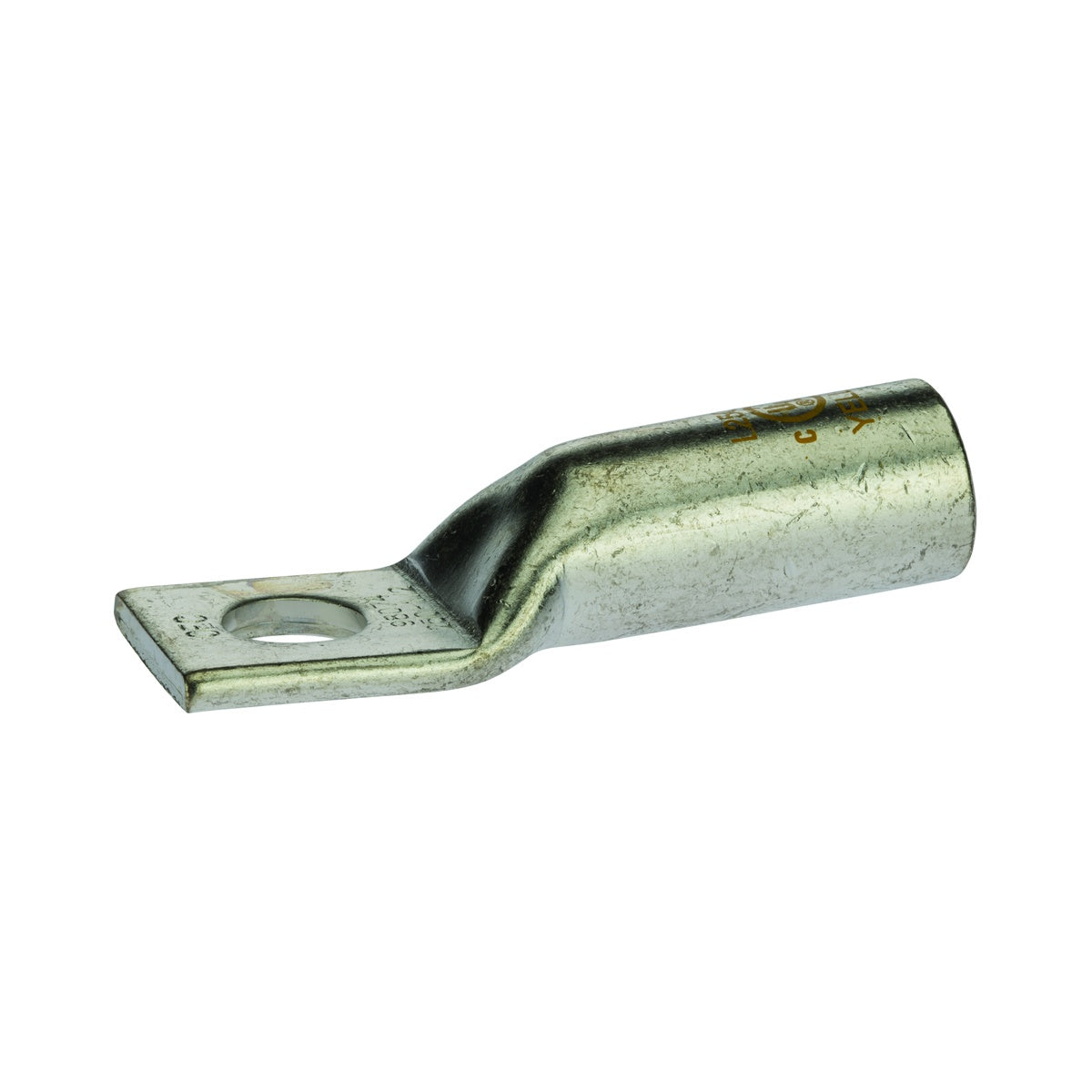

Copper Yellow Compression Long Lug, 250 MCM, 1/2” Mount – Compression Connector

The NSI Copper Yellow Compression Long Lug is designed for terminating, splicing, and tapping power connectors in electrical distribution systems. It is suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers. This lug accommodates 250 MCM conductors and features a 1/2” mounting hole for secure installation.

Specifications

• Material: Copper
• Finish: Tin-Plated
• Color: Yellow
• Cable Size: 250 MCM (STR)
• Mounting: 1/2 Mounting Hole
• Number of Holes: 1
• Length: 3.03 in
• Width: 1.09 in
• Height: 0.75 in
• Max. Temperature: 194 degrees fahrenheit
• Environmental Conditions: 90 C
• Product Weight: 4.25
• Manufacturer Part #: L25048
• Country Of Origin: India

Features

• Standard installation hole sized for 1/2” mounting bolts
• Chamfered port designed for 250 MCM conductor termination
• Tin-plated copper construction for improved conductivity and corrosion resistance
• Legible die index and yellow color-coding for easy identification
• Closed barrel design sealed against moisture and contamination
• Creates vibration-resistant, mechanically strong connection when crimped
• Easy installation with standard crimp tool
