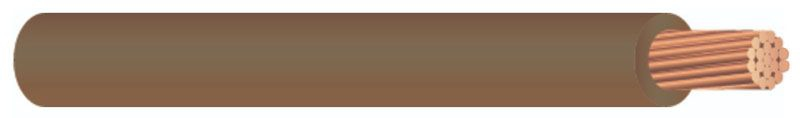

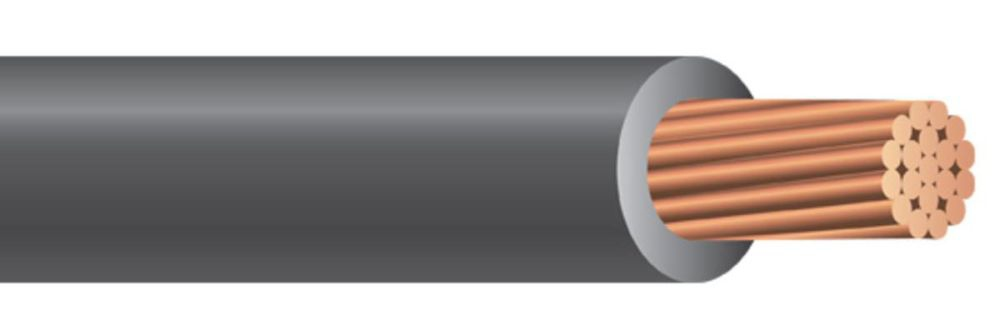

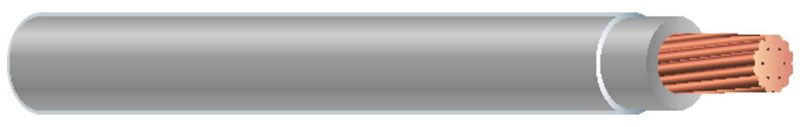

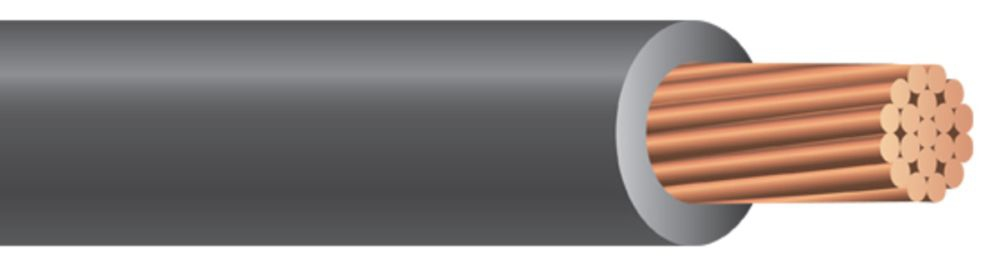

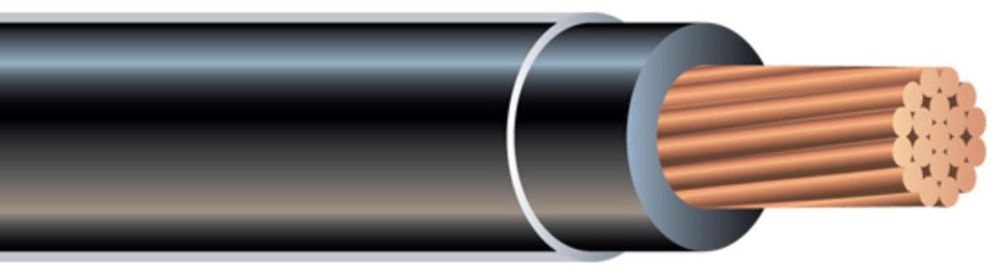

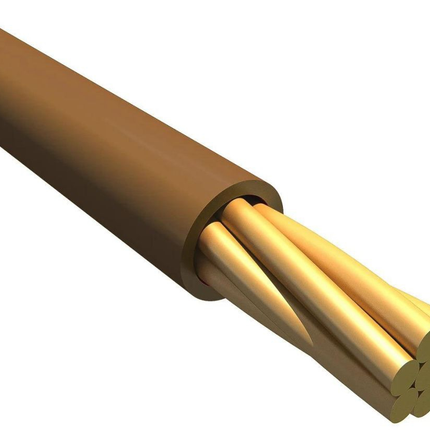

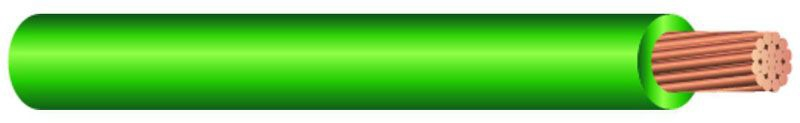

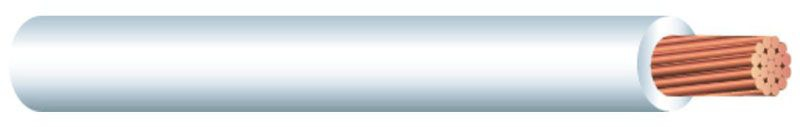

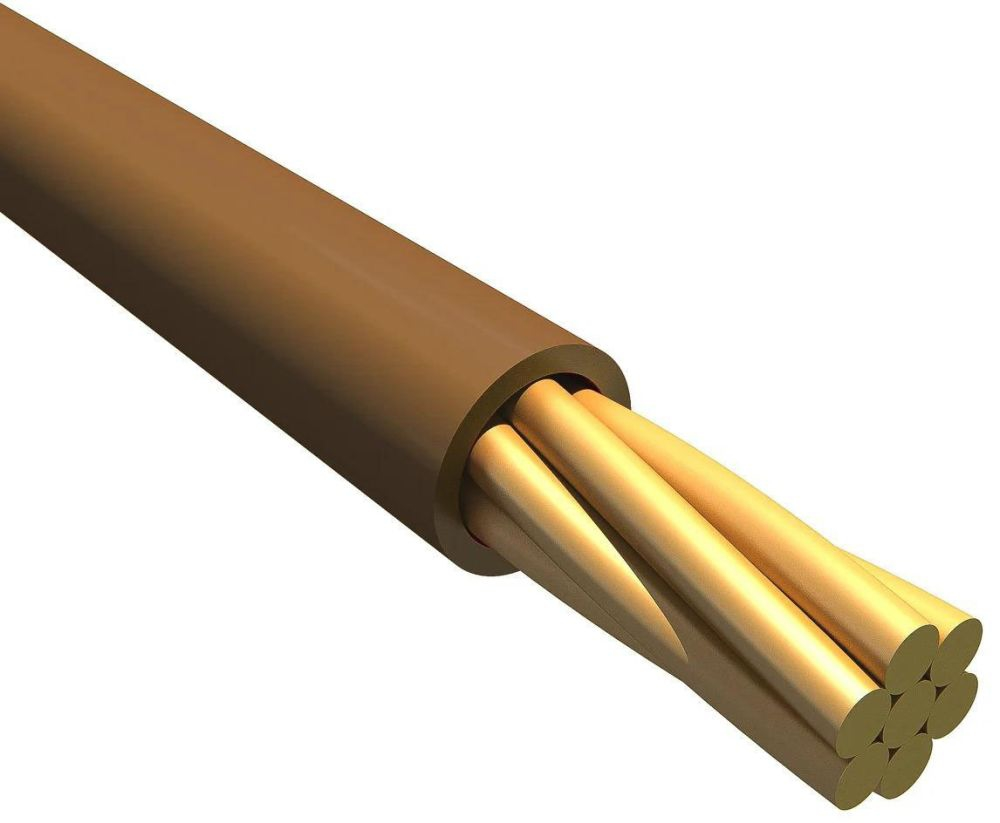

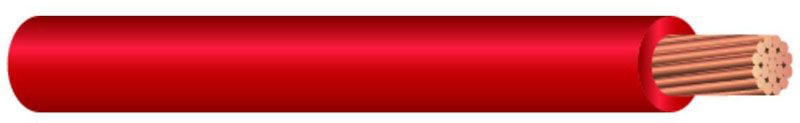

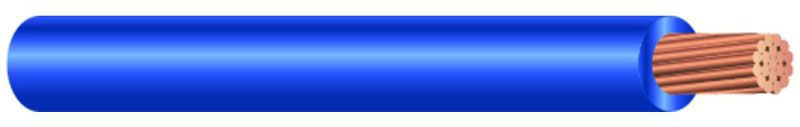

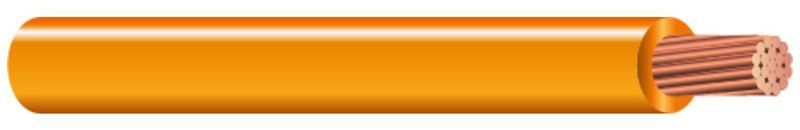

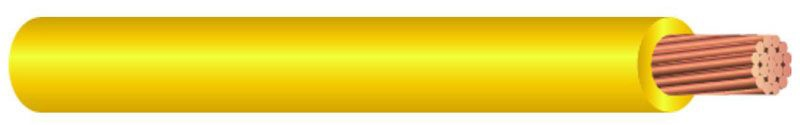

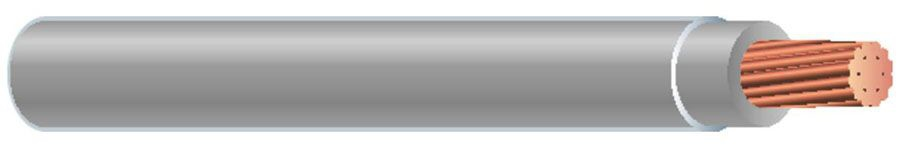

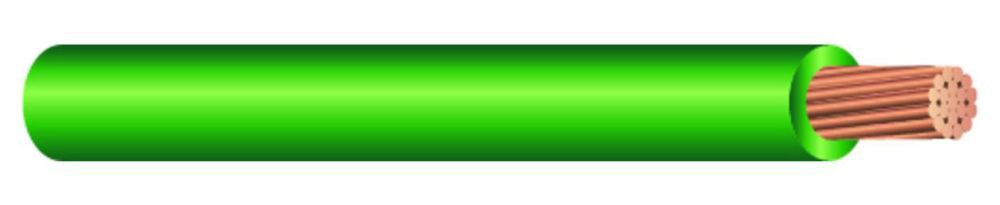

Copper XHHW 7 Stranded Wire | Various Colors & Sizes
Copper XHHW 7 Stranded Wire | Various Colors & Sizes
Total Price: $2.20 per foot Sold in increments of 1 foot
Description
Features
Additional Information
- Applicable Standard: ICEA S-66-524, NEC 310
- Insulation Thickness: 30 Mil
- Application: Power Distribution and Branch Circuits in Residential, Commercial, and Industrial Buildings
Specifications
- Type: XHHW
- Voltage Rating: 600 V
- Current Rating: 25-40 Ampere (75 Deg C), 30-40 Ampere (90 Deg C)
- Conductor Material: Annealed Copper
- Conductor Size: 10-12 AWG
- Stranding: 7 Strands
- Insulation Material: Cross-Linked Polyethylene
- Outer Diameter: 152-176 Mil
- Length: Available in 2500 Ft and 500 Ft
- Temperature Rating: 90 Deg C (Dry), 75 Deg C (Wet)
- Weight: 28-42 Lb/MFt
- Package Type: Spool/Reel or Coil
- Approval: UL 44
Downloads
Specification/TechnicalDesigned for superior performance, this wire type is ideal for various applications including power distribution and branch circuits, ensuring compliance with industry standards. The insulation is crafted to withstand abrasion, moisture, and heat, making it a reliable choice for both indoor and outdoor installations. With a robust construction of soft annealed copper and cross-linked polyethylene insulation, it guarantees durability and efficiency in electrical systems. Whether you are working on residential, commercial, or industrial projects, this wire type meets the highest standards for safety and reliability.
More Information
Manufacturer Catalog Number
XHHW-14-BLK-7STR-CU-500CL WIRE
Country of Origin
Various
Conductor Material
Copper
Current
20 amperes
Voltage
600 volts
