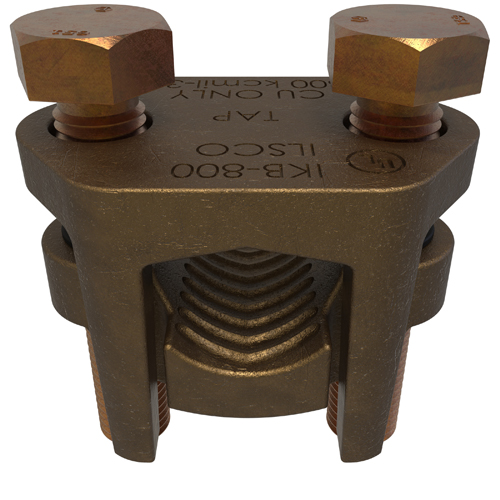

Copper Two-Bolt Split Bolt, Main Conductor Range 800-400, Tap Range 800-3/0, UL
SKU: #257690
Part: #IKB-800
UPC: 783669480061
Copper Two-Bolt Split Bolt, Main Conductor Range 800-400, Tap Range 800-3/0, UL
SKU: #257690
Part: #IKB-800
UPC: 783669480061
Next day delivery
Description
Copper Two-Bolt Split Bolt, Main Conductor Range 800-400, Tap Range 800-3/0, UL – Electrical Connector
This Copper Two-Bolt Split Bolt is designed for secure mechanical connections in electrical distribution systems. It is suitable for joining solid copper conductors within specified ranges and is UL 486A/B listed, making it a reliable component for electrical distributors and switchgear suppliers handling wire and cable connections.
Specifications
- Manufacturer: ILSCO
- Manufacturer Part #: IKB-800
- Conductor Type: Solid
- Number of Conductors: 2
- Connection Type: Mechanical
- Material: Copper
- Conductor Material: Copper
- Color: Copper
- Main Conductor Range: 800 kcmil - 400 kcmil (CU Stranded)
- Tap Conductor Range: 800 kcmil - 3/0 Str (CU Stranded)
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Dimensions (in): Length 2.538, Width 1.688, Height 2.825
- Product Weight: 1.27 lb
- UL Listing: UL 486A/B Listed, UL File Number E6207
- Direct Burial: No
- Carton Quantity: 3
Features
- Two-bolt design for secure and reliable conductor connections
- External hex drive type for ease of installation
- Constructed entirely of copper for optimal conductivity and corrosion resistance
- UL listed for safety and compliance in electrical installations
- Suitable for use with copper stranded conductors in main and tap applications
