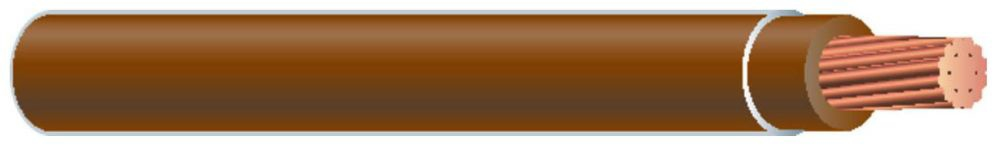

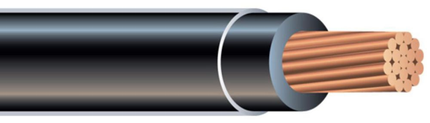

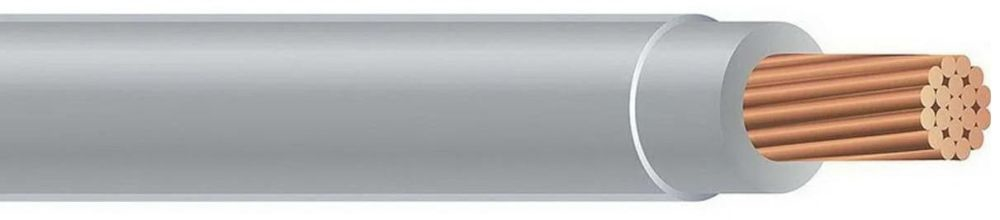

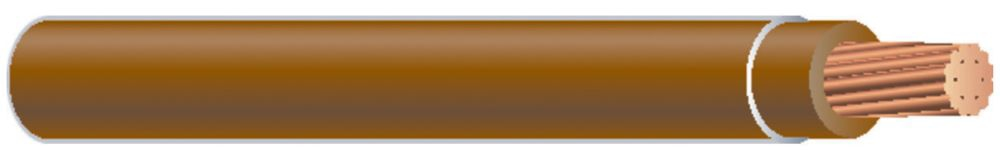

Copper THHN 61 Stranded Wire | Various Colors & Sizes
SKU: #268004
Part: #THHN-600-BLK-61STR-CU
UPC: 911111111311
Copper THHN 61 Stranded Wire | Various Colors & Sizes
SKU: #268004
Part: #THHN-600-BLK-61STR-CU
UPC: 911111111311
Total Price: $24.01 per foot Sold in increments of 1 foot
Description
Features
Additional Information
- Applicable Standard: NEMA WC70, NFPA 70
- Insulation Thickness: 70 Mil
- Jacket Thickness: 9 Mil
- Application: Ideal for feeders and branch circuits in commercial and industrial settings
Specifications
- Type: THHN
- Voltage Rating: 600 V
- Current Ratings:
- 455 Ampere (60 Deg C)
- 545 Ampere (75 Deg C)
- 615 Ampere (90 Deg C)
- Conductor Material: Copper
- Conductor Sizes:
- 1000 KCMIL
- 750 KCMIL
- 600 KCMIL
- Stranding: 61 Strands
- Jacket Material: Nylon
- Insulation Material: PVC, Thermoplastic
- Outer Diameter:
- 1275 Mil (1000 KCMIL)
- 1126 Mil (750 KCMIL)
- 1024 Mil (600 KCMIL)
- Lengths Available: 500 Ft, 1000 Ft, 2500 Ft
- Temperature Rating: 90 Deg C (Dry)
- Weight:
- 3257 Lb/MFt (1000 KCMIL)
- 2464 Lb/MFt (750 KCMIL)
- 1987 Lb/MFt (600 KCMIL)
- Package Type: Reel
- Approval: UL 83/758/1063/1581, UL (Canada and US)
Downloads
CatalogThis high-quality wire is designed to meet rigorous standards, ensuring reliability for both commercial and industrial applications. With a robust construction featuring a nylon jacket and PVC insulation, it is built to withstand demanding environments while providing excellent electrical performance. Choose this wire for your next project and experience the benefits of superior conductivity and durability.
