Features

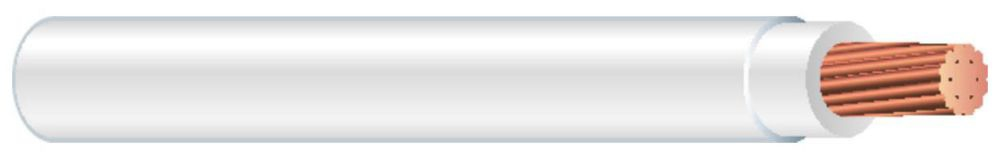

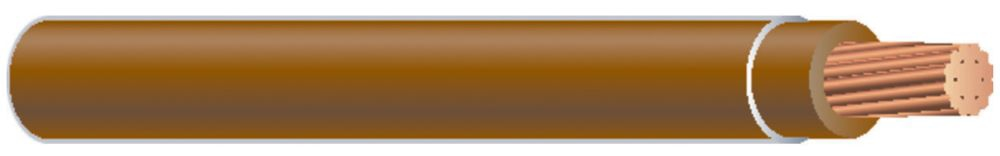

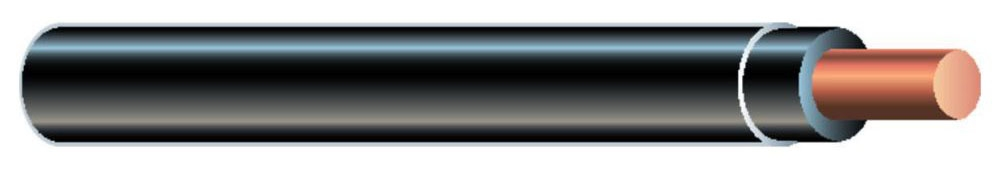

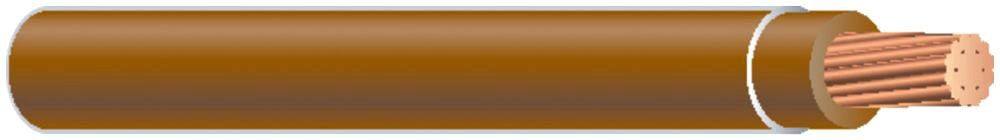

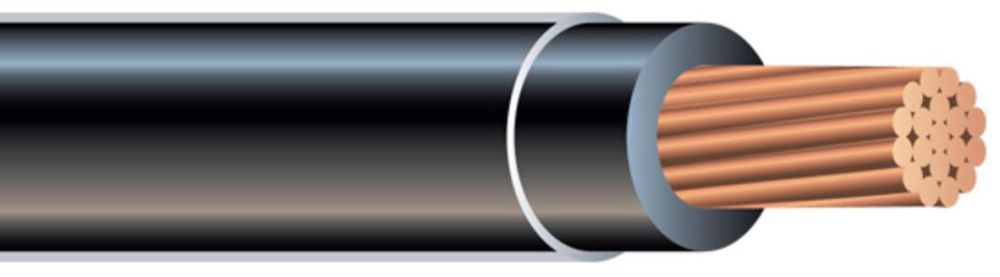

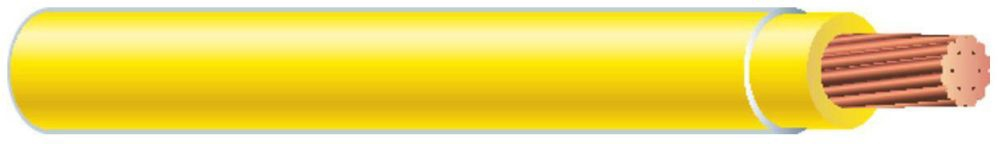

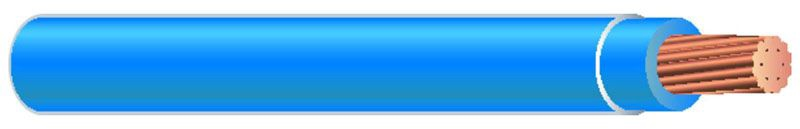

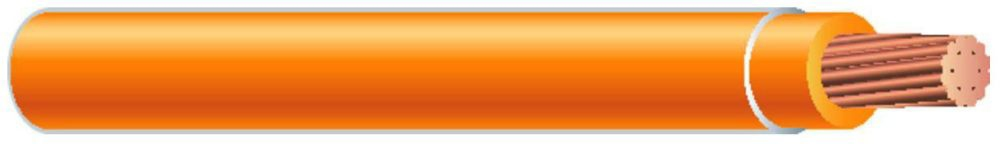

• THHN-2 High Speed Cable is a versatile solution for most general wiring applications, including service entrance, feeders, and branch circuits.
• Low friction nylon jacket provides easy pulling for larger gauge wires, ensuring efficient installation.
• Rated for gasoline and oil resistance, this cable is also resistant to abrasion, acids, alkalines, ozone, and water, making it suitable for various environments.
• Conductor is appropriate for use in dry locations with a maximum temperature of 90°C.

Additional Information

• Compliance with applicable standards: NEMA WC70, NFPA 70
• Insulation thickness: 60 mil
• Jacket thickness: 8 mil
• Ideal for feeders and branch circuits in commercial and industrial settings.

Specifications

• Type: THHN
• Voltage rating: 600 V
• Current ratings: 215 Ampere (60°C), 255 Ampere (75°C), 290 Ampere (90°C)
• Conductor material: Copper
• Conductor sizes available: 250 KCMIL, 300 KCMIL, 350 KCMIL, 400 KCMIL, 500 KCMIL
• Stranding: 37 strands
• Jacket material: Nylon
• Insulation material: PVC, thermoplastic
• Outer diameter: 694 mil to 926 mil depending on size
• Available lengths: up to 3500 ft
• Temperature rating: 90°C (dry)
• Weight: 851 lb/MFt to 1655 lb/MFt based on conductor size
• Package type: Reel
• Approval: UL 83/758/1063/1581, UL (Canada and US)
