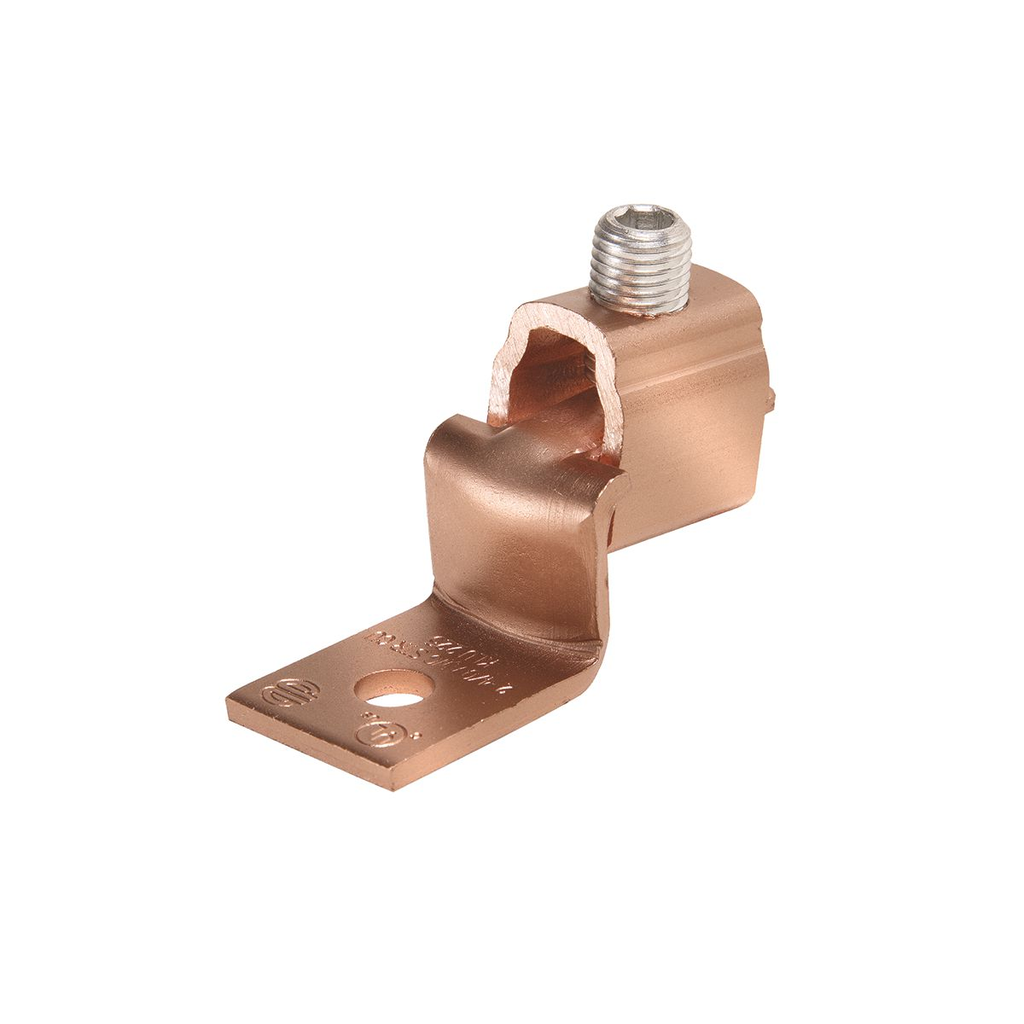

Copper Terminal, Offset Tongue, 1 Hole, 4-3/0 AWG (Str), 3/8" Stud, 1 Screw – Copper Electrical Terminal

This copper terminal is designed for joining a wide range of copper cables to equipment pads or bars, making it suitable for electrical distributors and lighting solutions requiring reliable wire and cable connections. It features an offset tongue with a single hole and a pressure bar connection type, facilitating secure and efficient installation in switchgear and electrical distribution applications.

Specifications

• Material: Copper
• Conductor Size Range: 4 AWG to 3/0 AWG (Stranded Copper)
• Hole Size: 0.39 inches
• Stud Size: 3/8 inch
• Connection Type: Pressure Bar
• Width: 0.75 in
• Product Weight: 0.1400 lbs
• Number of Holes: 1
• Number of Screws: 1
• Manufacturer Part #: KLU175
• Country of Origin: India
• Recommended Installation Torque: 120 in-lb

Features

• Range-taking design reduces SKUs required in inventory
• High conductivity copper alloy for long-lasting reliable contact
• Compact design for easy installation
• Slot Robertson screw, hex head, and hex socket bolt compatible, requiring no special installation tools
