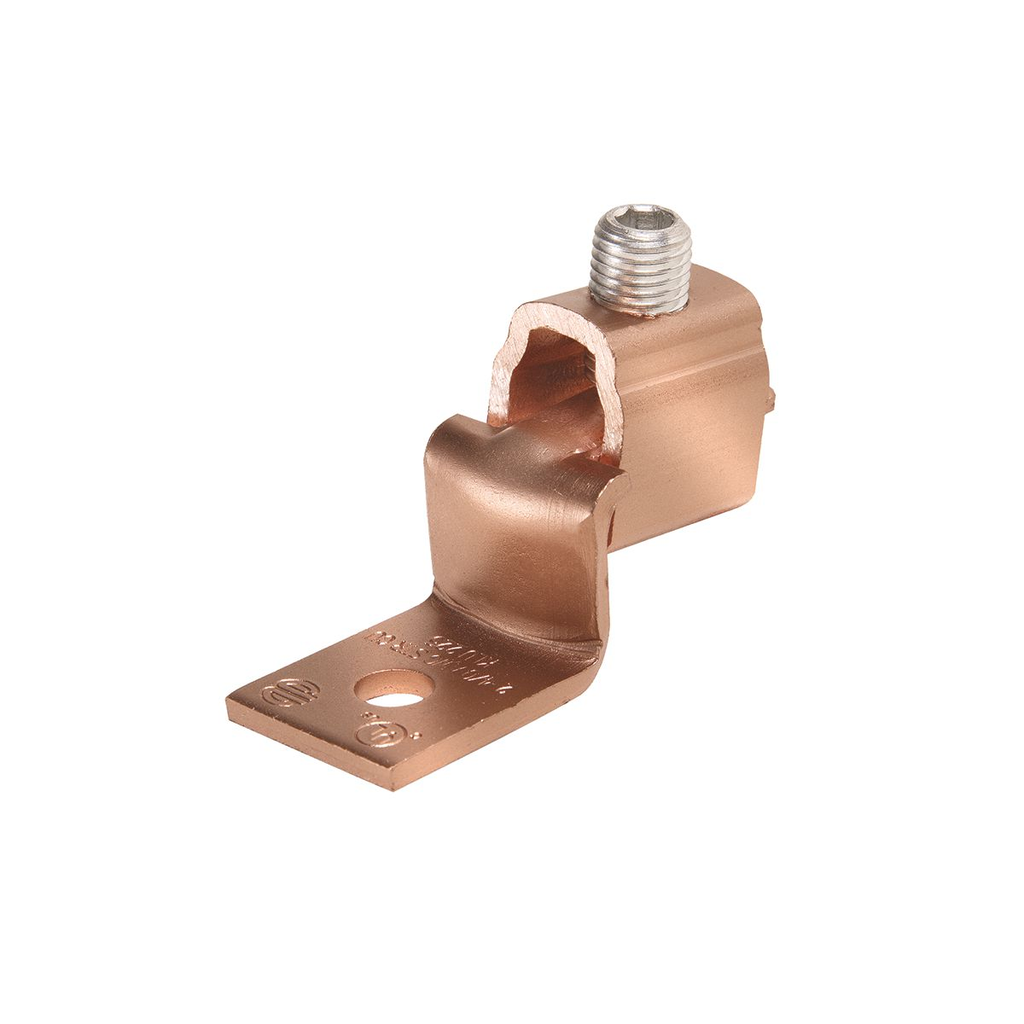

Copper Terminal, Offset Tongue, 1 Hole, 2-1/0 AWG (Str), 1/4" Stud, 1 Screw
SKU: #331524
Part: #KLU125
UPC: 781810351390
Copper Terminal, Offset Tongue, 1 Hole, 2-1/0 AWG (Str), 1/4" Stud, 1 Screw
SKU: #331524
Part: #KLU125
UPC: 781810351390
Description
Copper Terminal, Offset Tongue, 1 Hole, 2-1/0 AWG (Str), 1/4" Stud, 1 Screw - Copper Electrical Terminal
This copper terminal is designed for joining a wide range of copper cable to equipment pads or bars, making it suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable connections. It features an offset tongue with a single hole and a pressure bar connection type, optimized for secure and efficient electrical installations.
Specifications
- Material: Copper
- Application: For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bar
- Conductor Size Range: 2 AWG to 1/0 AWG
- Connection Type: Pressure Bar
- Number of Holes: 1
- Number of Screws: 1
- Screw Type: Slot
- Hole Size: 0.26 inches (7 mm)
- Stud Size: 1/4 inch
- Width: 0.62 inches
- Overall Length: 1.98 inches (50 mm)
- Installation Torque Recommended: 50 in-lb
- Hardware Type: 3/8 UNF Slotted Set Screw
- Country of Origin: India
- Manufacturer: Burndy
- Manufacturer Part Number: KLU125
- UL Recognized: Yes (cULus)
- Industry Standard: UL467
- RoHS Compliance Status: CM
Features
- Offset tongue design for versatile cable connection
- Pressure bar connection ensures secure electrical contact
- Constructed from high-conductivity copper material
- Single-hole configuration for straightforward installation
- Compatible with 2 AWG to 1/0 AWG stranded copper conductors
- Unplated finish suitable for standard electrical applications
- Includes one slotted set screw for reliable fastening
- Meets UL467 industry standards for grounding and bonding
