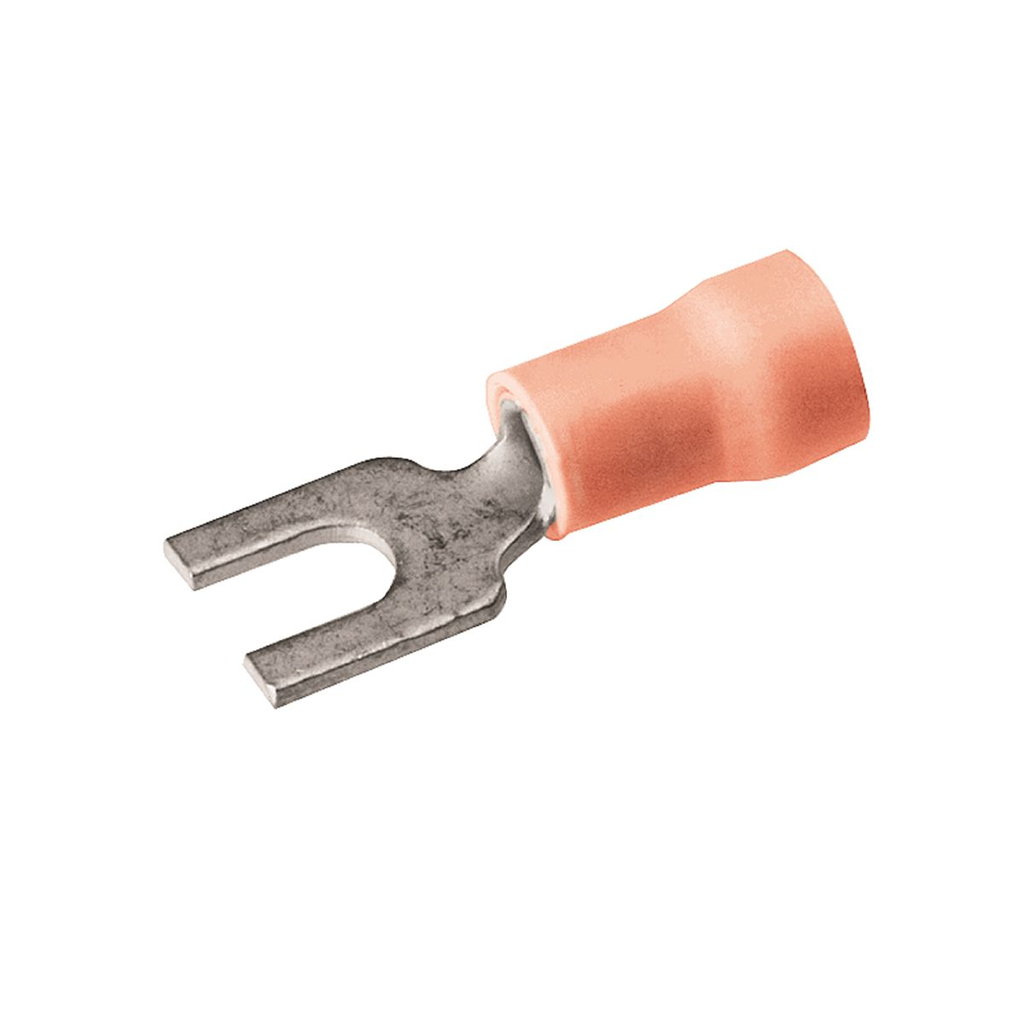

Copper Terminal, Fork Tongue, 22-16 AWG, Vinyl Insulated – Electrical Wire and Cable Connector

This copper fork tongue terminal is designed for commercial and light duty industrial control and power circuit applications. It provides reliable electrical connections for wire and cable installations, suitable for use by electrical distributors and switchgear suppliers seeking durable, high-conductivity terminals with vinyl insulation for safety and longevity.

Specifications

• Conductor Size: 22 - 16 AWG
• Connection Type: Fork Terminal
• Material: Copper
• Plating Type: Tin
• Insulation Type: Vinyl
• Color Coding: Red
• Hole Size: 0.17 inches
• Width: 0.17 in
• Voltage Maximum: 600 V
• Length Overall: 0.86 in (22 mm)
• Product Weight: 2.4 grams
• Country of Origin: United States
• UL Listed: Yes
• CSA Approved: Yes
• RoHS Compliant: Yes

Features

• Constructed of pure electrolytic copper for maximum conductivity and durability
• Fork tongue design allows faster installation with screw loosening only
• Electro-tin plating provides corrosion resistance for long-lasting performance
• Long brazed seam barrel with deep V groove inner serrations ensures excellent crimp holding power
• Inspection hole/skive allows easy visual verification of proper wire insertion
• Two or more terminals can be stacked on a common stud
• Vinyl insulation offers electrical safety and color-coded identification
• Rated for 600 volts maximum and 105°C maximum temperature
• Made in the USA
