Copper Terminal, 1 Hole, 14 AWG (Sol)-4 AWG (Str), 1/4" Stud, 1 Screw
SKU: #331466
Part: #KA4C
UPC: 781810361405
Copper Terminal, 1 Hole, 14 AWG (Sol)-4 AWG (Str), 1/4" Stud, 1 Screw
SKU: #331466
Part: #KA4C
UPC: 781810361405
Next day delivery
Description

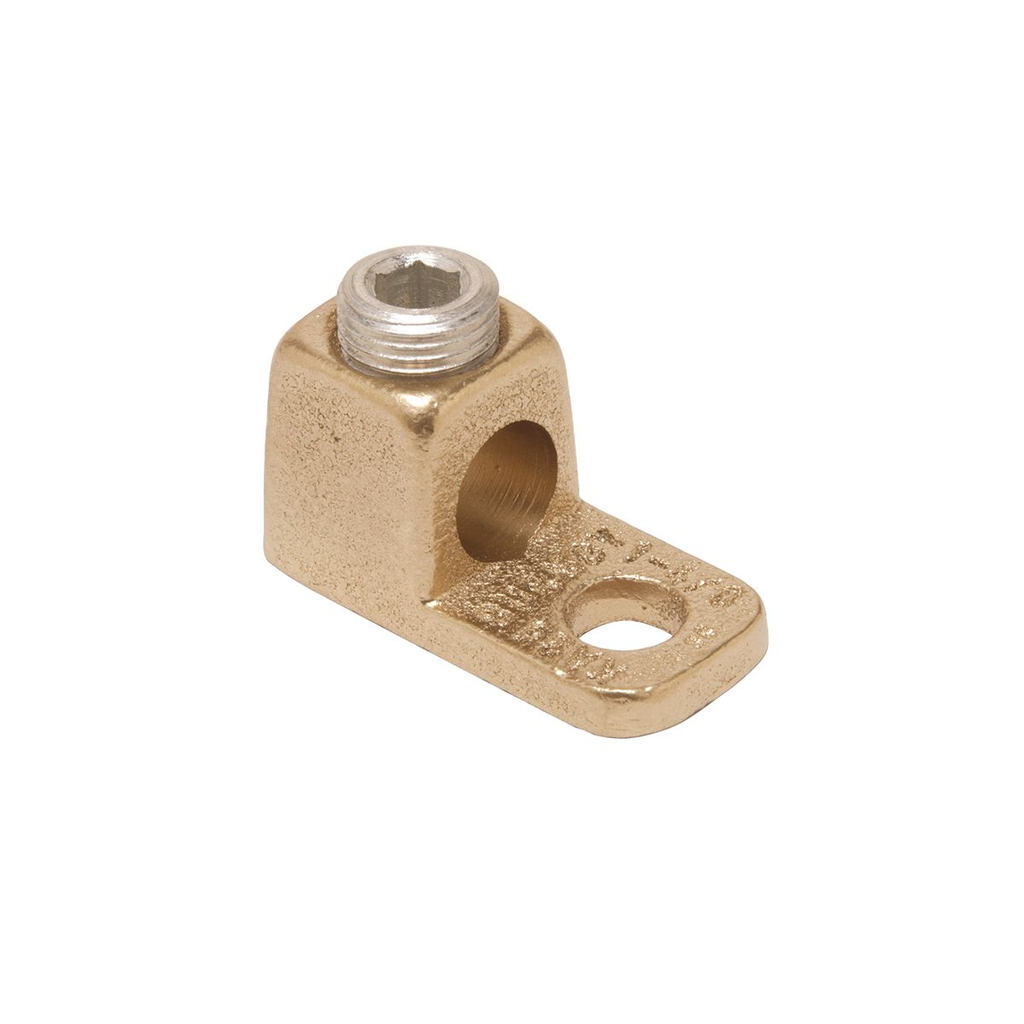

Copper Terminal, 1 Hole, 14 AWG (Sol)-4 AWG (Str), 1/4" Stud, 1 Screw – Electrical Terminal Connector
This copper terminal is designed for joining a wide range of copper cables to equipment pads or terminal blocks, making it suitable for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers. It accommodates copper conductors from 14 AWG solid to 4 AWG stranded wire, providing a reliable and durable connection point in electrical systems.
- Material: Copper
- Connection Type: Terminal
- Hole Size: 0.28 inches
- Width: 0.54 in
- Accommodates Copper Cable: #14 AWG Solid to #4 AWG Stranded
- Stud Size: 1/4" (5/16"-24 UNF screw thread)
- Product Weight: 0.0300 lbs
- Manufacturer: Burndy
- Manufacturer Part Number: KA4C
- Country of Origin: India
Specifications
- Single-hole design for straightforward installation
- Compatible with a range of copper wire sizes for versatile use
- Solid copper construction ensures excellent conductivity and corrosion resistance
- Includes one screw for secure cable termination
- Compact dimensions allow use in tight spaces within switchgear and electrical panels
