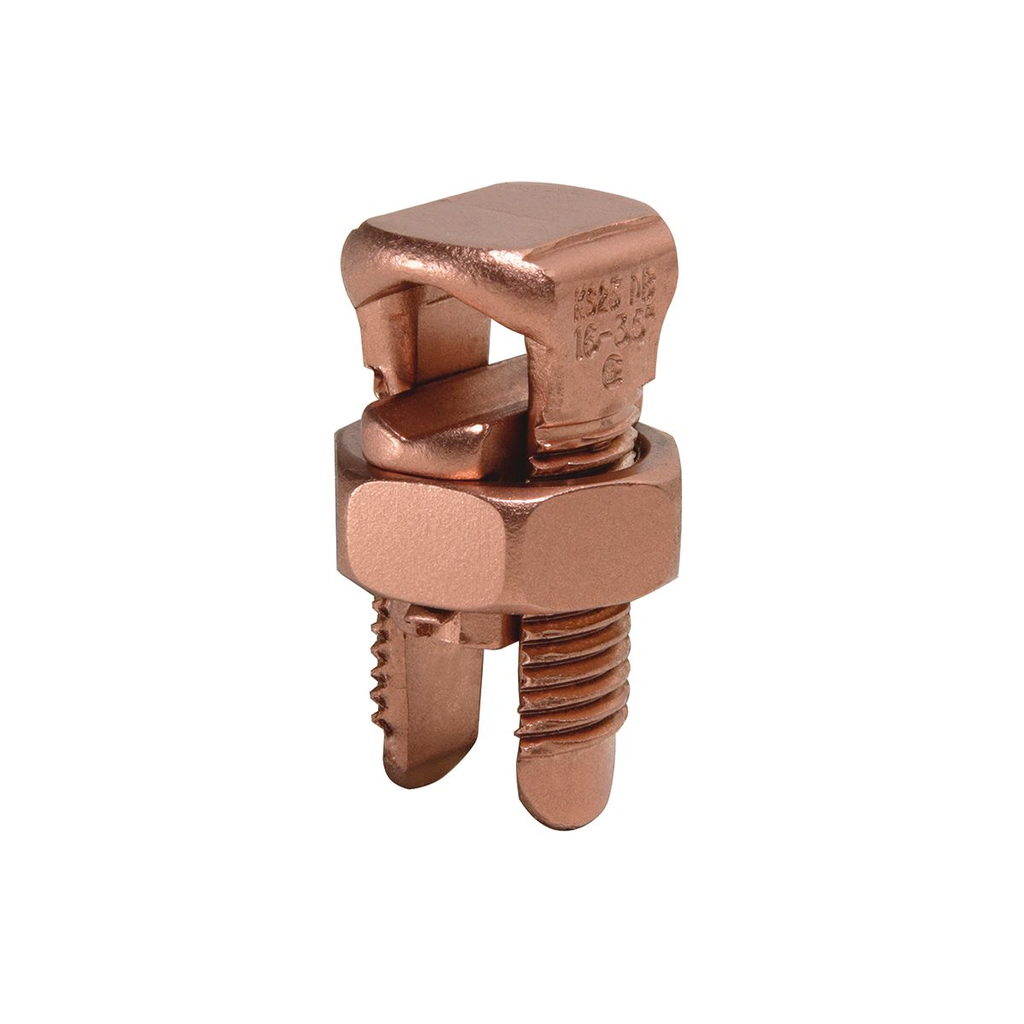

Copper Split Bolt, Cu: 6 AWG-2 AWG (Str) (Run & Tap)
SKU: #331590
Part: #KS23
UPC: 781810012758
Copper Split Bolt, Cu: 6 AWG-2 AWG (Str) (Run & Tap)
SKU: #331590
Part: #KS23
UPC: 781810012758
Description
Copper Split Bolt, Cu: 6 AWG-2 AWG (Str) (Run & Tap) – Electrical Connector
This copper split bolt connector is designed for secure electrical connections in direct burial applications in earth or concrete. It is suitable for copper conductors ranging from 6 AWG to 2 AWG stranded wire for both run and tap configurations. Ideal for electrical distributors and switchgear suppliers, this product ensures reliable conductivity and mechanical strength in wire and cable installations.
Specifications
- Manufacturer: Burndy
- Manufacturer Part #: KS23
- Material: Copper
- Connection Type: Split Bolt
- Application: For Direct Burial Applications In Earth Or Concrete, Copper
- Width: 0.62 in (16 mm)
- Length Overall: 1.54 in (39 mm)
- Cross Flats: 0.82 in
- Recommended Installation Torque: 275 in-lb
- Conductor Range (Copper Stranded Run): 6 AWG - 2 AWG
- Conductor Range (Copper Stranded Tap): 14 AWG - 2 AWG
- UL Listed: Yes, for Direct Burial
- Country of Origin: United States
- Product Weight: 0.1100 lbs
- UPC: 781810012758
Features
- Compact, high-strength copper alloy construction
- Free-running threads with easy-to-grip wrench flats for installation
- Highly resistant to season cracking and corrosion
- Provides maximum pressure for secure connections on run and tap conductors
- UL listed for direct burial applications
- Made in USA
